CHAPTER 2 ENGINE 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
K25W257A

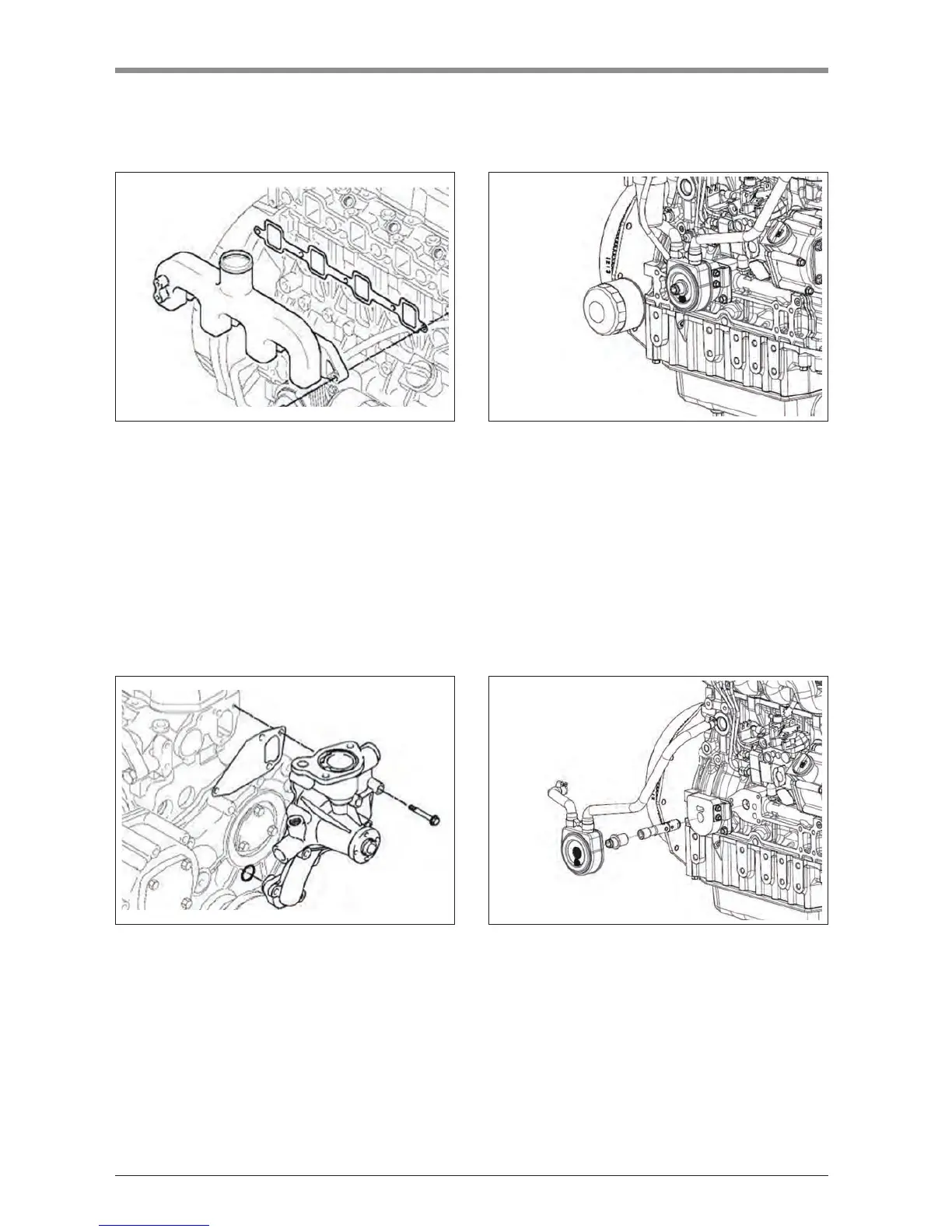

6.2.11 INTAKE MANIFOLD
Loosen the clamp that holds breather hose
connecting Intake manifold and cylinder head.
Loosen the bolts and nut that hold the intake
manifold.
Disassemble the intake manifold.
Disassemble the packing.
Do not re-use the packing.
1.
2.
3.
4.
5.
K25W258A
6.2.12 WATER PUMP
Loosen the bolts that hold the V-pulley.
Disassemble the V-pulley.
Loosen the bolts that hold the water pump.
Disassemble the water pump and packing.
Do not re-use the packing
1.
2.
3.
4.
5.
K25W259A
6.2.13 OIL FILTER
Disassemble the oil îš¿lter using by tool.1.
K25W260A
6.2.14 OIL COOLER
Loosen the clamps that hold the hoses.
Disassemble the hoses.
Disassemble the bolt that holds the oil cooler by
using tool.
Disassemble the oil cooler.
Loosen the bolts that hold cooler bracket
Disassemble the cooler bracket.
1.
2.
3.
4.
5.
6.
