CHAPTER 2 ENGINE3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
2

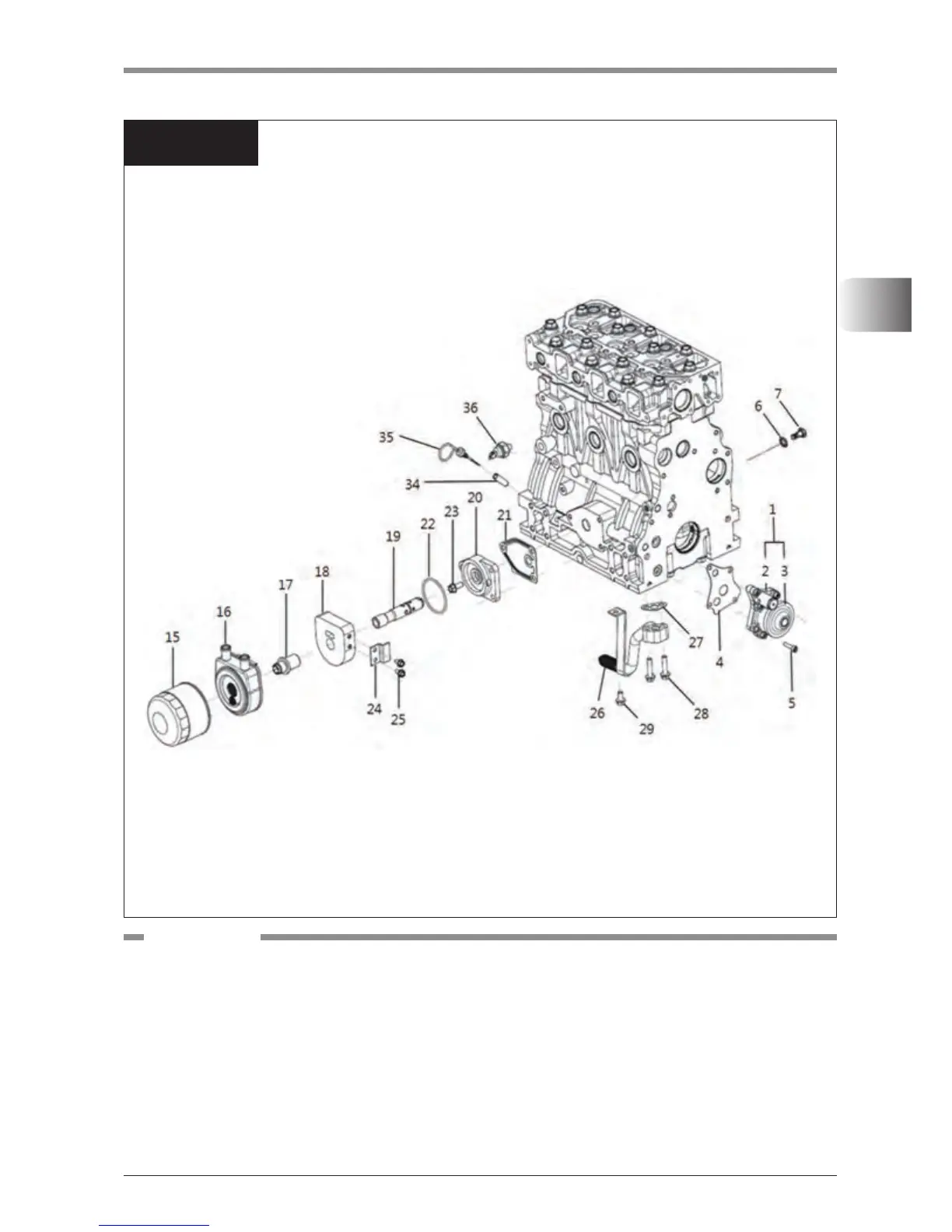

5.9 LUBRICATION SYSTEM
F42W209A
(1) Lub-oil pump ass’y
(2) Lub-oil pump
(3) Oil pump gear
(4) Packing, oil pump
(5) Bolt, M6 x L25
(6) Washer,sealing
(7) Screw,hexagon head cap
(15) Oil îš¿lter
(16) Oil cooler
(17) Bolt, oil cooler
(18) Space, oil cooler
(19) Oil pressure control valve
(20) Bracket, oil îš¿lter
(21) Packing, oil îš¿lter
(22) O-ring
(23) Flange bolt, M8 x L20
(24) Bracket, oil cooler
(25) Flange bolt, M6 × L12
(26) Oil suction pipe
(27) Packing, oil suction pipe
(28) Flange bolt, M8 x L35
(29) Flange bolt, M8 x L16
(34) Guide, dipstick
(36) Dipstick
(37) Oil pressure switch
