CHAPTER 1 GENERAL INFORMATION 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

ITEM SPECIFICATION DESCRIPTION
Fuse 1 5 A Panel
Fuse 2 20 A Brake lamp
Fuse 3 5 A Battery charge
Fuse 4 5 A Glow/Heat
Fuse 5 5 A
Fuel pump
[MEC.MODEL]
Fuel pump, Stop solenoid
[HSTMODEL]
Fuse 6 20 A Spare
Fuse 7 10 A Spare
Fuse 8 5 A Spare
Fuse 9 20 A Head lamp
Fuse 10 20 A Turn signal lamp
Fuse 11 10 A Hazard lamp
Fuse 12 10 A PTO
Fuse 13 10 A
Stop solenoid
[MEC.MODEL]
Cruise[HSTMODEL]
Fuse 14 5 A DPF[3015R/3515R/4015R]
A fuse is to protect circuits from electric overload.
The relay control current is high load current
whichowsthroughacircuit.
To prevent damage to the electric system, never
use a fuse with higher capacity than the one
already installed.
1.
2.
3.

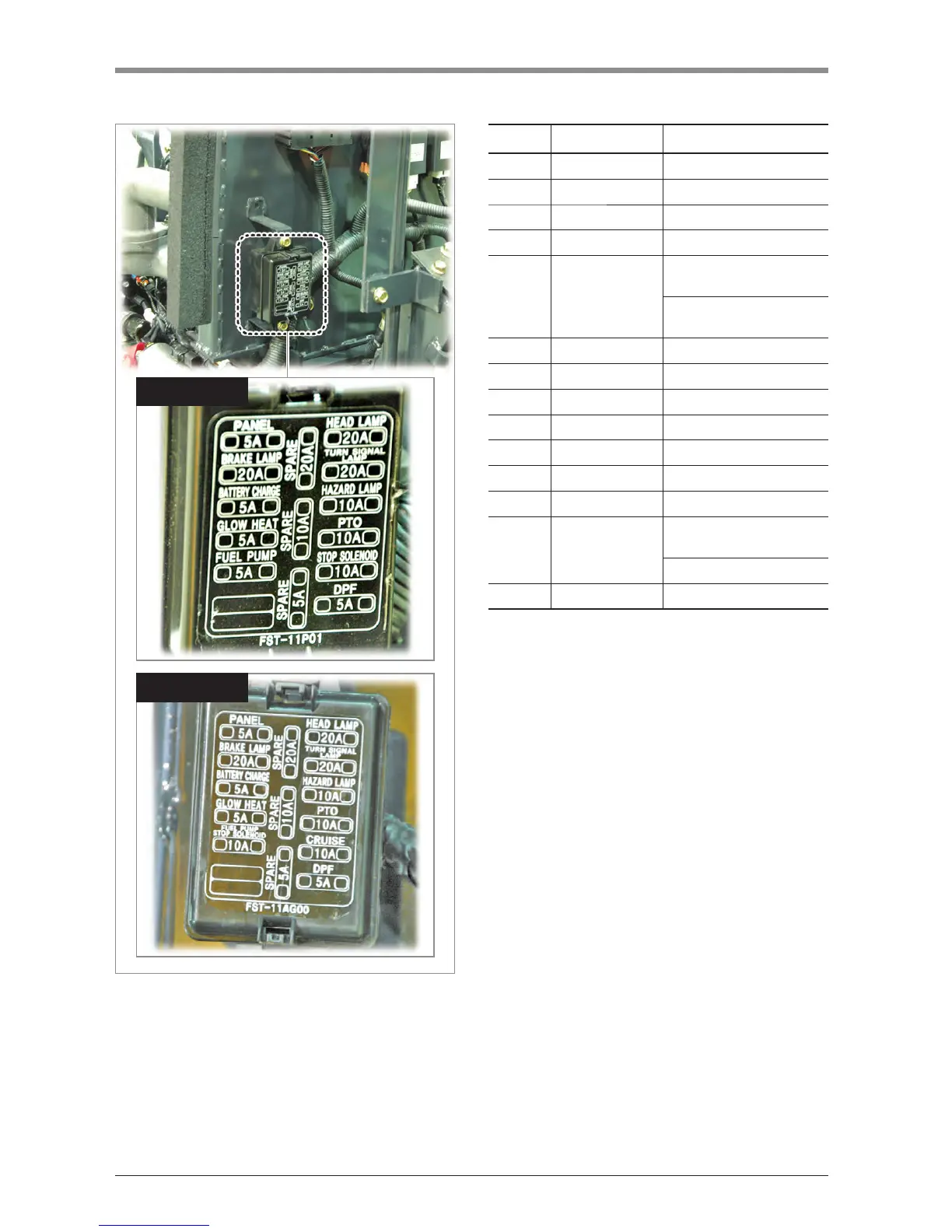

F42W147A
F42W148A
A42W107A
MEC. MODEL
HST MODEL
