CHAPTER 2 ENGINE3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
2

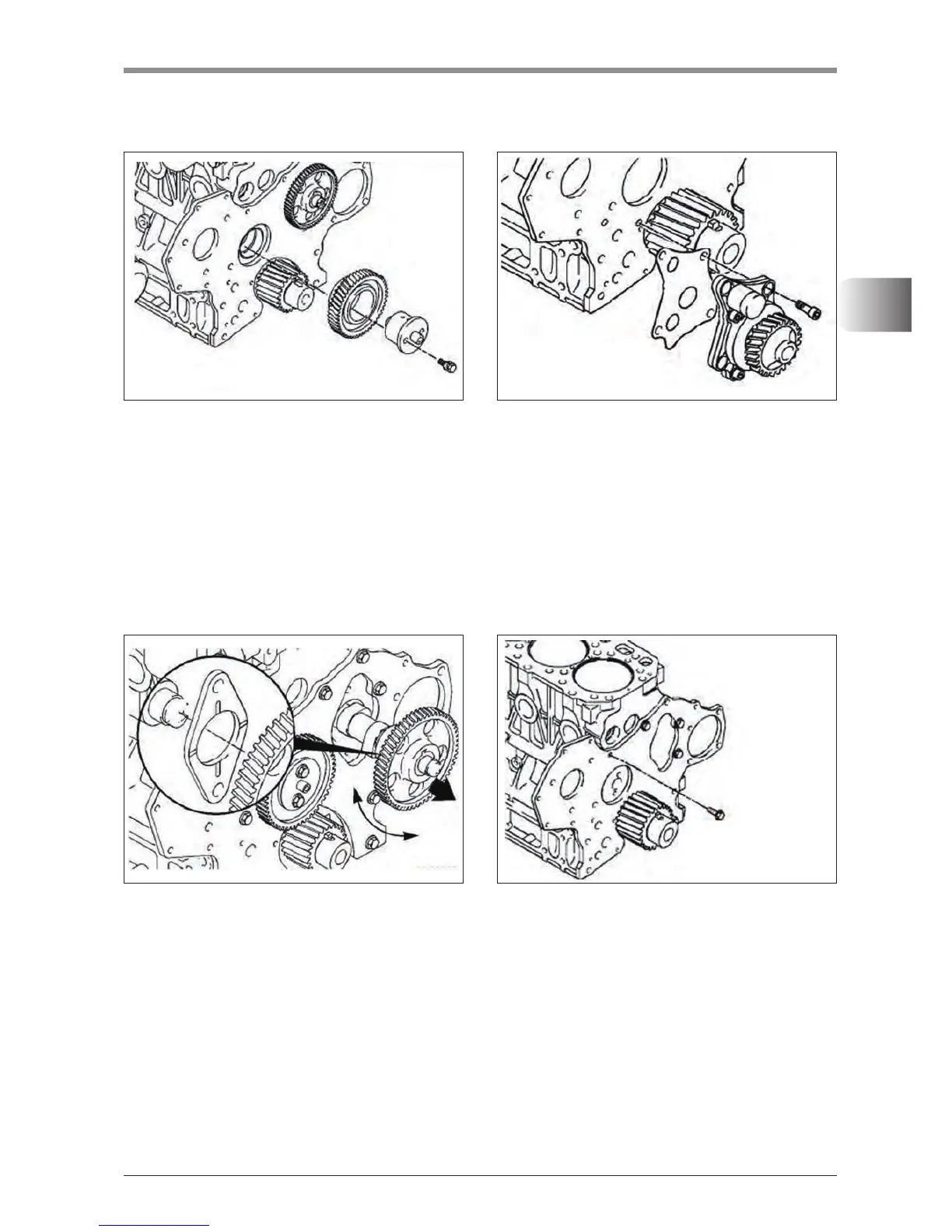

6.2.29 IDLE SHAFT AND IDLE GEAR
K25W278A
Loosen the bolts that hold idle shaft and idle
gear.
Disassemble the idle shaft and idle gear.
1.
2.
K25W279A
6.2.30 CAM SHAFT ASSEMBLY
Loosen the bolts that hold the cam shaft.
Disassemble the cam shaft with turning it.
Cam shaft will be damaged if forcibly disassemble.
1.
2.
3.
6.2.31 OIL PUMP
K25W280A
Loosen the bolts using by hexagon wrench.
Disassemble the oil pump.
Do not re-use the O-ring and packing.
1.
2.
3.
K25W281A
6.2.32 GEAR CASE FLANGE
Loosen the bolts that hold the gear case ange.
Disassemble the gear case ange.
1.
2.
