42hW-201601
1
-
13
CHAPTER 1 GENERAL INFORMATION3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
1
3.4 USING STANDARD PART AND ADHESIVE
When replacing a worn or damaged part, use a
new part that meets the international standard.
When replacing a packing or O-ring, fit a new
one. Before installation, apply grease to the
O-ring or oil seal ring.

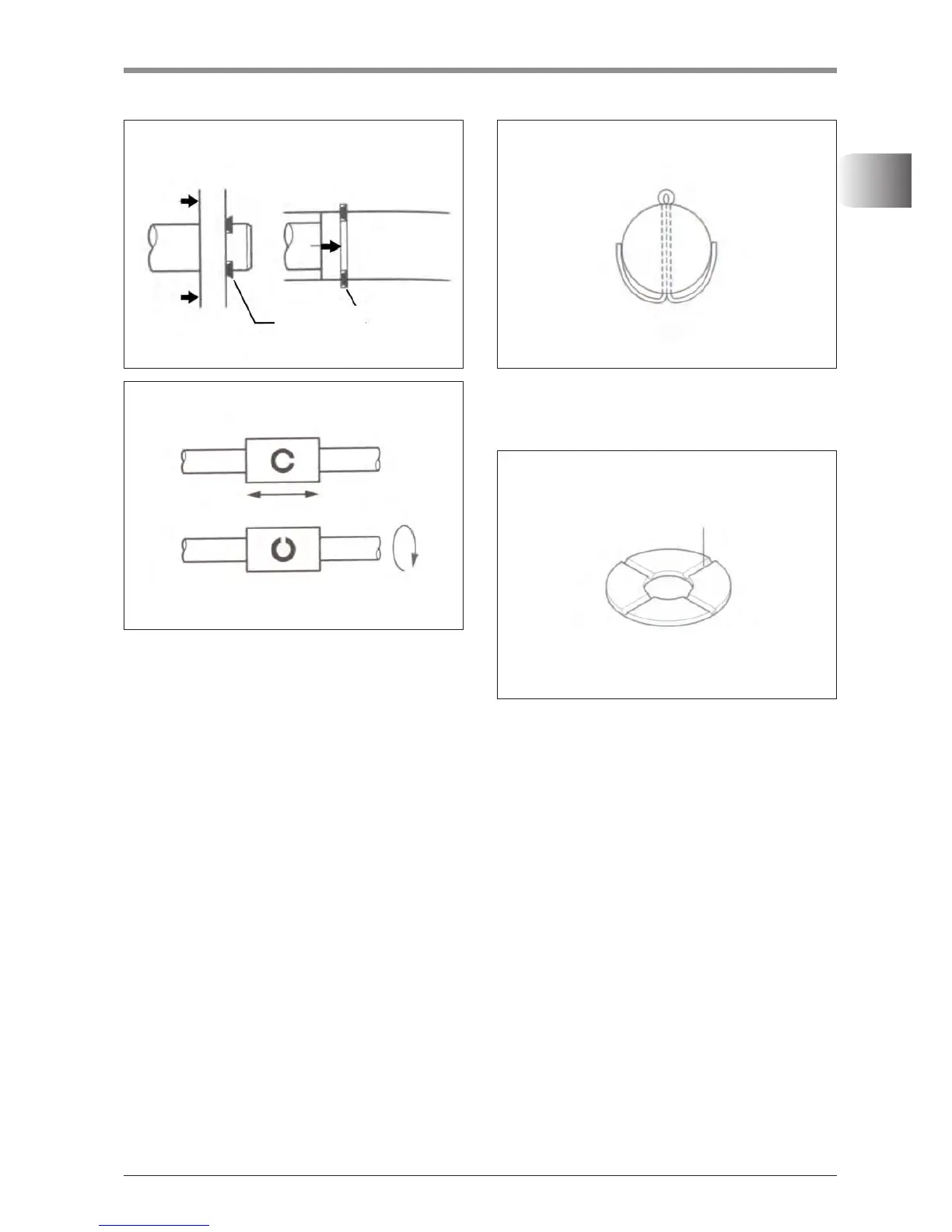

When assembling a snap ring on a shaft or in a
hole, ensure its sharply angled side to point the
directionofforceasshownintherstgure.
When installing a spring pin, insert its split
portion in the direction to be forced as described
inthesecondgureabove.
1.
2.
3.
4.
When the oil grooves are engaged with the
thrust washer, be careful with assembly.
6.
6015W114A
Replace the split pin with a new one and fix it
îš¿rmly.
5.
6015W115A
6015W116A
Oil groove
6015W113A
Snap ring for shaft
Snap ring for hole
Section applied
with force
