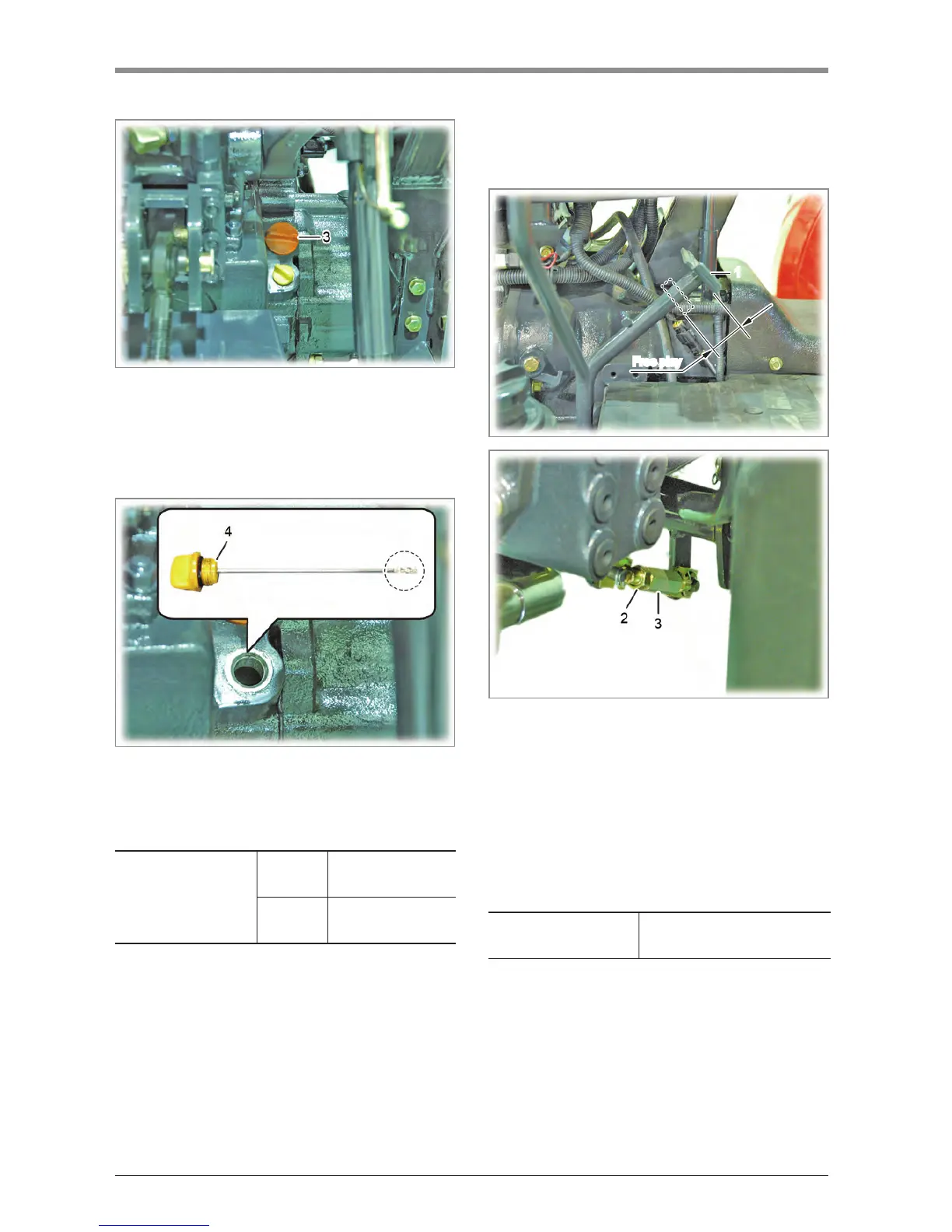

CHAPTER 1 GENERAL INFORMATION 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
8.2.13
î˜î˜¸î˜¶î˜·î˜¬î˜±î˜ªî˜ƒî˜¦î˜¯î˜¸î˜·î˜¦î˜«î˜ƒî˜³î˜¨î˜§î˜¤î˜¯î˜ƒî˜¾î˜°î˜¨î˜¦î˜‘
F42W126A
Wait for 10 to 15 minutes before checking the
oil level. The oil level should be on the mark on
thedipstick(4).Ifnot,addoiluptothespecied
upper limit.
9.
F42W125A
Add transmission fluid/hydraulic oil into the
transmissioncasethroughitsllerhole(3).
Run the engine for a moment to activate the
hydraulic pressure function. Stop the engine.
7.
8.
TRANSMISSION

OIL AMOUNT
MEC.
MODEL
34ℓ (8.98 u.s.gal.)ℓ (8.98 u.s.gal.) (8.98 u.s.gal.)u.s.gal.))
HST
MODEL
37ℓ (9.77 u.s.gal.)ℓ (9.77 u.s.gal.) (9.77 u.s.gal.)u.s.gal.))
Check that the clutch pedal moves by itself when
depressing it slightly and releasing it.
F42W127A
F42W128A
Make sure that the machine is parked on level
ground.
Depress the clutch pedal (1) slightly and then
release it.
Check if the clutch pedal moves when released.
Unscrew the lock nut (2) of the clutch rod and
adjust the turn buckle (3) to adjust the free play.
Tighten the lock nut.
1.
2.
3.
4.
5.
CLUTCH PEDAL

25 - 35 mm (0.98 - 1.38 in.)
