CHAPTER 2 ENGINE 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
Carefully clean and arrange disassemble parts.
Check the tool box and jig.
Prepare and check the spare parts. (Gasket,
o-ring, packing, etc)
Clean the work place during assemble the
engine.
Assemble the engine according to work sheet
and order in this book.
Tightening torque of screws, bolts and nuts are
worked within the factory specification. And
check the drive part.
Check removed parts and spare par ts after
assembling.
•
•
•
•
•
•
•
6.4 THE ENGINE ASSEMBLY
6.4.1
CAUTION BEFORE ASSEMBLING THE ENGINE
Put down the cylinder block head plate used the
support on the work-bench.
6.4.2 CYLINDER BLOCK
6.4.3 CRANKSHAFT
ASSEMBLY PROCEDURE
K25W289A
K25W290A
K25W291A

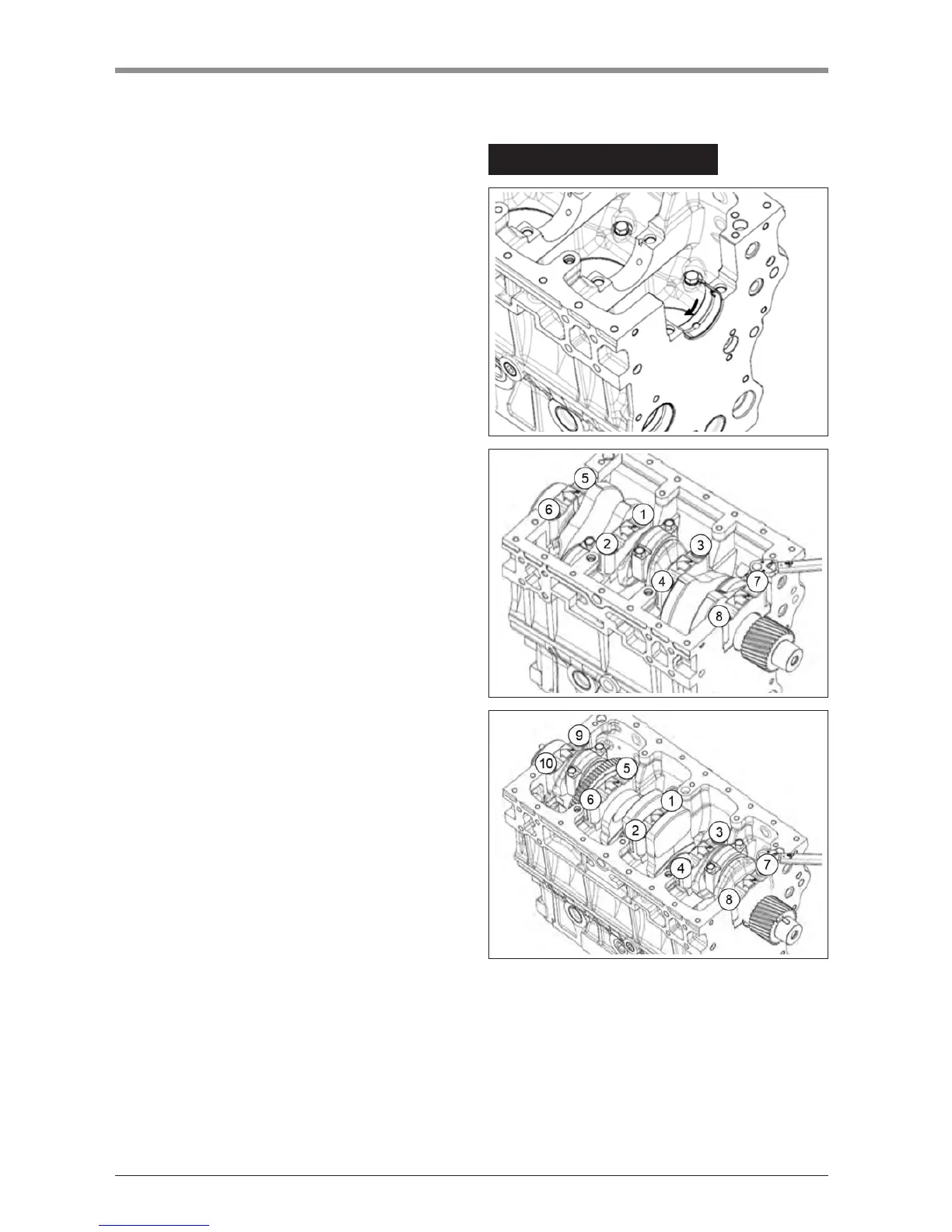

Cylinder block and bearing cap assemble with
the new main bearing. Oil hole of main bearing
assemble into the cylinder block.
Apply the lubricating oil on the crankshaf t
journal.
Put down the crankshaft on the cylinder block.
1.
2.
3.
To Next Page
