2
-
96
42hW-201601
CHAPTER 2 ENGINE 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

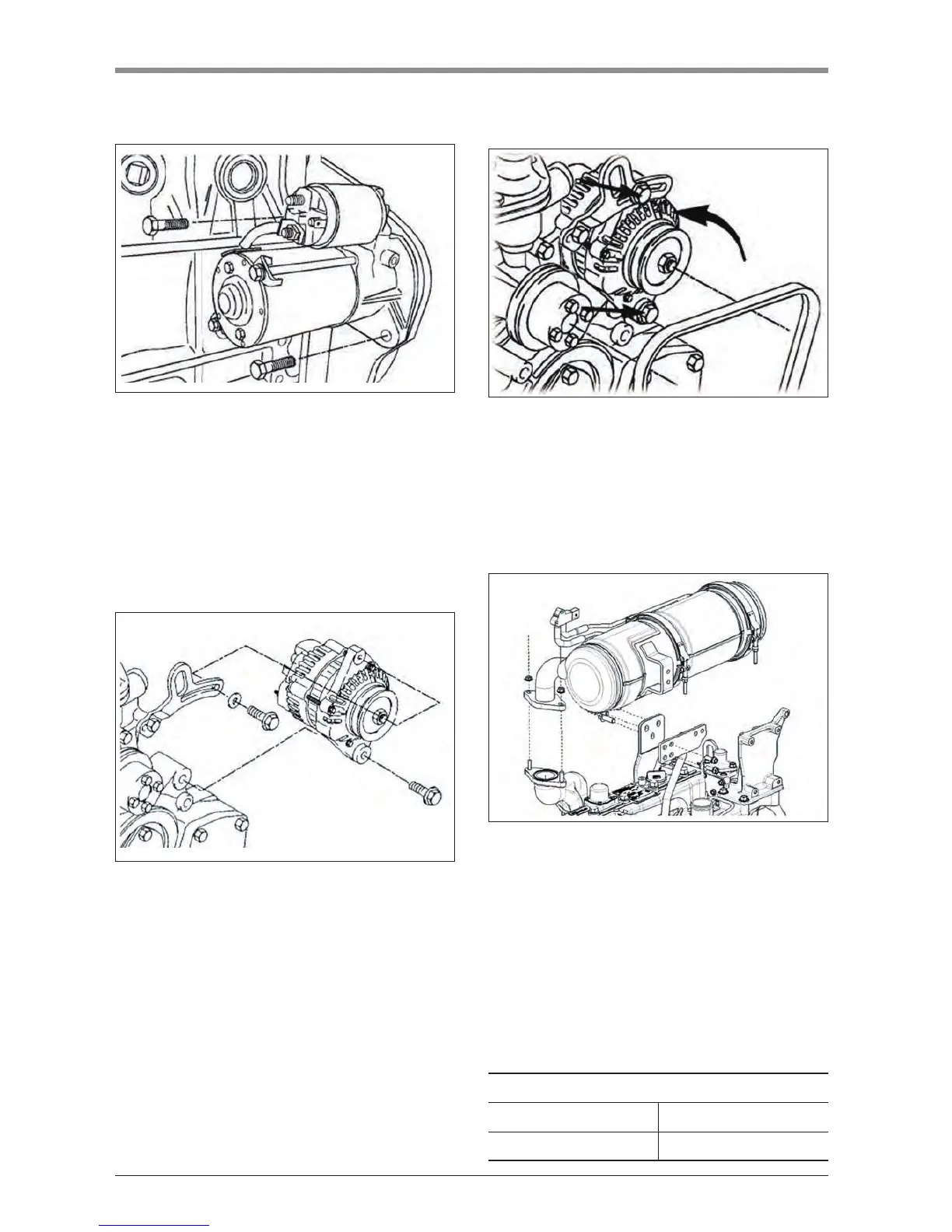

6.4.30 STARTER
Assemble the starter.
Tighten the bolts to hold starter.
1.
2.
6.4.31 ALTERNATOR
Assemble the alternator.
Tighten the lower side bolt with washers tentatively.
Tighten the clamping bolt and washer that hold the
upper side of alternator tentatively.
The bolts that hold alternator are re-tightened after
adjusting the tension of V-belt.
1.
2.
3.
4.
K25W251A
K25W271A
6.4.32 V-BELT
Adjust the tension of alternator after that tighten
the adjust bolt and bolts.
1.
6.4.33 AFTER-TREATMENT DEVICE (ATD)
Assemble ATD.
Tighten the bolt s to ho ld the ATD. ( W hen
assembling the ATD, should be careful because
ATD is heavy.)
1.
2.
K25W250A
K25W252A
6.4.34 LUBRICATING SYSTEM
Supply the lubricating oil. (15W-40 CJ-4 or CG-4)
Check the mark of oil level gauge. (mark “F”)
1.
2.
OIL CAPACITY (LITER)
ENGINE MODEL LUBRICATING OIL
A1700 4.3
[3015R(h)/3515R(h)/4015R(h)]
To Next Page
