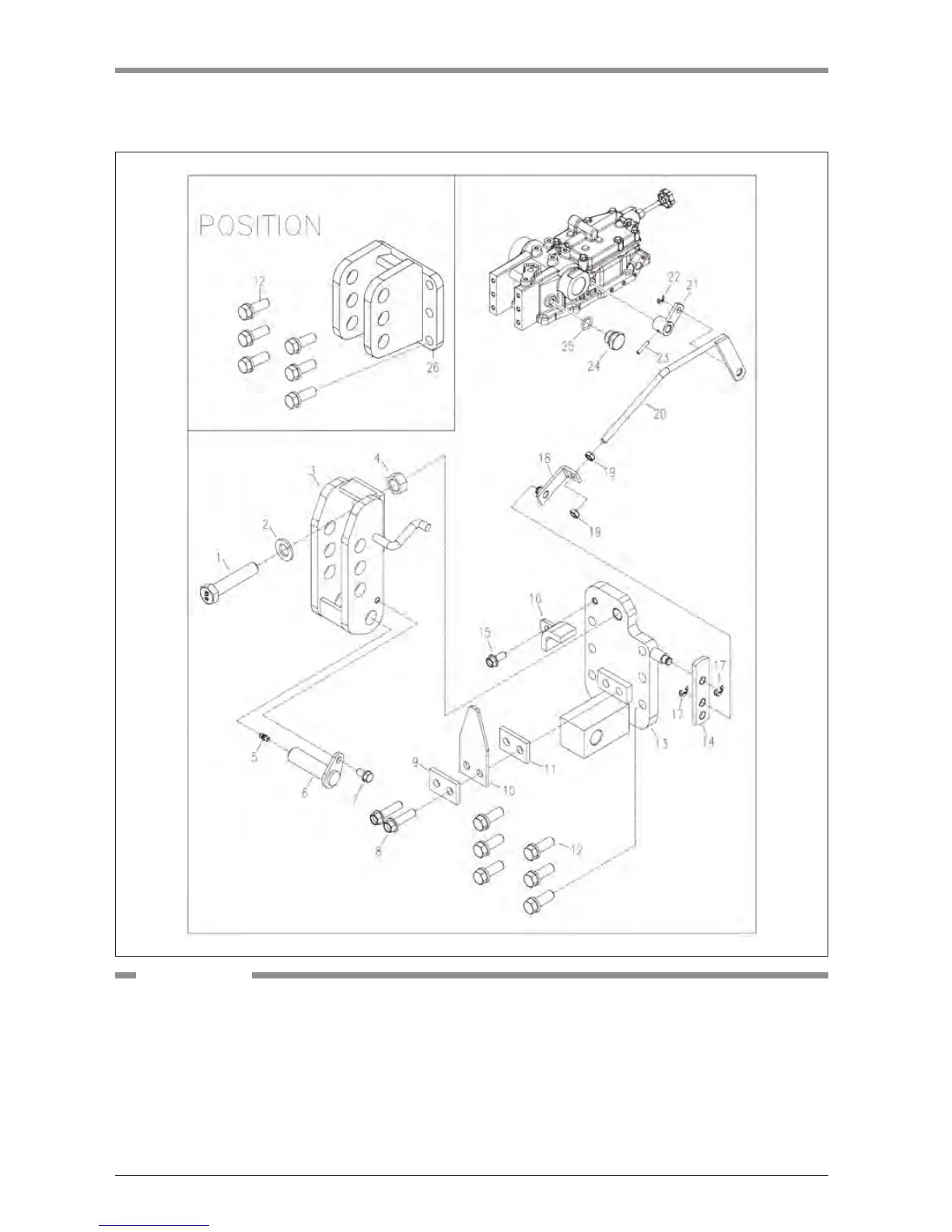

CHAPTER 6 HYDRAULIC SYSTEM 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
6.11 DRAFT CONTROL
K25W616A
(1) Hex bolt
(2) Washer
(3) Hinge D, top link
(4) Hex nut
(5) Nipple
(6) Pin, hinge
(7) Bolt w/washer
 (8)Hexangebolt
(9) Plate
(10) Plate, hinge
(11) Plate
(12) Bolt w/washer
(13) Support D, hinge
(14) Plate
 (15)Hexangebolt
(16) Plate ass’y
(17) Snap ring(E)
(18) Plate ass’y
 (19)Hexxnut
(20) Rod
(21) Link ass’y(out)
(22) Snap ring(E)
(23) Spring pin
(24) Body
(25) O-ring
(26) Hinge, top link
