CHAPTER 2 ENGINE 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
6.6 ENGINE IMPORTANT PARTS MAINTENANCE
6.6.1 FUEL INJECTION PUMP
Injection pump is distributor injection type (VE) mounted on the gear case ange and driven by injection pump gear. The
fuel is supplied in each cylinder by one plunger rotation and reciprocating motion. The fuel is sucked from fuel tank by
external feed pump and internal feed pump. And then fuel send to injection pump through fuel lter. Low-pressure fuel
sucks in pump chamber and is controlled by regulating valve. The fuel enter high pressure chamber through barrel suction
port via injection pump head path from pump chamber. High-pressured fuel made by plunger inject through injection valve
according to injection timing. Excessive fuel in injection pump returns fuel tank through fuel return hose via over ow valve.
The injection pump is cooled and lubricated by the fuel circulation. Remaining fuel also returns fuel tank
through over flow hose after collecting in the injection pump. Water in the fuel reduces pump useful life.
Therefore must manage not to enter water, dirt into the fuel system.

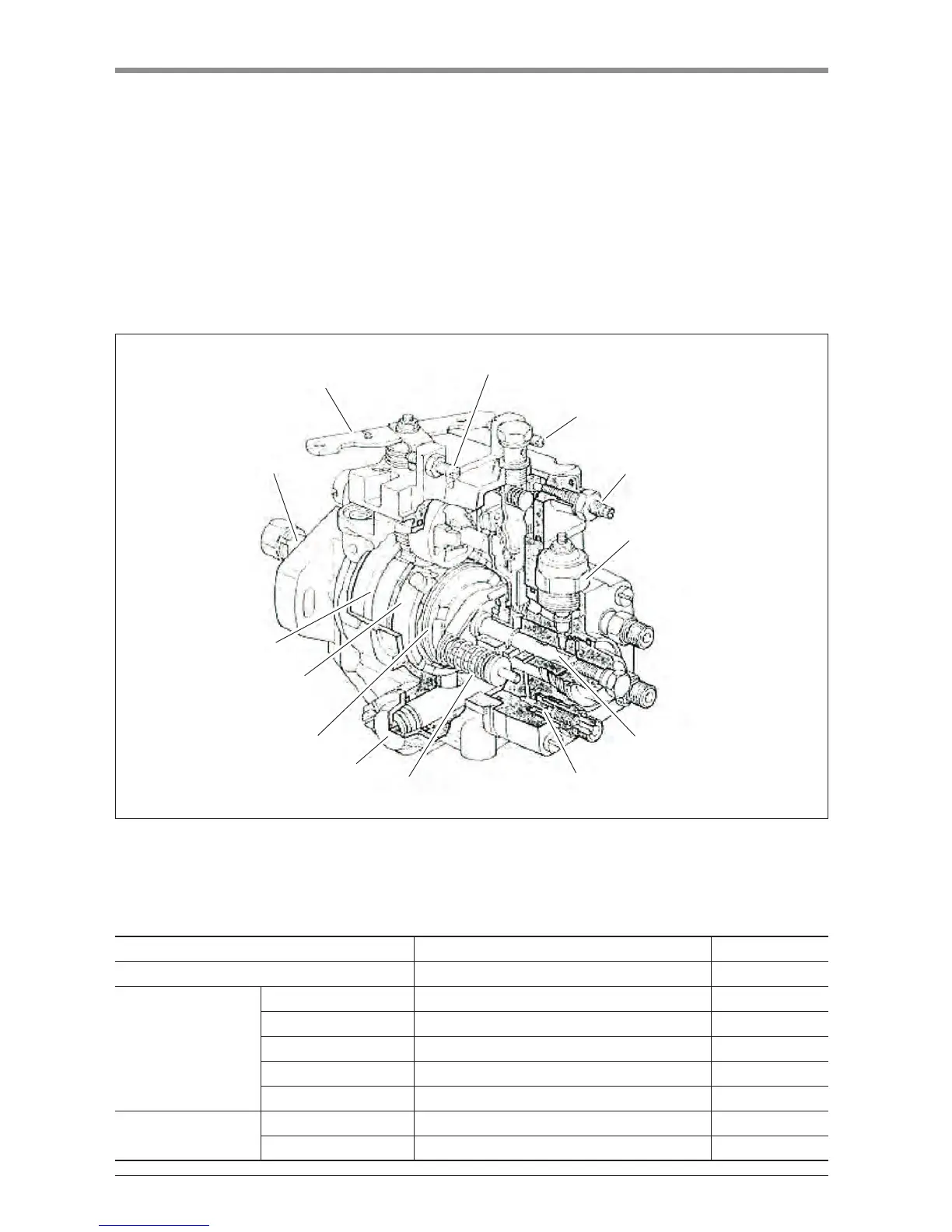

7
9
10
11
12
13
3
4
5
6
1
2
8
K25W2A09A
(1) Control lever
(2) Drive shaft
(3) Feed pump
(4) Roller holder
(5) Cam disk
(6) Timer
(7) Plunger spring
(8) High speed control bolt
(9) Low speed control bolt
(10) Full-load adjusting screw
(11) Fuel cut solenoid
(12) Plunger
(13) Delivery valve
ITEM SPECIFICATION REMARK
Type of Fuel lter Cartridge element type
Injection pump
Type VE Type (Distributor Type)
Direction of rotation Right (driving shaft to the right in)
Sequence of injection 1-3-2 (3Cyl.)
Type of governor All Speed
Fuel cut solenoid 12V / 8Ω
Injection valve
Type of nozzle Semi-Throttle Type
Type of holder Screw insertion type
SPECIFICATION
▶
