CHAPTER 3 CLUTCH
3
-
4
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
42hW-201601

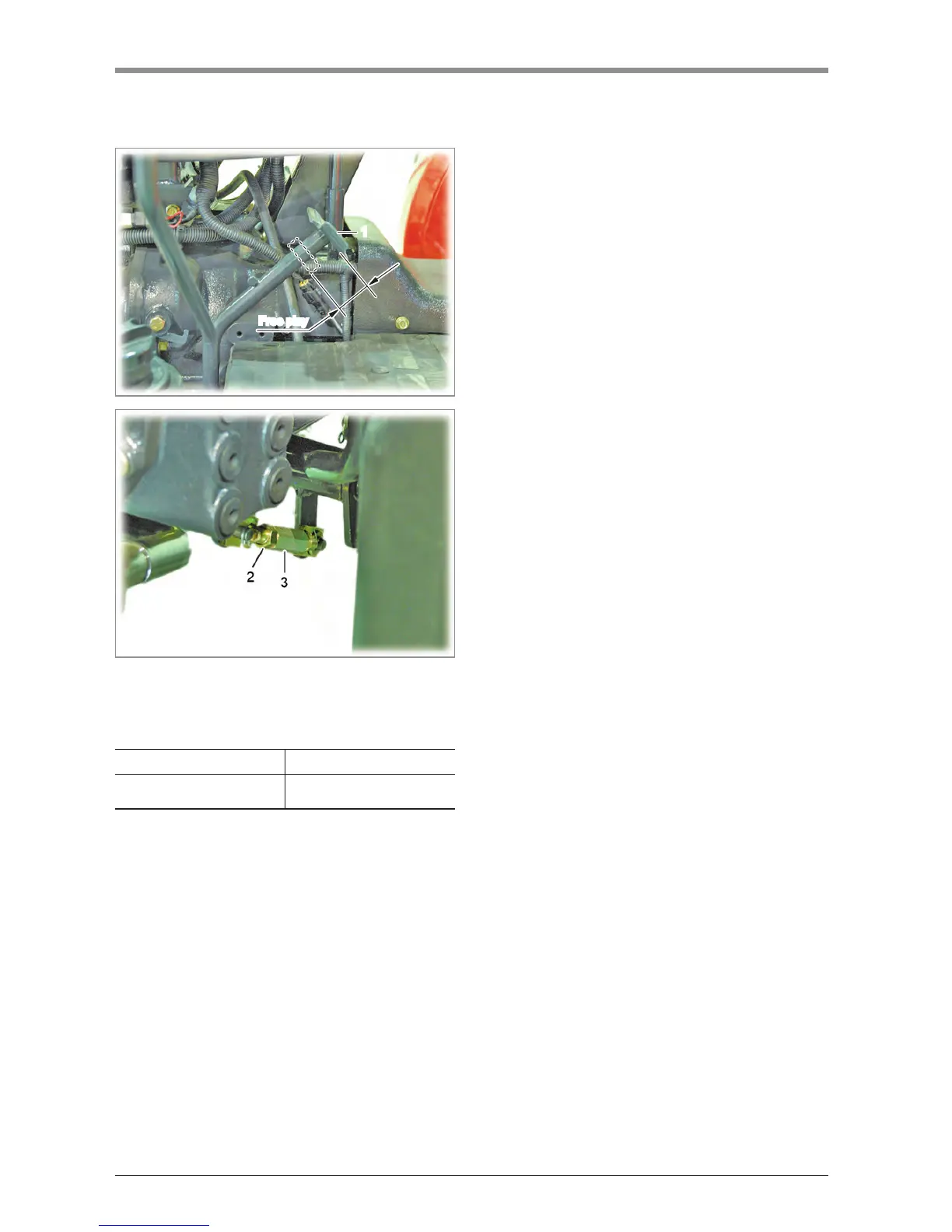

Depress the clutch pedal (1) slightly. Then,
release it.
Measure its free play.
1.
2.
ITEM STANDARD
Clutch pedal free play
25 - 35 mm
(0.98 - 1.38 in)
1.3 CLUTCH PEDAL PLAY ADJUSTMENT
If the free play is out of the specification,
unscrew the mounting nut (2) of the clutch rod
and turn the turn buckle (3) to adjust the free
play. Then, tighten the mounting nut.
3.
)UHHSOD\
1
F42W127A
F42W128A
