6
-
53
42hW-201601
CHAPTER 6 HYDRAULIC SYSTEM
6
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

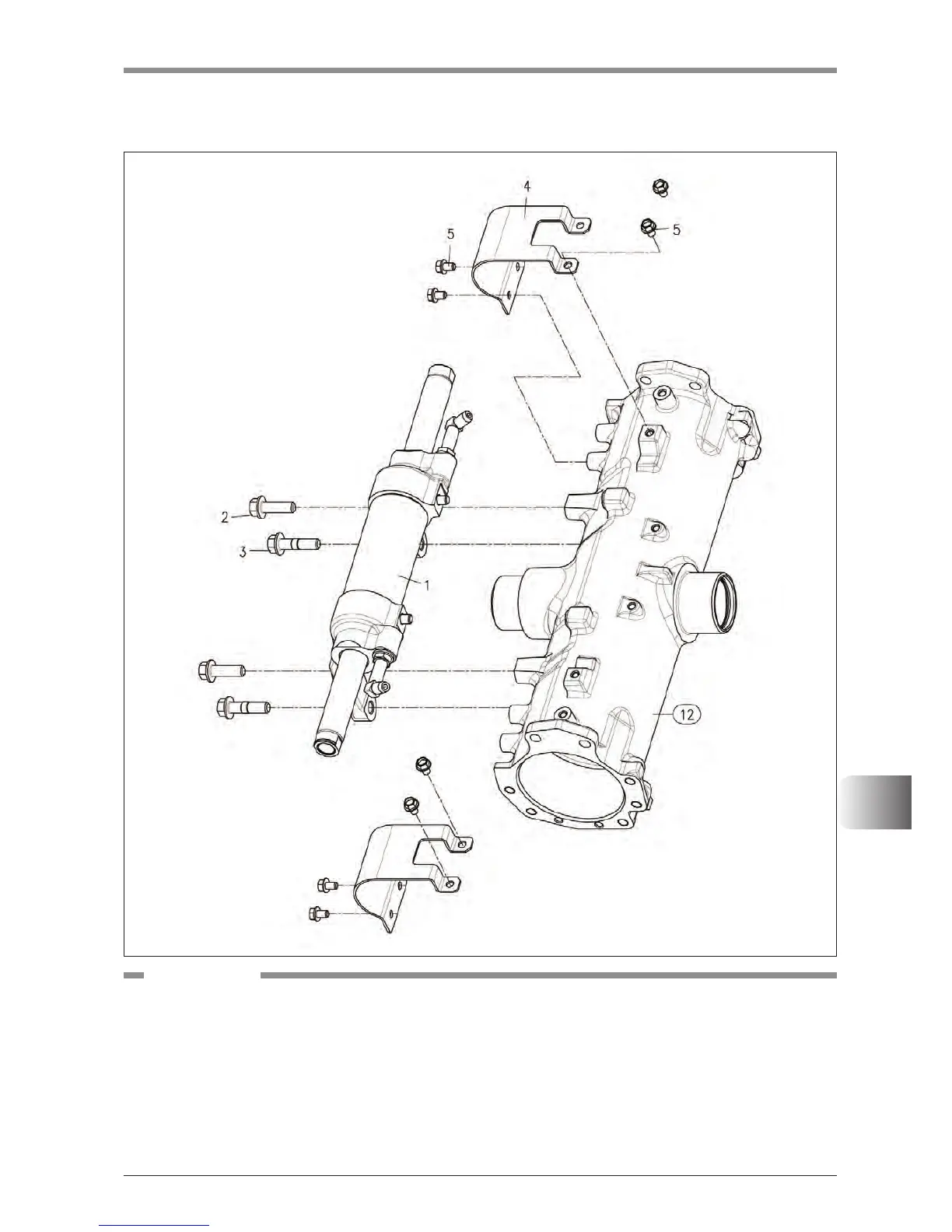

6.2 P.S.T CYLINDER
K25W606A
(1) P.S.T cylinder ass’y
(2)Hexangebolt
(3)Hexangebolt
(4) Cover, P.S.T cylinder
(5)Hexangebolt
COMPONENTS
