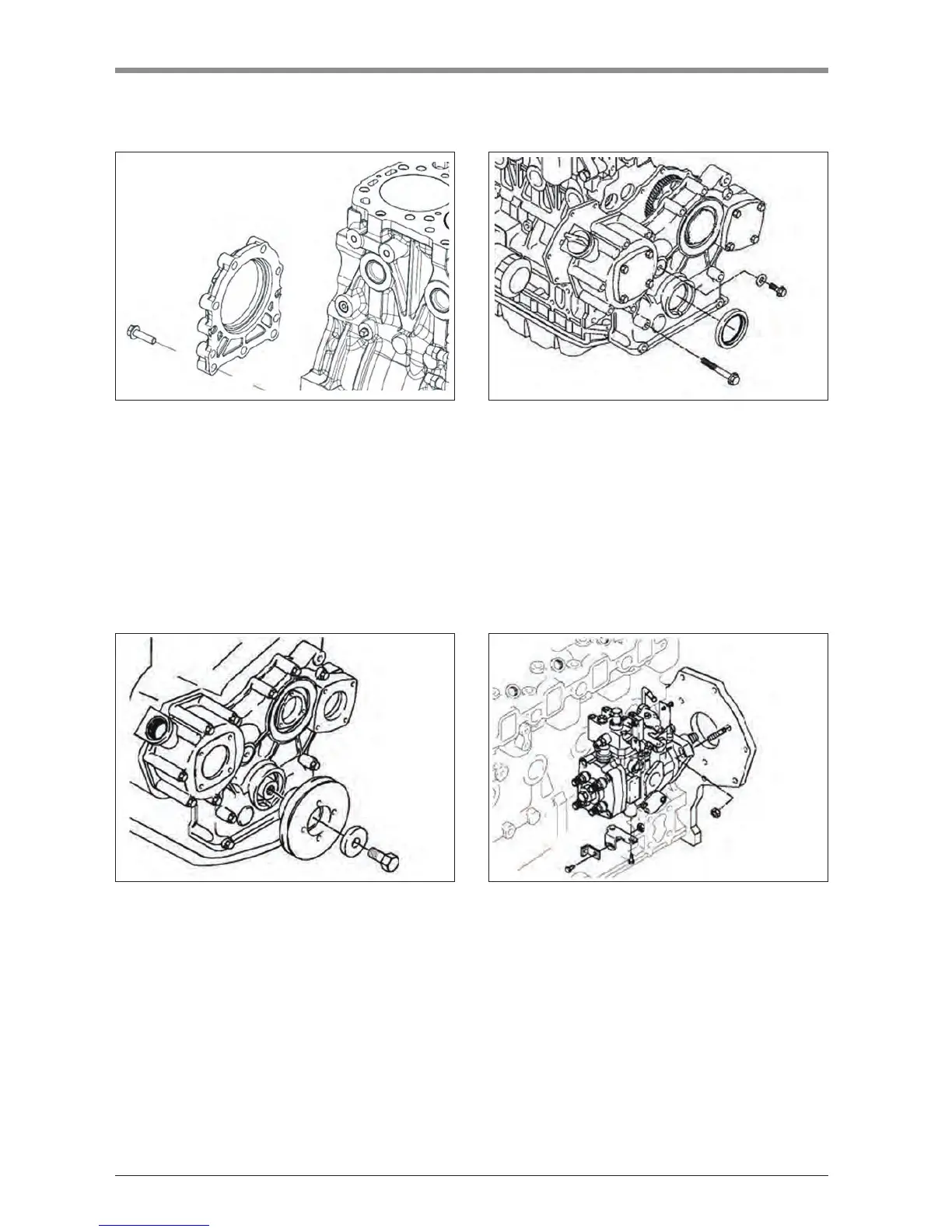

6.2.25 OIL SEAL HOUSING
K25W274A
Loosen the 9 clamping bolts.
Disassemble the oil seal housing.
Clean the liquid packing on oil seal housing.
1.
2.
3.
K25W275A
6.2.26 CRANK PULLEY
Loosen the bolt that holds the crank pulley.
Disassemble the crank pulley.
1.
2.
6.2.27 GEAR CASE
K25W276A
Loosen the bolts that hold the gear case.
Disassemble the gear case.
Clean the liquid packing on gear case ange and
gear case.
1.
2.
3.
K25W277A
6.2.28 FUEL INJECTION PUMP
Loosen the bolt that holds the fuel injection pump gear.
Disassemble the fuel injection pump gear.
Loosen the bolts that hold support bracket.
Disassemble the support bracket.
Loosen the bolts that hold the fuel injection pump.
Disassemble the fuel injection pump.
1.
2.
3.
4.
5.
6.
