CHAPTER 7 ELECTRIC SYSTEM 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
5.1.3 ELECTRIC WIRING
loose.
Never attempt to modify electric wirings of the ma-
chine. It can cause a fire.
WARNING
INSPECTION ORDER FOR ELECTRIC SYS-
TEM AND CIRCUIT FAILURE
Battery → Fusible link → Fuse → Ignition relay →
Switch → Load
▶
Notes

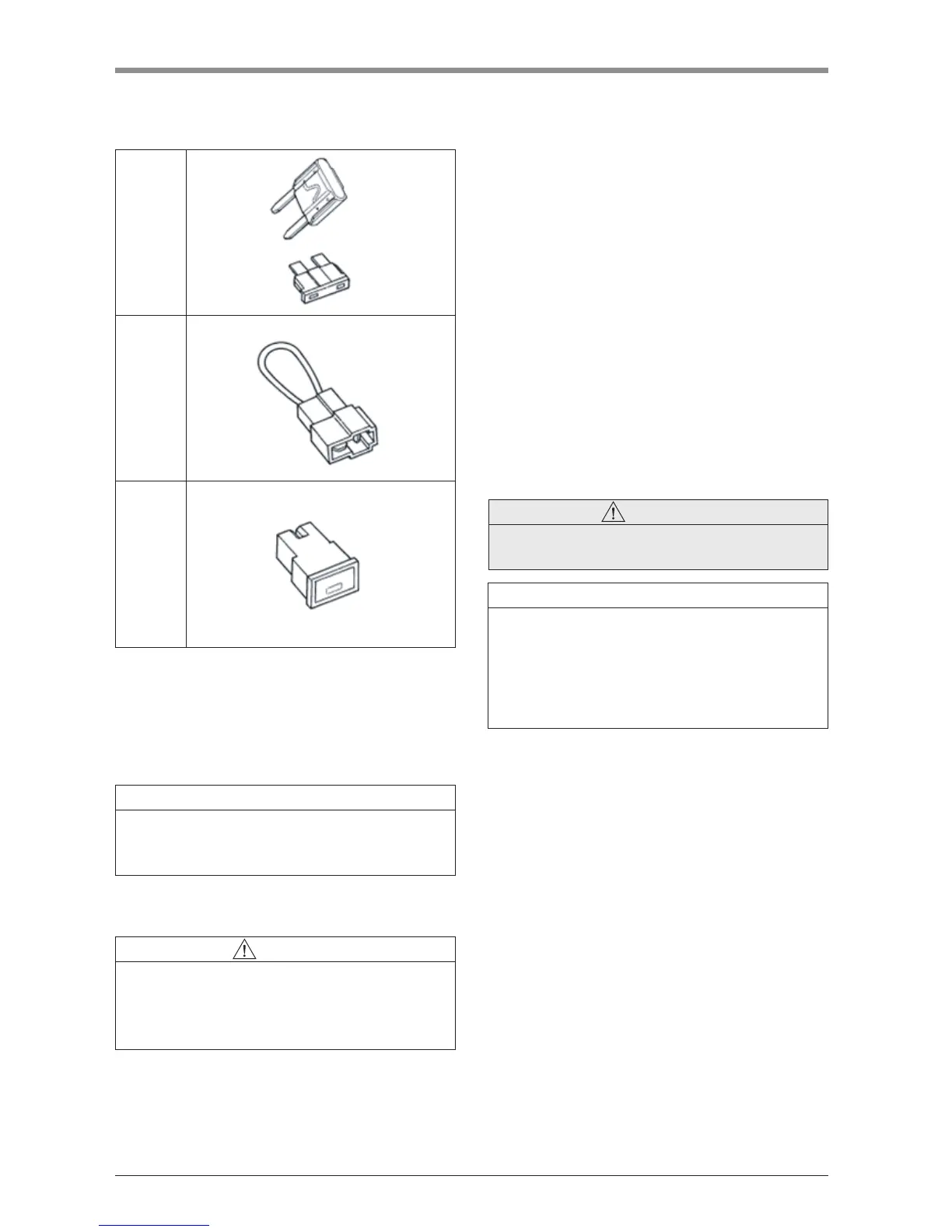

5.1.2 FUSE
FUSE
FUSIBLE
LINK
SLOW-
BLOW
FUSE
6015W702A
6015W703A
6015W704A
When continuity is detected by touching both terminals
with a tester, it is normal. If continuity is not detected,
replace the part with a new one.
Notes
Do not replace the fuse with other metal wires or alumi-
num foil. It can lead to electric shock and fire.
If the nut of the slow-blow fuse is not tightened firmly,
it can cause a fire. Make sure to tighten it firmly.
CAUTION
