CHAPTER 4 TRANSMISSION 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
K42W4B9A K42W480A
K42W481A

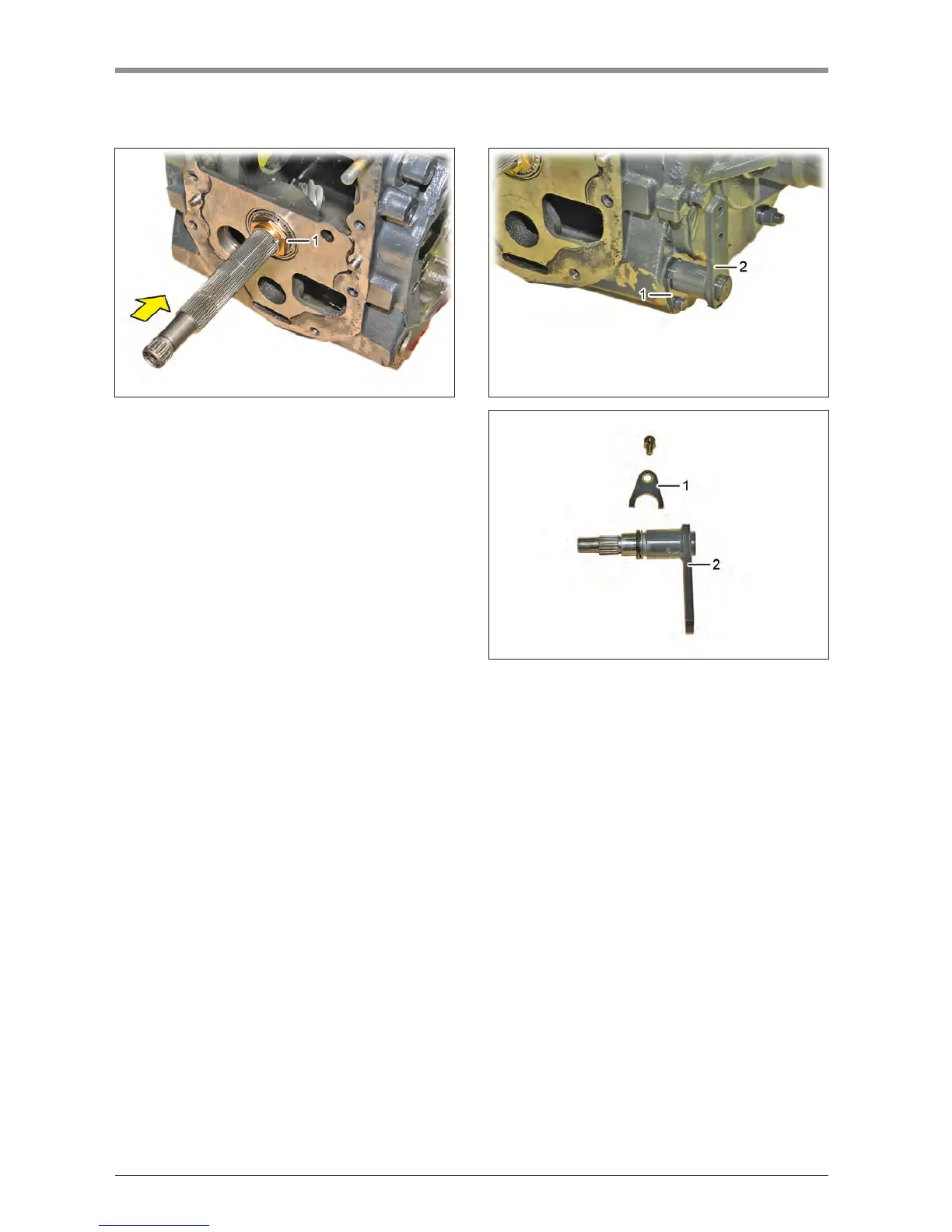

10.Unfold the caulking part of the counter shaft
mountingnuts(1)tounscrewthemountingnuts.
Then, removethe countershaft inthe rearaxle
case by tapping outside direction. (Removethe
differentialsystemassemblyrst)
Mounting nut
tightening torque ................ 78.4 ~ 98 N.m
8 ~ 10 kgf.m
57.6 ~ 72 lb.ft
5.4.1 REAR AXLE DRIVE SECTION DISASSEMBLY
1. Removethebrakeleverplate(1)andbrakelever(2).
