CHAPTER 4 TRANSMISSION

3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

K42W475A

K42W476A

K42W477A

K42W479A

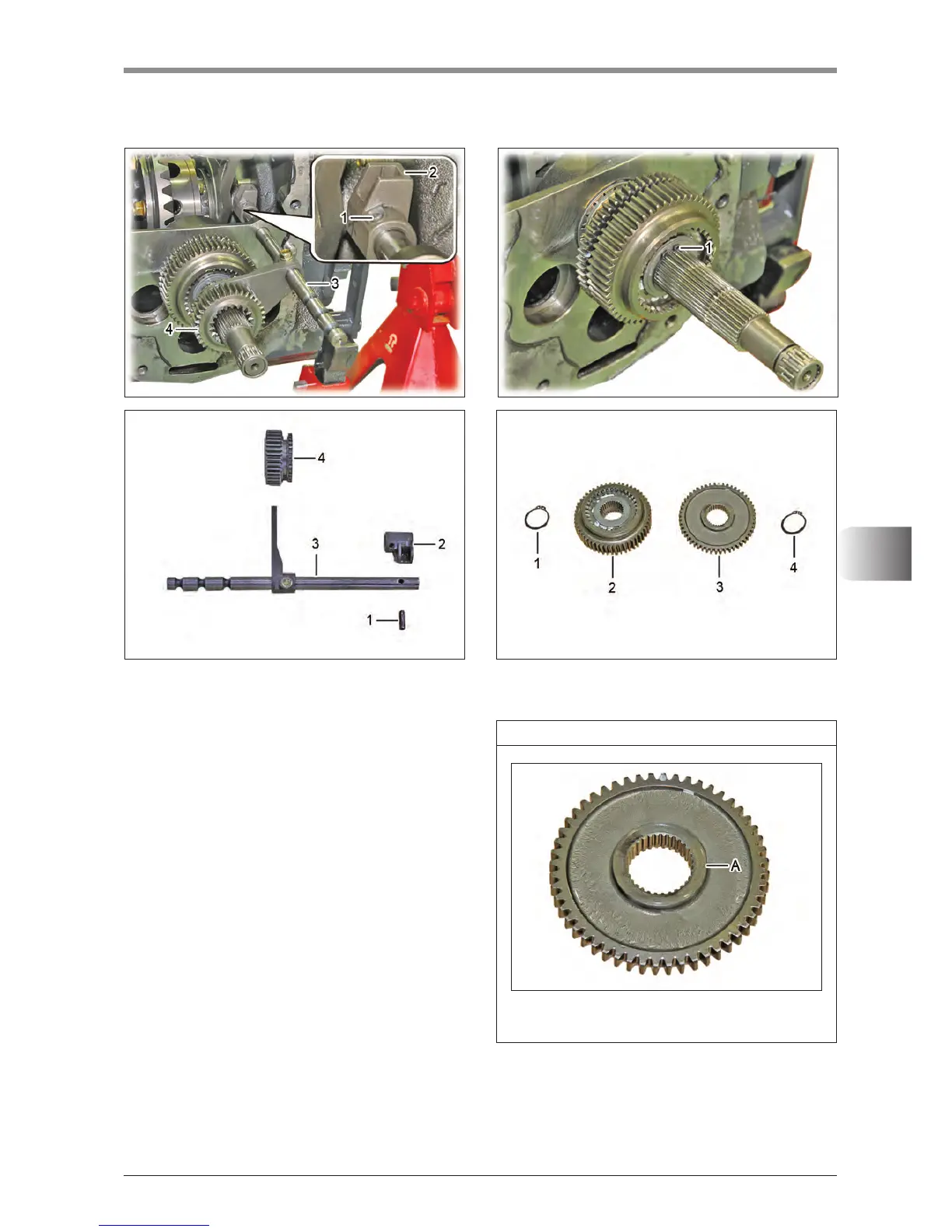

8. Pulloutthespringpin(1)andremovetherange

shift shifter (2). Then, remove the range shift

forkshaft(3)andrangeshiftdrivengear2nd(4)

simultaneously.

9. Pulloutthesnapring(1)andremovetherangeshift

drivengear1st(2),4WDgear(3)andsnapring(4).

When installing the 4WD gear, its higher boss

(A) should face the range shift driven gear 1st.

•



K42W478B
