3
-
7
CHAPTER 3 CLUTCH3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
42hW-201601
3

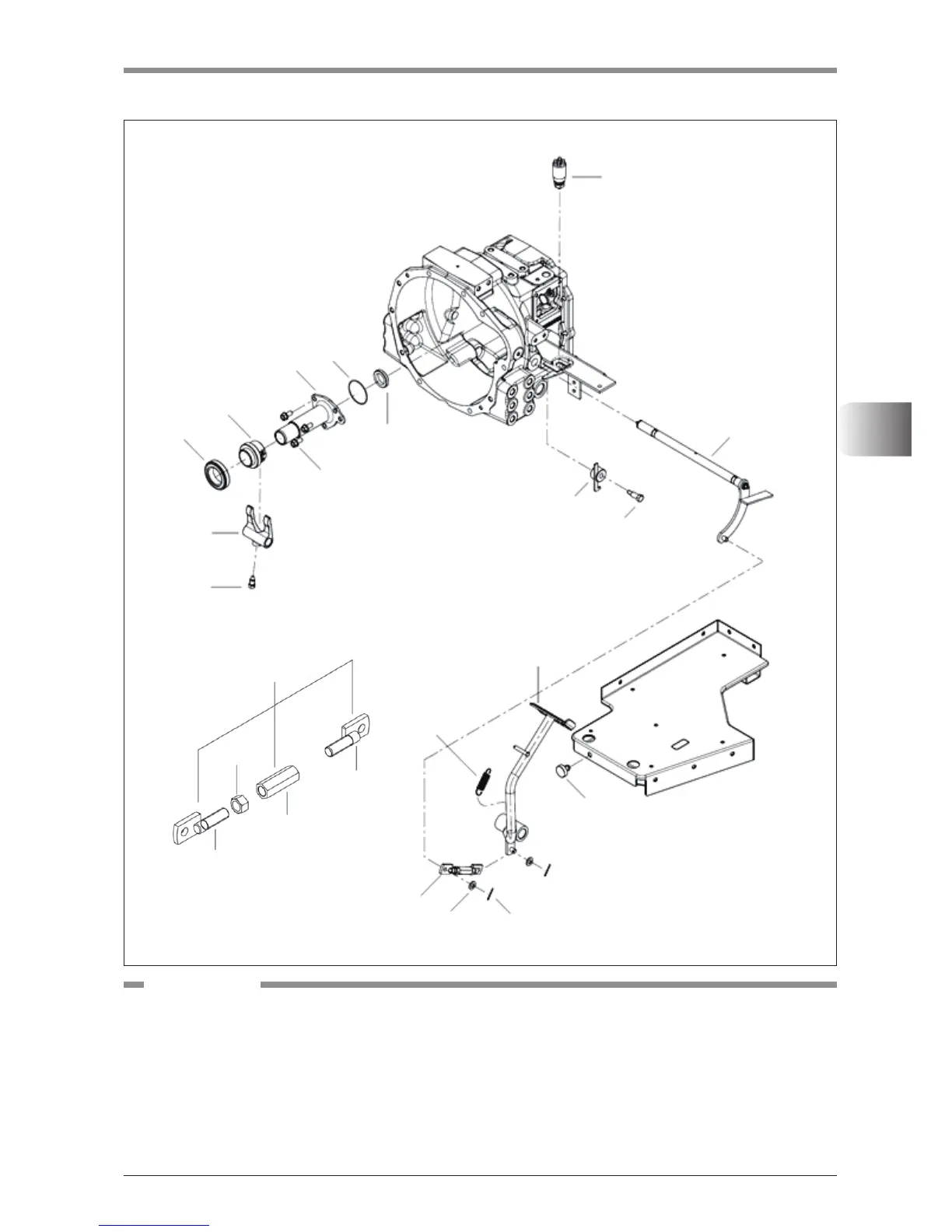

2.2 CLUTCH RELEASE























F42W304A
(1) Cover
(2) O-ring
(3) Oil seal
(4) Hex ange bolt
(5) Sleeve, bearing
(6) Release bearing ass’y
(7) Yoke, clutch shift
(8) Bolt
(9) Release shaft(main clutch)
(10) Clutch pedal
(11) Clutch road
(12) Plain washer
(13) Cotter pin
(14) Spring
(15) Stopper
(16) Lock, clutch pedal
(17) Bolt
(18) Safety switch, clutch
(19) Rod
(20) Rod
(21) Turn buckle
(22) U-nut
COMPONENTS
