1019572 REV. 03 19

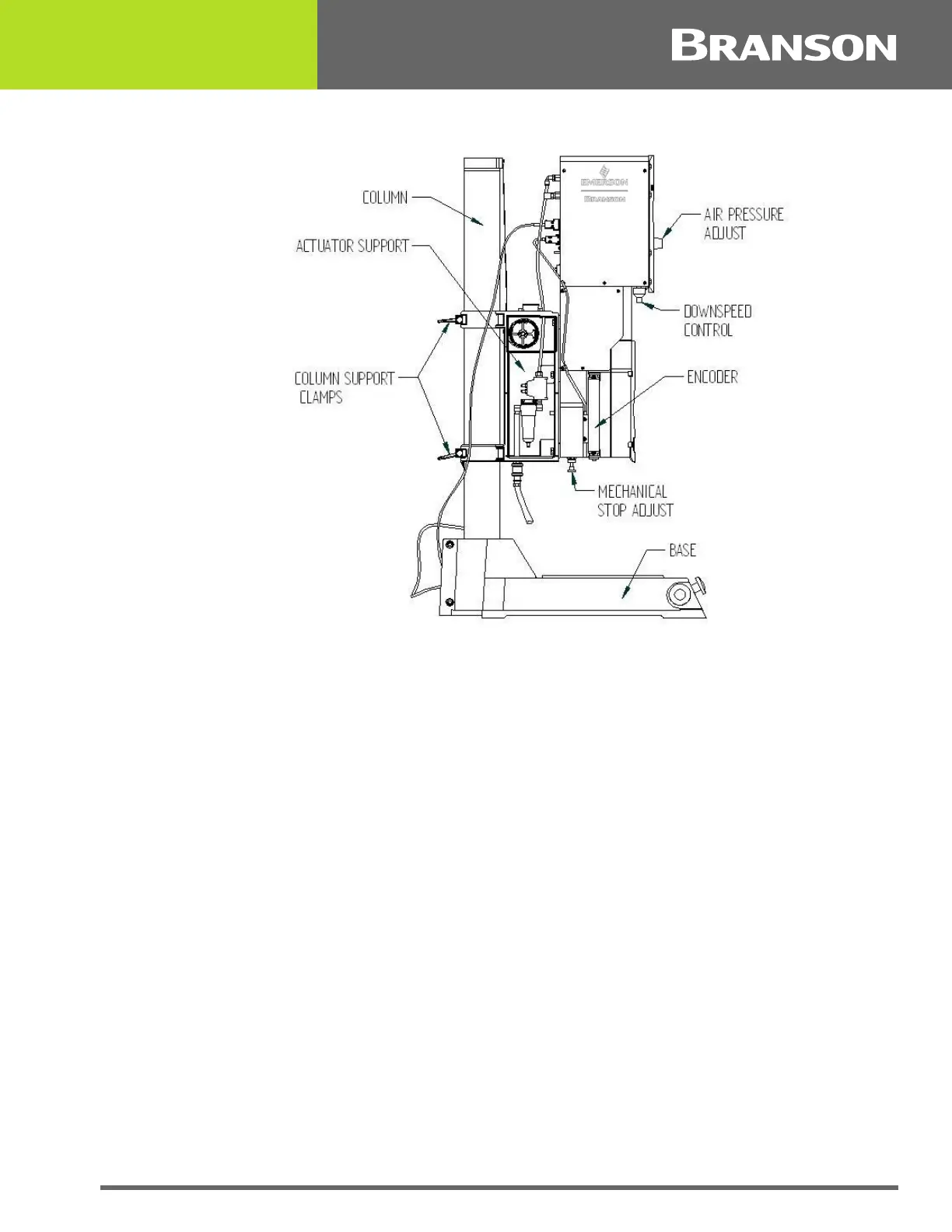

Figure 2.2 Left Side View of the 2000X aed 15 kHz Actuator
2.1.1 Power Supply Manual Set
The following documentation is available for the Branson 2000X-series Power Supplies
that are compatible with the 2000X aed Actuator:
• 2000X distance Power Supply Instruction Manual (EDP 100-412-167)
• 2000-Series Installation Guide (EDP 100-214-226)
• 2000X distance Quick Start User’s Guide (EDP 100-412-169)
