30 kHz Using Sleeve, and 40 kHz Stacks
1. Make sure that the system power is turned off by disconnecting the power plug.
2. Place the converter / booster in the sleeve.
3. Loosen the four carriage door screws.

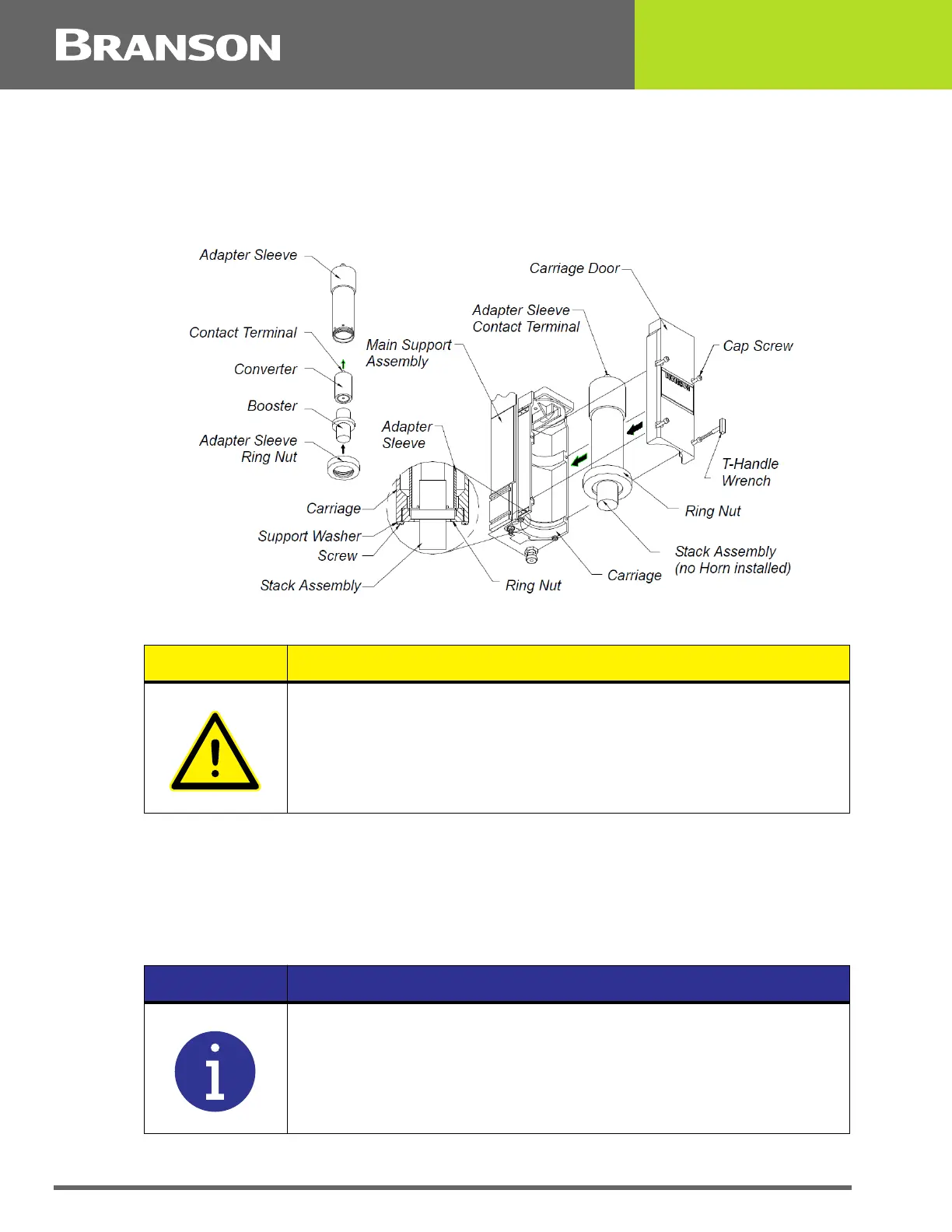

Figure 4.26 Installing a 40 kHz Stack in a Branson Actuator
4. Pull the door straight off and set it aside.
5. Take the assembled sleeve and align the ring nut on the booster just above the support washer
in the carriage. Firmly push the sleeve into place, with the acorn nut on the top of the converter
making contact with the contactor in the top of the carriage.
6. Reinstall the door assembly, and start the four door screws.
7. Align the horn by rotating it, if necessary. Torque the carriage door to 20 in.-lbs to secure the
stack.
CAUTION
Do not attempt to hold the sleeve in a vise. It can be easily crushed
or damaged.
NOTICE
Branson recommends using the CA-30 converter instead of the CJ-30
converter with the sleeve assembly.
