Branson Emerson 2000X aed - Figure 4.24 Installing a 20 Khz Stack in a Branson Actuator; Figure 4.25 Installing a 15 Khz Stack in a Branson Actuator

1019572 REV. 03 75
4. Pull the door straight off and set it aside.
5. Take the assembled ultrasonic stack and align the ring on the booster just above the support
washer in the carriage. Firmly push the stack into place, with the acorn nut on the top of the
converter making contact with the contactor in the top of the carriage.
6. Reinstall the door assembly, and start the four door screws.
7. Align the horn by rotating it, if necessary. Torque the carriage door to 20 in.-lbs to secure the
stack.

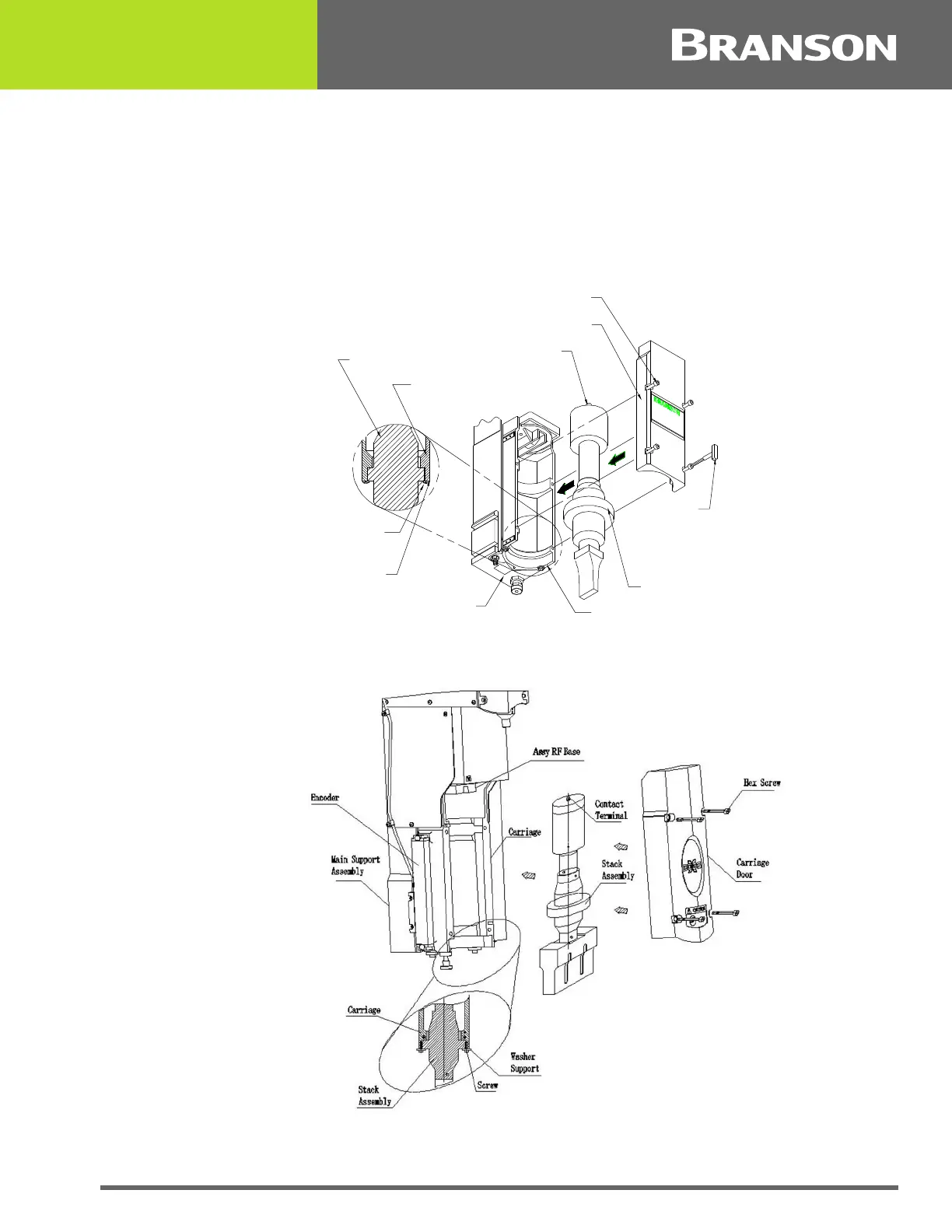

Figure 4.24 Installing a 20 kHz Stack in a Branson Actuator
Figure 4.25 Installing a 15 kHz Stack in a Branson Actuator
Stack Assembly
Carriage
Support
Washer
Screw
Main Support
Assembly
Hex Screw
Carriage Door
Contact
Terminal
Carriage
Stack Assembly
T-Handle
Wrench
