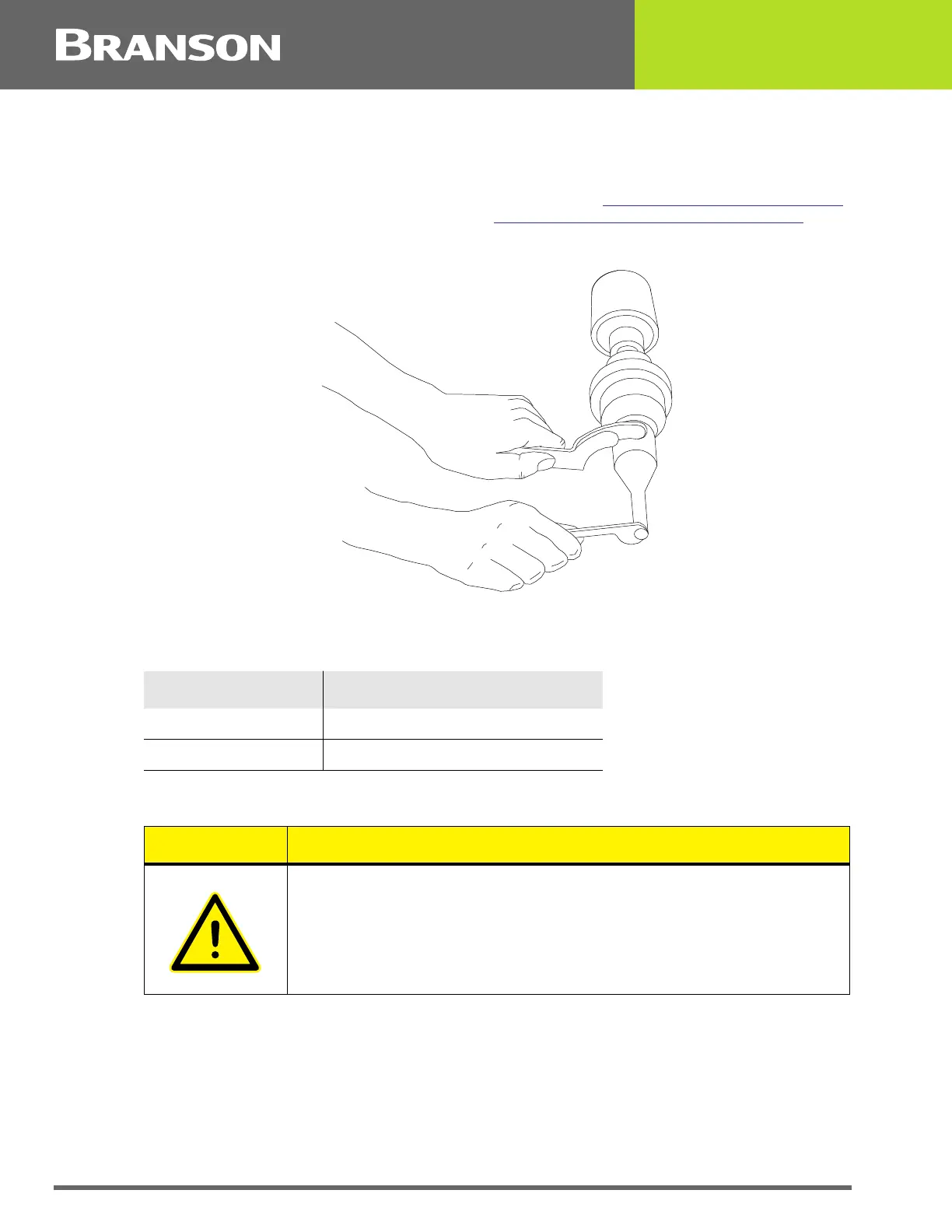

Branson Emerson 2000X aed - Figure 4.23 Connecting Tip to Horn; Table 4.17 Tip to Horn Torque Specifications

74 1019572 REV. 03
4.8.6 Connecting Tip to Horn
1. Clean the mating surfaces of the horn and tip. Remove foreign matter from the threaded stud
and hole.
2. Hand assemble the tip to the horn. Assemble dry. Do not use any silicone grease.
3. Use the spanner wrench and an open-end wrench (refer to Figure 4.19
Line Cord Color Code)
and tighten to the Torque tip specifications in Table 4.17
Tip to Horn Torque Specifications.
Figure 4.23 Connecting Tip to Horn
4.8.7 Installing the Stack in the Actuator
15 kHz Stacks and 20 kHz CA Converter Stacks
The ultrasonic stack must first be assembled. To install the stack:
1. Make sure that the system power is turned off by disconnecting the power plug.
2. Engage the Emergency Stop.
3. Loosen the four door screws.
Table 4.17 Tip to Horn Torque Specifications
Tip Thread Torque
1/4 - 28 110 in.-lbs, 12.42 Nm.
3/8 - 24 180 in.-lbs, 20.33 Nm.
CAUTION
The horn of 2000X 15 kHz actuator is not excess of 30 kg for ordinary
application. If you have bigger horn application, please contact
Branson for further assistance.
