Figure 4.10 Base Mounting Centers

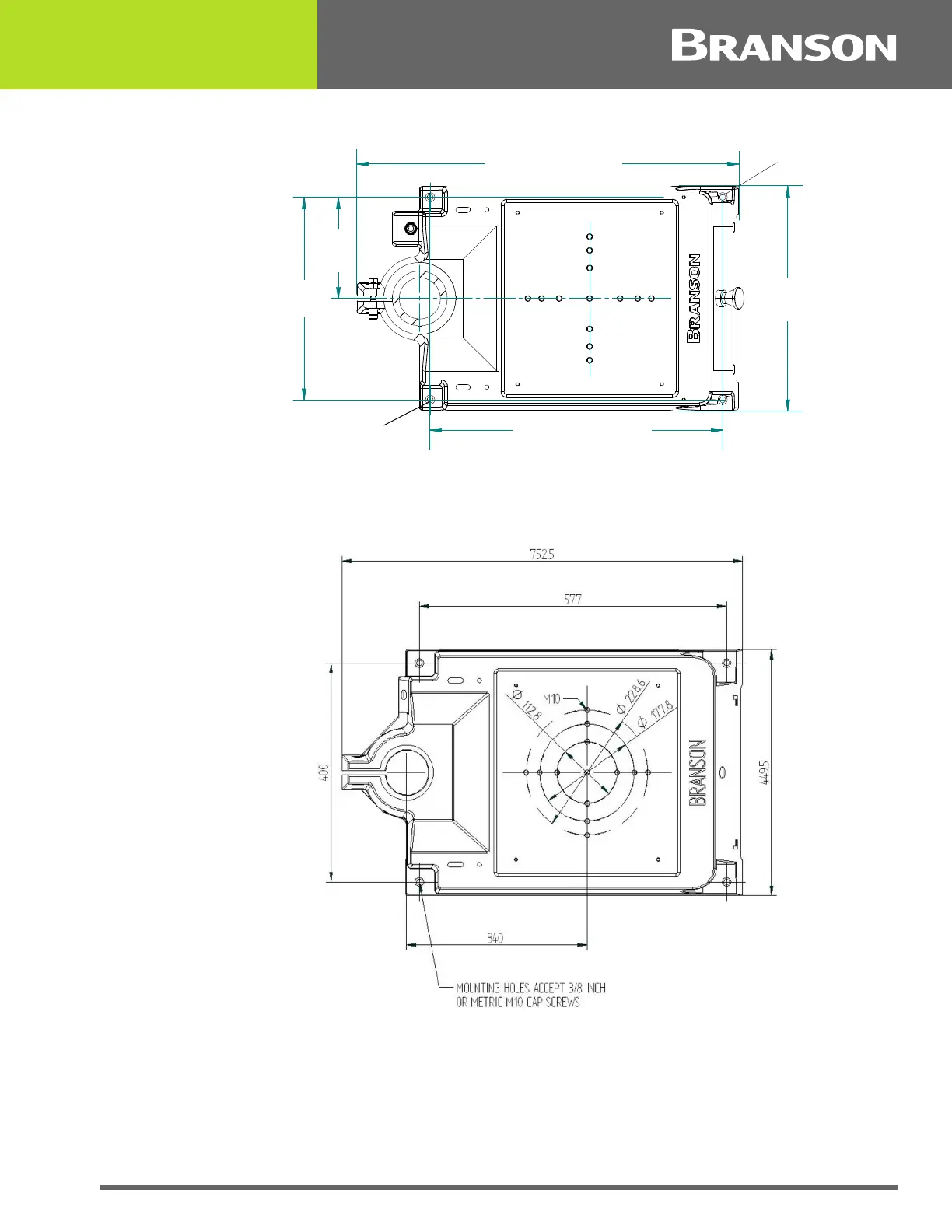

Figure 4.11 Base Mounting Centers Dimensional Drawing for 2000X aed 15 kHz Actuator
4.5.2 Mounting the Stand (Actuator on Hub-mounted column)
During unpacking, you removed the hub from the column/stand assembly. You must
choose a mounting location for the hub that will support the column and actuator, and
provide the hardware to mount it. Four mounting bolt holes are provided at the corners of
the casting, and will accept your 3/8 inch or M10 hardware. Use flat washers against the
metal casting to prevent gouging.
Mounting Holes
accept 3/8 inch
or metric M10
cap screws
14.75 in /
375 mm
M10
28.0 in / 711 mm
7.37 in /
187 mm
21.31 in / 541 mm
16.5 in /
419 mm
