1019572 REV. 03 57

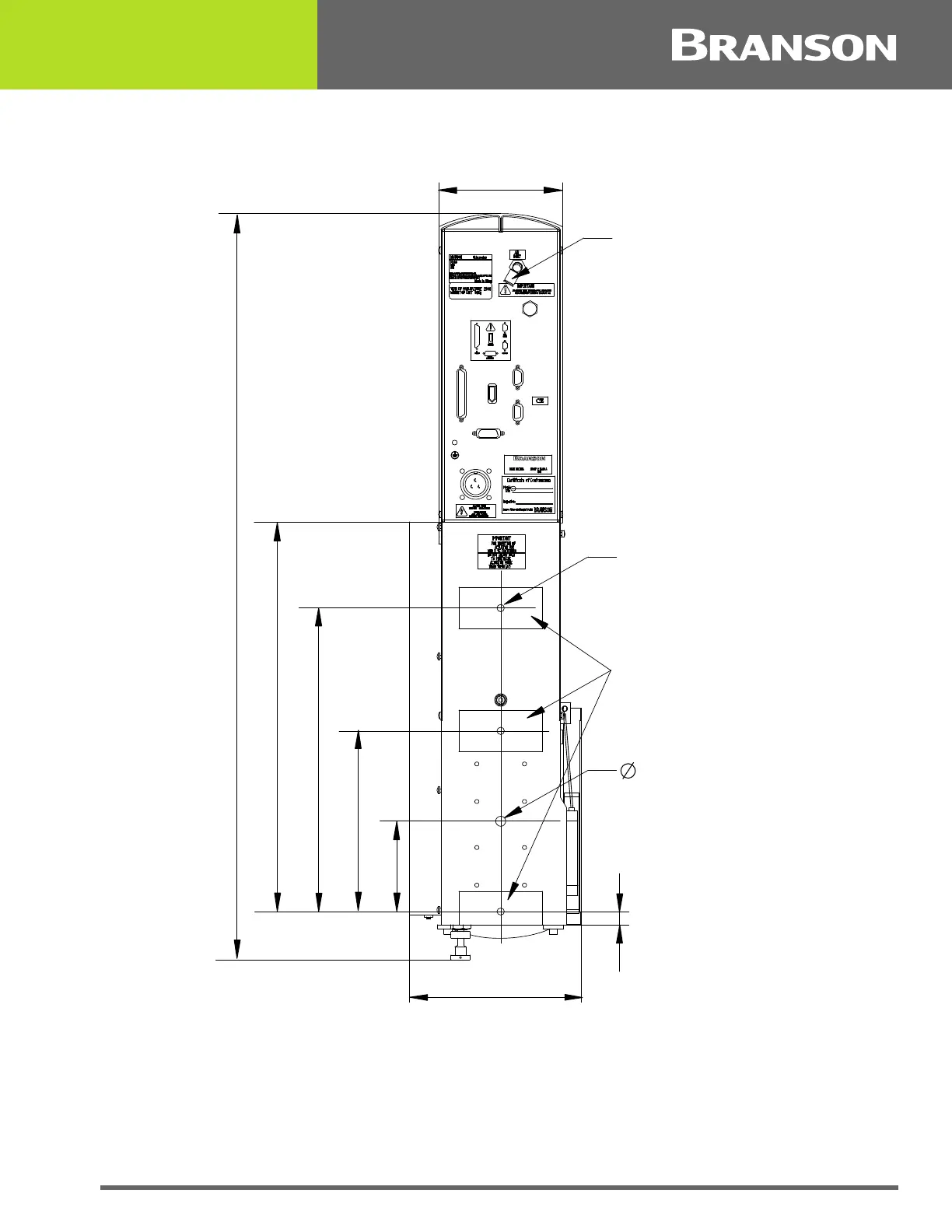

Figure 4.14 Rear view of Actuator, showing Mounting Surface, Bolt and Guide Pin locations for
2000X aed 15 kHz Actuator
892.5
363
216
108
16
148
AIR INLET
1/4” DIA TUBING
M10x1.5 THDS
10mm DEEP (3 PLACES)
MACHINED MOUNTING
SURFACE (3 PLACES)
12.1 FOR
12mm DOWEL PIN
466
5.875 in
BRANSON ULTRASONICS CORPORATION
120 PARK RIDGE ROAD, BROOKFIELD, CT. 06804
203.5
