4. Cut the packing strap securing the column support to the pallet.
5. Remove the block(s) of wood between the base and the support by slowly loosening the two
column clamps (allowing the stand to rise slightly) and then cutting the shipping tape on the
block of wood. RETIGHTEN THE COLUMN CLAMPS.
6. Loosen the two hub bolts (for column clamping) on the hub.
7. Lift the actuator and column from the pallet. Carefully lay the stand on its right side (NOT ON
THE SIDE WITH THE LINEAR ENCODER).
8. Remove the hub from the pallet and set it aside. Some hubs are bolted to the pallet from the
top.
9. Unpack the converter, booster, toolkit, and the insert box. Save the packing material, including
the blocks of wood.
10. Go to 4.3
Take Inventory of Small Parts.
4.2.5 Actuator (Alone)
The actuator, if shipped alone, is assembled and ready to install.
Move the shipping container close to the intended installation location, leave it on the
floor.
1. Open the top of the cardboard box, remove the insert from the top of the box and set it aside.
2. The toolkit, mounting bolts, and converter and/or booster are shipped with the actuator but in
separate shipping box(es). Unpack the converter, booster, toolkit and bolts from their packages.
3. Save the packing material.

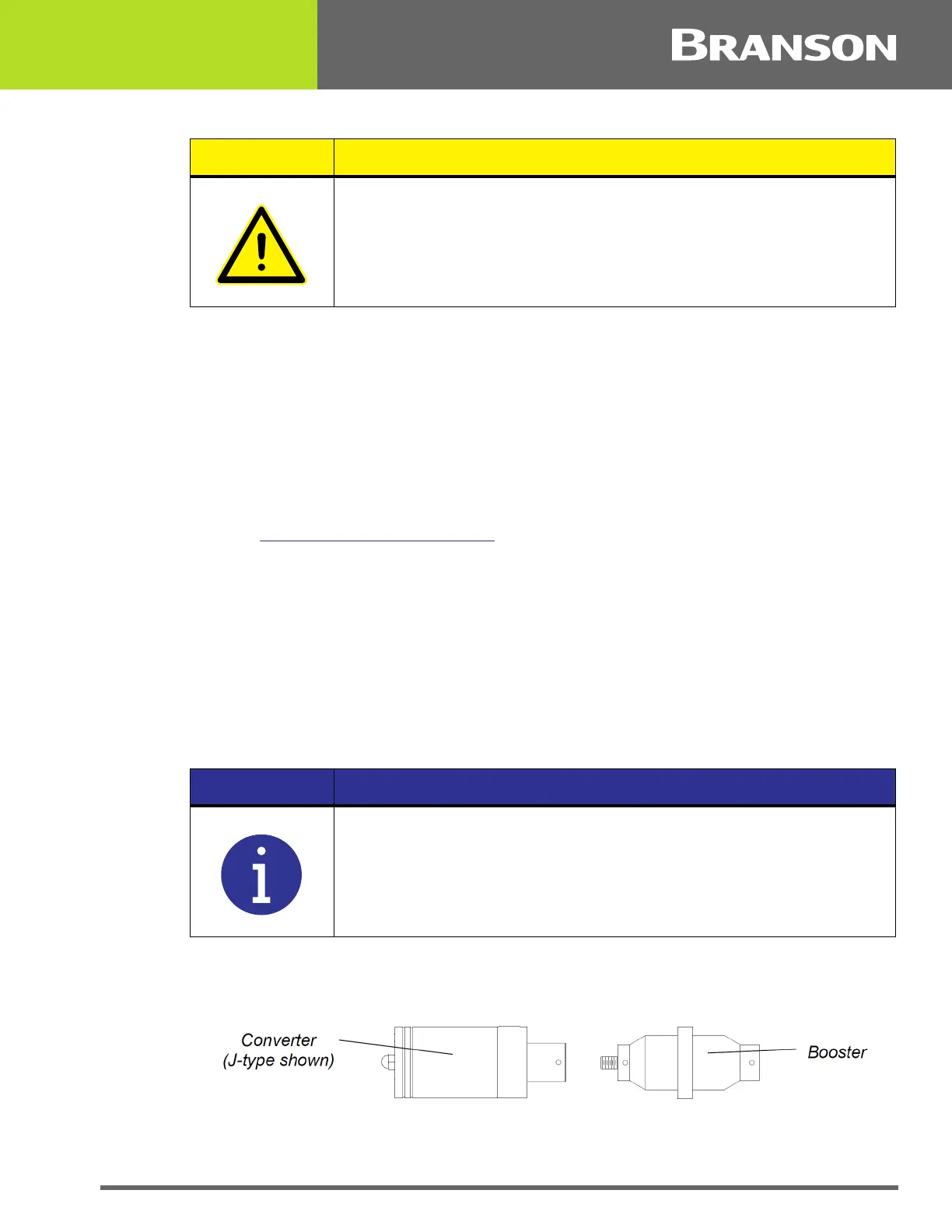

Figure 4.5 Ultrasonic Converter (J-Type for Stand-Alone Use) and Booster
CAUTION
The column and column support are under spring tension from the
counterbalance spring. Do NOT attempt to disassemble the column
from the stand, but always keep the column support clamped
together. When making height adjustments, carefully and slowly
release the clamps to control the motion, and hold the stand to
prevent sudden movements or injury.
NOTICE
The packaging may also include the converter and/or booster, if
ordered.
