Branson Emerson 2000X aed - Page 57

1019572 REV. 03 47

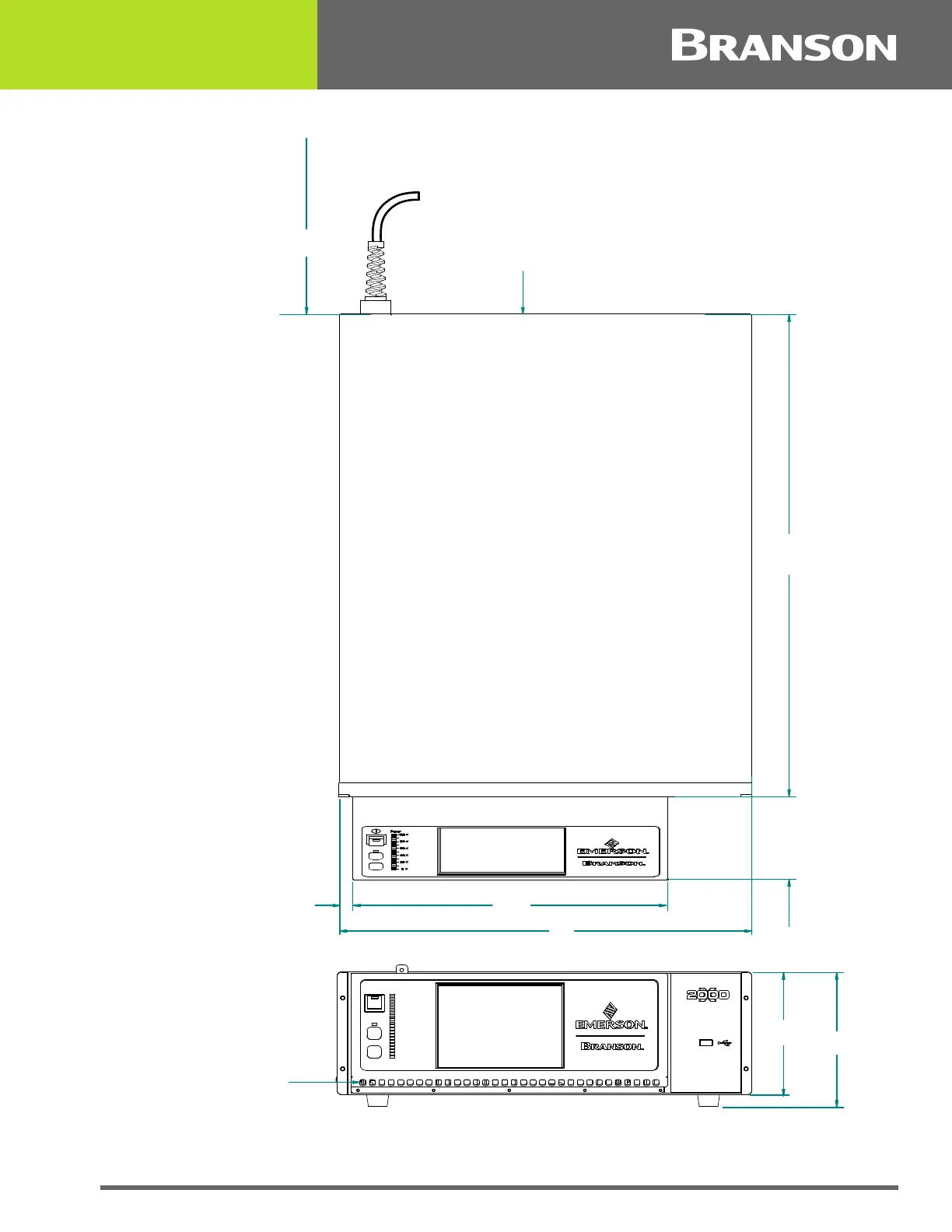

Figure 4.6 Power Supply Dimensional Drawing
17.6”
445.8mm
5.8”
147.32mm
5.8”
147.32mm
Air Outlet is under
front panel
20.5”
520.7mm
5.0” (127mm)
Desired Clearance
Air Intake
3.5”
88.9mm
13.4”
340.1mm
0.45”
11.4mm
