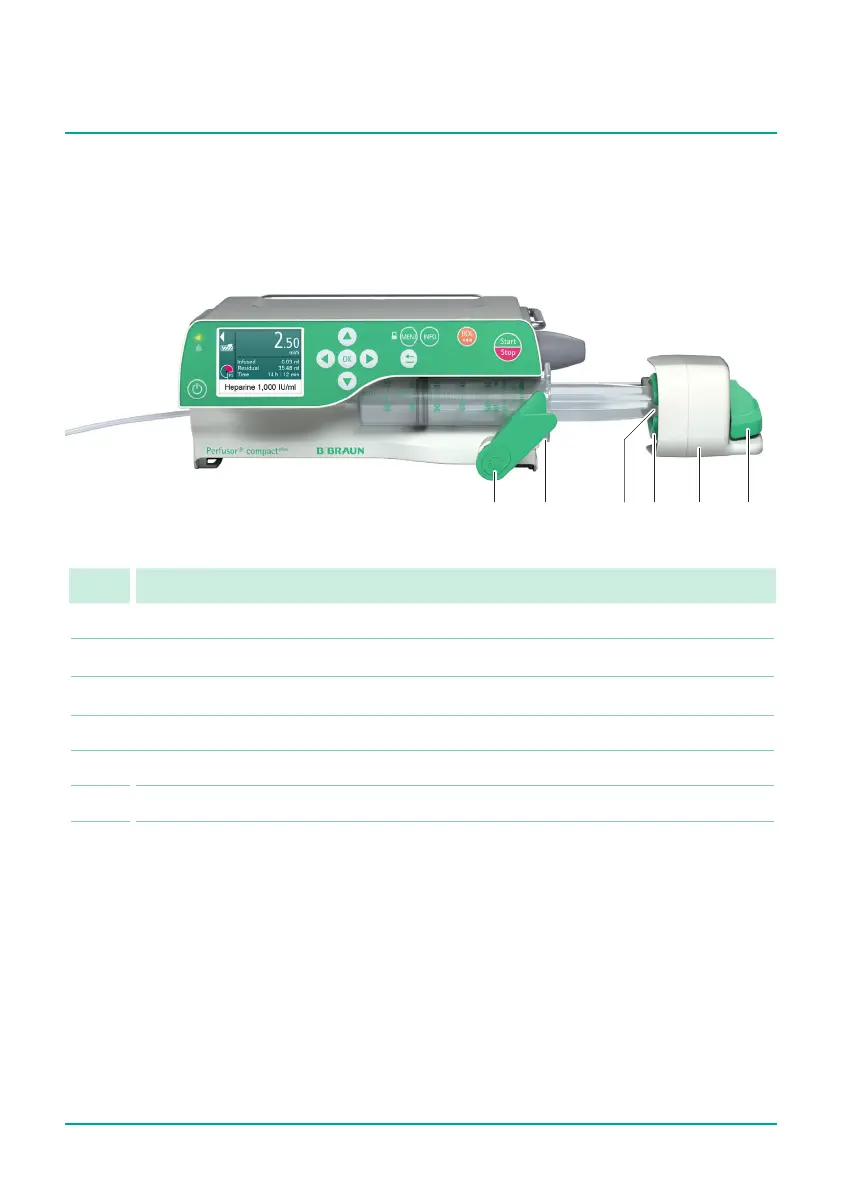

Description of the device
5
Descri
p
ti
on o
f the d
evi
ce
5
.1
D
ev
ic
e o
ver
v
iew
1
2
4
5
6
3
No.
Name
1
Syringe holder
2
Syringe wings bracket
3
Syringe plate sensor
4
C
law
s
5
Drive head with emergenc
y lock key
6
Releas
e lever
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Document
5
Purpose
5
Signs, Symbols and Tags
5
Warnings
6
Abbreviations
7
2 Symbols
8
Symbols on the Product and Packaging
8
Symbols on the Device's Display
9
3 Intended Use
10
4 Safety Instructions
11
Safe Handling
11
General
11
Software
11
Transport and Storage
11
Set-Up and Start-Up
11
Stacking
11
Control
12
Alarms and Staff Call
12
Accessories and Consumables
13
Enteral Nutrition
13
Electrical Connection
13
Safety Standards
13
5 Description of the Device
14
Device Overview
14
Interfaces
15
Display and Control Elements
16
Display Overview
18
Alarm Status Display
18
6 Menu Structure / Device Functions
19
Main Menu
19
Main Menu > Rate, Volume & Time
19
Main Menu > Drug
19
Main Menu > Dose Calculation
20
Main Menu > Settings
20
Settings > Service
21
7 Set-Up and Powering on
22
Setting up and Connecting the Device
22
Attach/Remove the Compact Plus Stand Clamp
22
Operating the Device on a Stand
22
Operating the Device in the Compact Plus Station
22
Operating the Device on a Wall Rail
22
Connecting the Device to the Mains Electricity
22
Operating the Device with a Battery
22
Powering on the Device on for the First Time
22
Configure Device Options
22
Turning Night Mode On/Off
23
Setting Display Brightness
23
Setting the Audio Volume
23
Configuring the Pressure Alarm Limit
23
Configuring Service Settings
24
Locking/Unlocking the Keypad
25
8 Operation
26
Switching on the Device
26
Inserting the Syringe
26
Setting the Infusion Values
26
Entering the Delivery Rate
26
Starting and Stopping the Infusion
27
Activating Standby
27
Administering Bolus
28
Administering a Manual Bolus
28
Administering a Bolus with Preselected Bolus Volume/Bolus Duration
28
Using the Drug Database
29
Hard and Soft Limits
29
Calculating the Dose
30
Entering a Combination of Delivery Rate, Volume and Time
31
Resetting the Therapy
32
Changing the Syringe
32
Ending the Infusion
32
Switching off the Device
33
Priming the Infusion Line
33
9 Alarms
34
Device Alarms
34
Pre-Alarms and Operating Alarms
34
Pre-Alarms
34
Operating Alarms
35
Reminder Alarm
36
10 Cleaning and Care
37
Cleaning
37
Battery Operation and Maintenance
37
Note for Optimal Battery Operation
37
Changing the Battery
38
11 Decommissioning
38
12 Maintenance and Repair
38
13 Disposal
39
14 Safety Check/Service
39
15 Start-Up and Trumpet Curves
39
Significance in Clinical Practice
39
Typical Start-Up and Trumpet Curves
40
Alarm Times
43
Omnifix® 50 Ml
43
16 Technical Data
44
17 Electromagnetic Compatibility
47
Electromagnetic Interference Emissions
48
Electromagnetic Immunity
49
Recommended Safe Distances
52
18 Instructions for Use for Accessories
54
Interface Lead 12 V CP (8718020)
54
Staff Call Interface Lead CP (8718030)
54
19 Ordering Data
56
Accessories
56
Original Perfusor® Lines
56
Interface Lead
57
Syringes
57
Index
58
