Description of the device
5.5 Alarm status display
Alarms are displayed via a notication on
the display, asignal tone and ashing of
thered LED (operating alarm):
Yellow: pre-alarm
Red: operating alarm
Q
Press OK to acknowledge the alarm.
Q
Continue the therapy or start new
therapy.

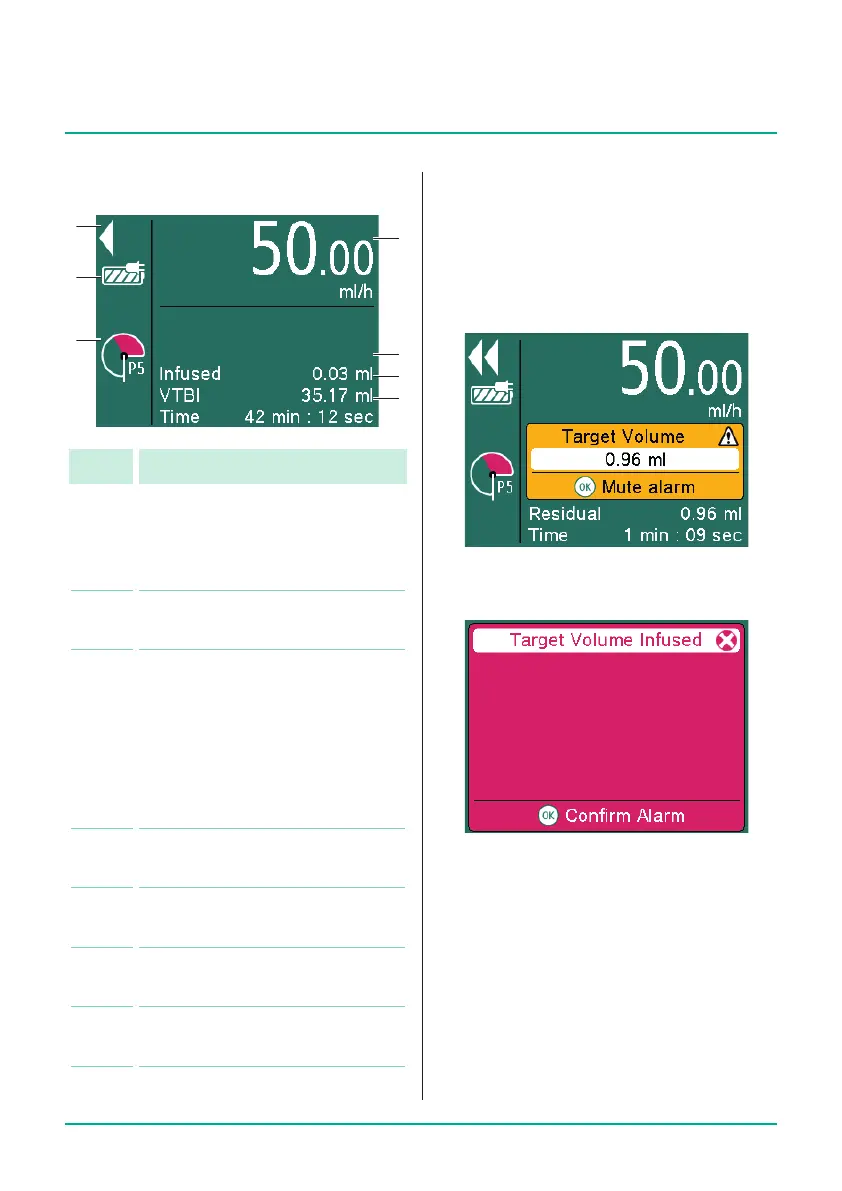

5.4 Display overview
1
2
3
4
5
6
7
No. Display / Function
1 Moving arrows:
Delivery in progress
(stopped delivery is shown by
two bars)
2 Mains electricity connection/
battery status
3 Pressure symbol (“manometer”):
Indication of P1 to P9 pressure
level set with current system
pressure (pointer)
Note: Pressure detector is
also active when the device is
stopped or in standby mode.
4 Set delivery rate with drug
administration unit
5 Volume already administered
during the current infusion
6 Remaining volume for the
current infusion
7 Remaining time for the current
infusion
