Brocade Communications Systems MLXe Series User Manual

214 Brocade MLXe Series Hardware Installation Guide
53-1003030-01
Replacing fan assemblies
6

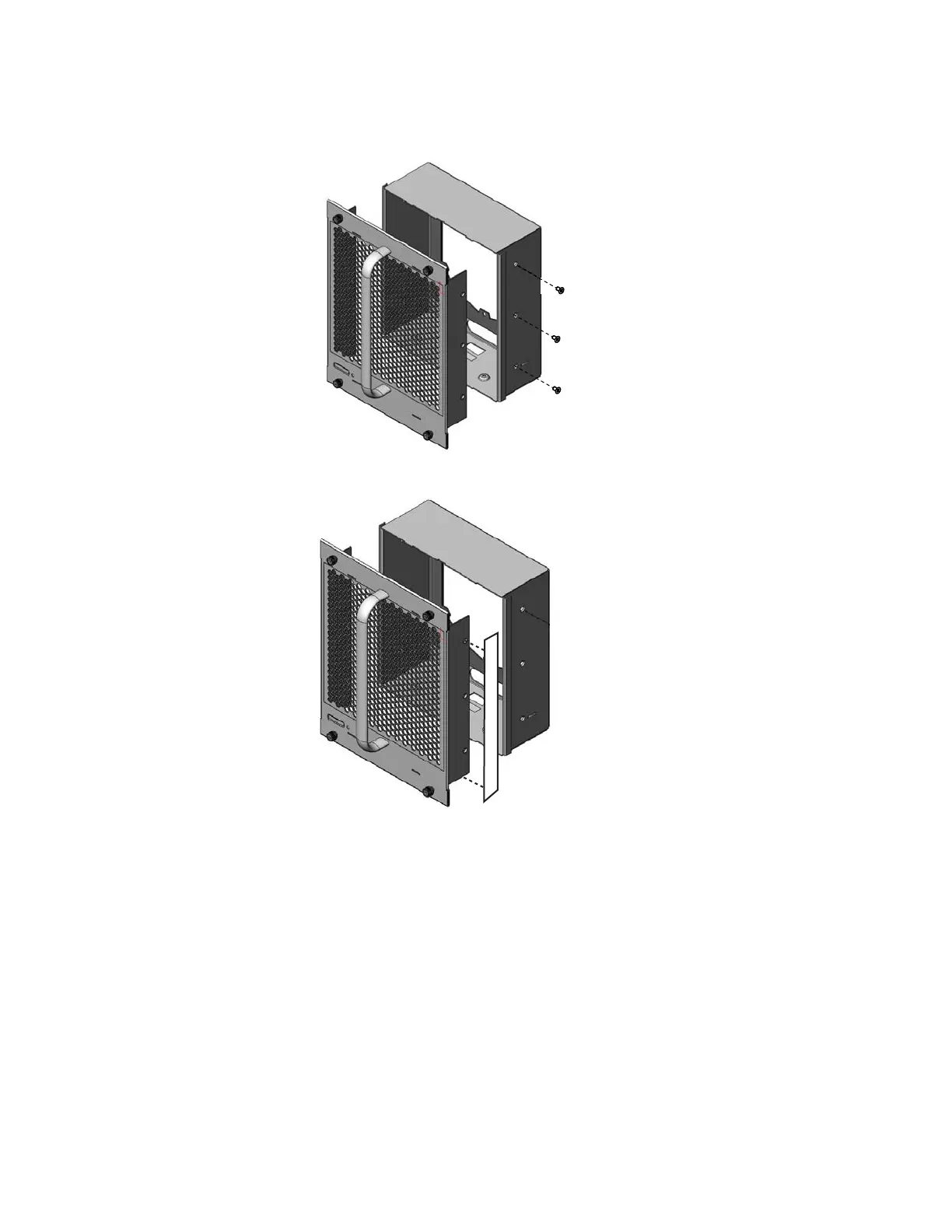

FIGURE 122 Removing the fan assembly faceplate
FIGURE 123 Removing tape from the fan assembly
3. Remove the fan assembly handle by detaching the two screws from the inside of the fan
assembly faceplate using a Phillips screwdriver. Refer to Figure 124.
