Brocade MLXe Series Hardware Installation Guide 27
53-1003030-01
Router modules
1
Total power used by system core = 762 W
Total power used by LPs = 1040 W
Total power available = 2998 W
Slot Power-On Priority and Power Usage:
Slot10 pri=1 module type=NI-MLX-1Gx48-T-A 48-port 10/100/1000Base-T MRJ21
Module power usage=260W
Slot11 pri=1 module type=NI-MLX-1Gx48-T-A 48-port 10/100/1000Base-T MRJ21
Module power usage=260W
Slot13 pri=1 module type=NI-MLX-1Gx48-T-A 48-port 10/100/1000Base-T MRJ21
Module power usage=260W
Slot16 pri=1 module type=NI-MLX-1Gx48-T-A 48-port 10/100/1000Base-T MRJ21
Module power usage=260W
--- FANS ----
Bottom fan tray (fan 1): Status = OK, Speed = LOW (50%)
Bottom fan tray (fan 2): Status = OK, Speed = LOW (50%)
Bottom fan tray (fan 3): Status = OK, Speed = LOW (50%)
Bottom fan tray (fan 4): Status = OK, Speed = LOW (50%)
Bottom fan tray (fan 5): Status = OK, Speed = LOW (50%)
Bottom fan tray (fan 6): Status = OK, Speed = LOW (50%)
Rev A Back Fan A (revision 0x09): Status = OK, Speed = LOW (50%)
Rev A Back Fan B (revision 0x0c): Status = OK, Speed = LOW (50%)
The output displays firmware Revision A (Rev A) for NIBI-16-FAN-EXH-A modules. Rev A indicates
that the router contains the required rear fan modules to support the NI-MLX-1Gx48-T-A modules.
The RPM value thresholds (LOW/MED/MED-HI/HI) are also displayed for rear fan modules.
If the router does not contain NIBI-16-FAN-EXH-A modules, the show chassis command will not
display Rev A for rear fan modules.
BR-MLX-40Gx4-M 4-port 40GbE module

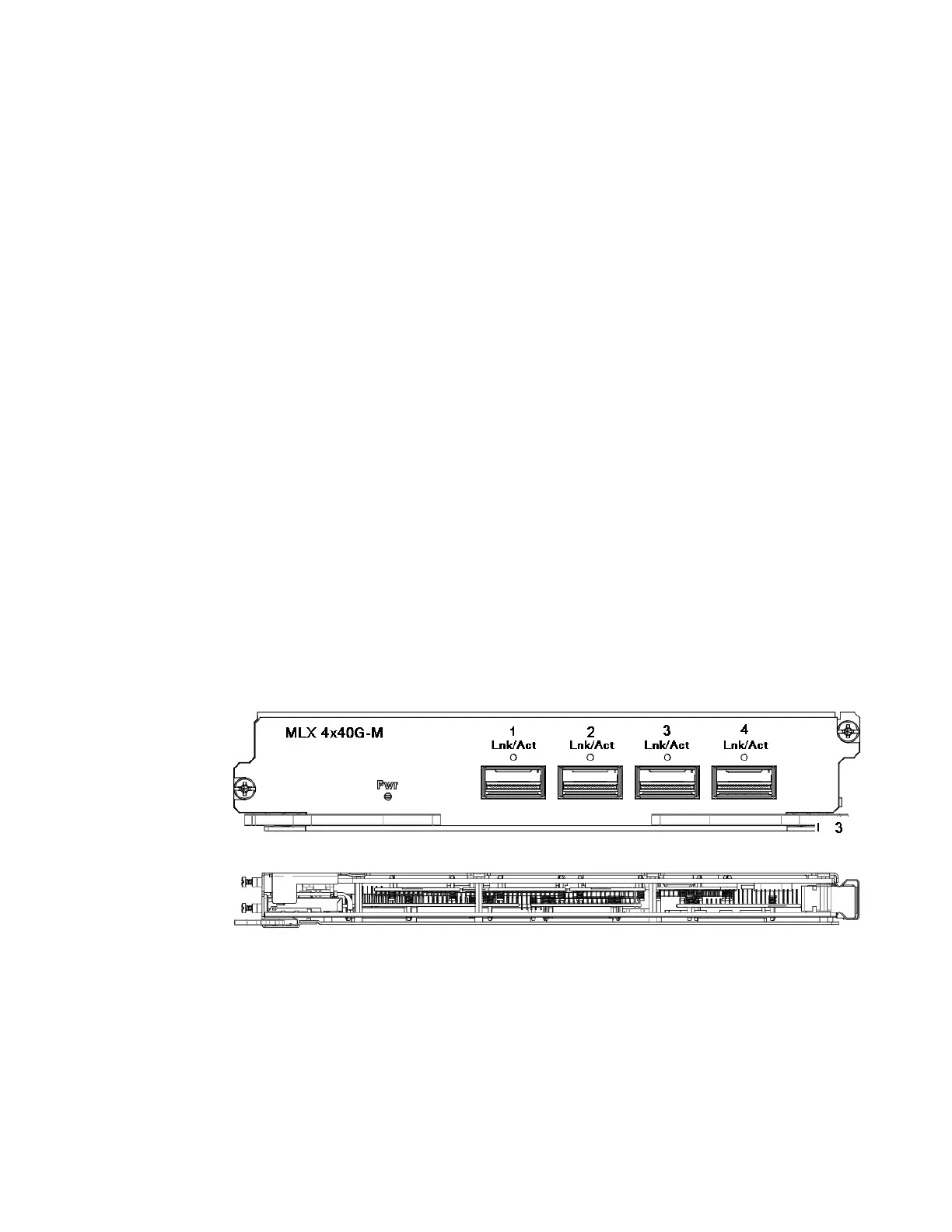

Figure 19 and Figure 20 shows the front panel for the BR-MLX-40Gx4-M interface module.
FIGURE 19 BR-MLX-40Gx4-M module front panel
FIGURE 20 BR-MLX-40Gx4-M module front panel side view
The front panel includes the following features:
• Name of the module.
• Number of ports and the type of ports.
• LED indicator for a port.
• LED indicator for module power.
Table 14 describes the BR-MLX-40Gx4-M module LEDs.
