Brocade MLXe Series Hardware Installation Guide 45
53-1003030-01
Installing 2x100GbE interface modules in Brocade MLXe routers
2

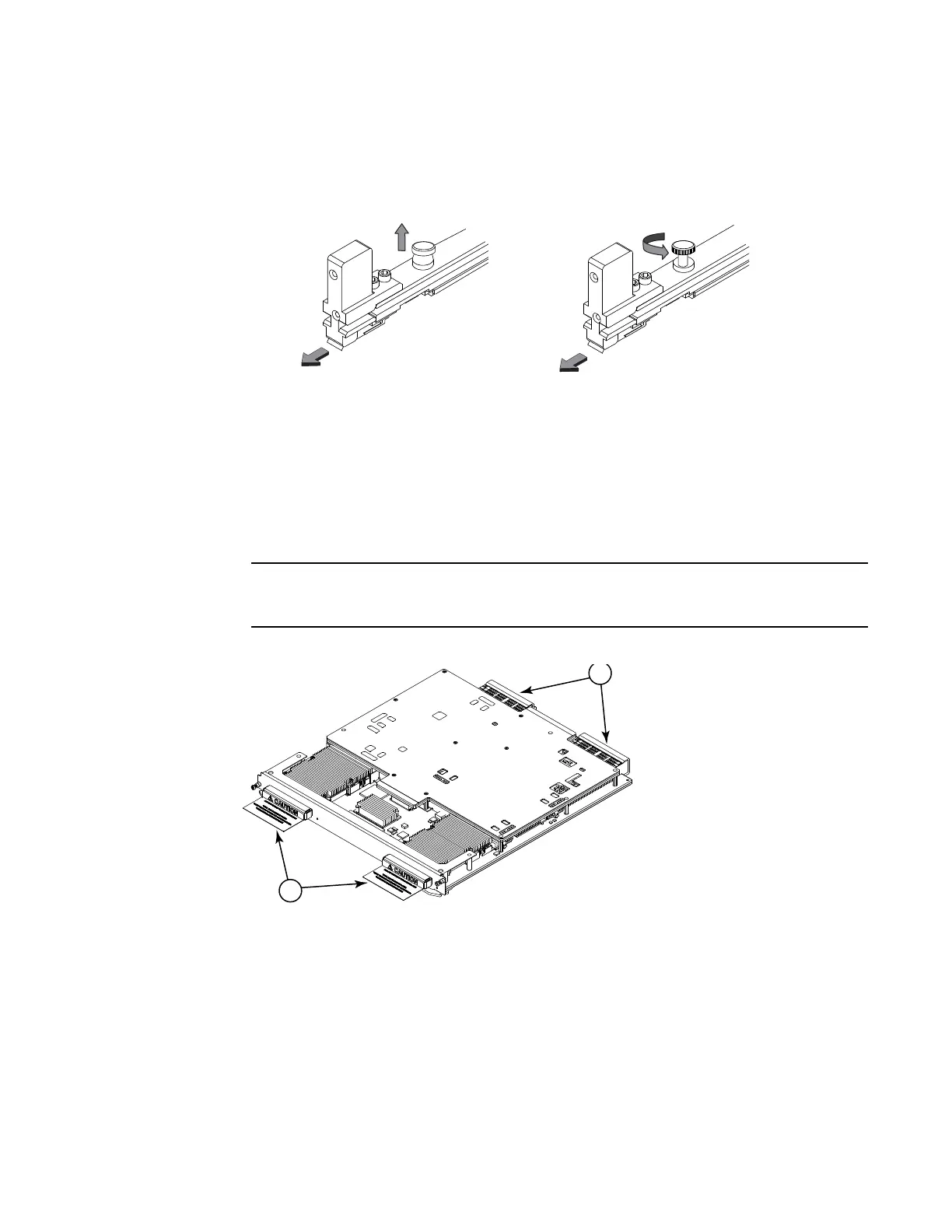

FIGURE 26 Removing the center slot guide
4. Remove the two connector covers from the rear connectors of the module. Refer to Figure 27.
5. Remove the port cover from one or both ports, depending on how you plan to use your module.
If you are using one port only (always Port 1), you must leave the port cover in the inactive port
(always Port 2). Port covers are designed for a tight fit and will take some effort to remove.
Refer to Figure 27.
Do not use the port cover tabs to lift the module. They are not designed to support the weight
of the module, which can fall and be damaged.
FIGURE 27 Port covers and connector covers
6. Insert the module into the slot until the connectors securely engage the backplane.
In 4- and 8-slot devices, the modules are installed horizontally. In 16- and 32-slot devices the
modules are installed vertically. Figure 28 and Figure 29 show how to install 2x100G modules
in horizontal and vertical slots (4-slot and 16-slot devices are shown, but the process is the
same for 8-slot and 32-slot devices).
Plunger style
Screw style
Pull up on plunger while
pulling guide out of chassis
Loosen screw before
pulling guide out of chassis
Caution: do not lift module
by port cover tabs
2
1
