50 Brocade MLXe Series Hardware Installation Guide
53-1003030-01
Installing a Brocade MLXe-4 router
2

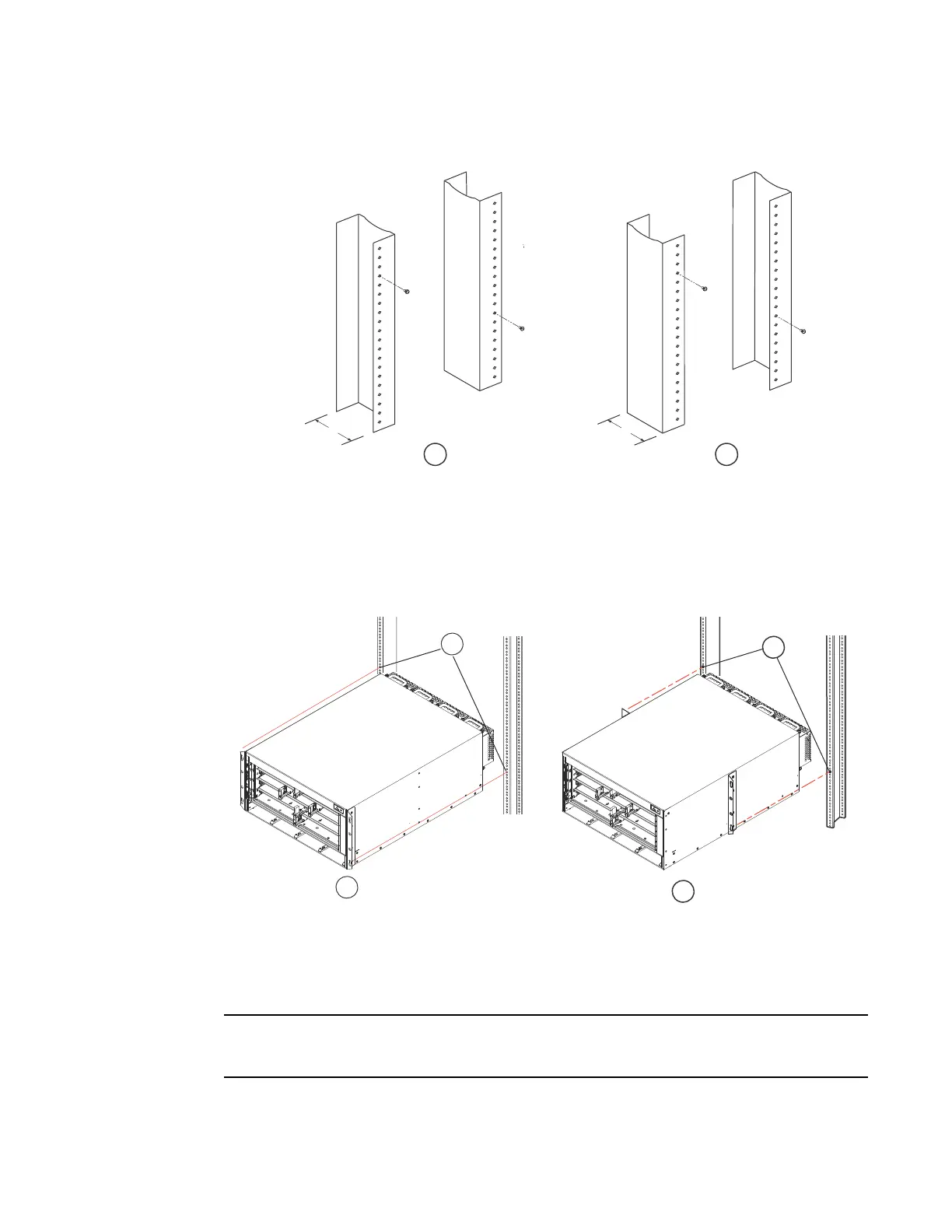

FIGURE 30 Positioning the mounting screws in rack posts
3. Mount the lowest router first. With one person on each side, lift the router and slip the widest
part of each keyhole slot on the mounting bracket over the corresponding screw in the rack
post. See Figure 31.
FIGURE 31 installing the router in a rack
4. Slide the router down so that the mounting screw heads are in the narrowest part of the
keyhole slots.
5. Tighten the screws to secure the router in place. For extra support, use additional screws.
For better grounding of the router to the rack, attach the router using star washers. You should also
use star washers with any single-hole grounding lugs to keep the lugs from rotating.
6. Repeat step 2 through step 5 to mount each router in the rack, moving from lowest to highest.
1 Unequal flange equipment rack 2 Network equipment rack
1 Screws on mounting posts 2 Front-mount position 3 Mid-mount position
