Brookeld Engineering Labs., Inc. Page 30 Manual No. M13-167
AviolationoftheQCLimitsduringthetestwillbeindicatedbyaashingyellowboxaroundthe
displayforthespeciedparameter.NotethatTimedoesnothaveadedicateddisplay.Aviolation
willalsoresultinanaudiblebeepandaonetimewarningmessage(seeFigureIII-6).Datawill
continuetobecollectedwhilethewarningmessageisdisplayed.

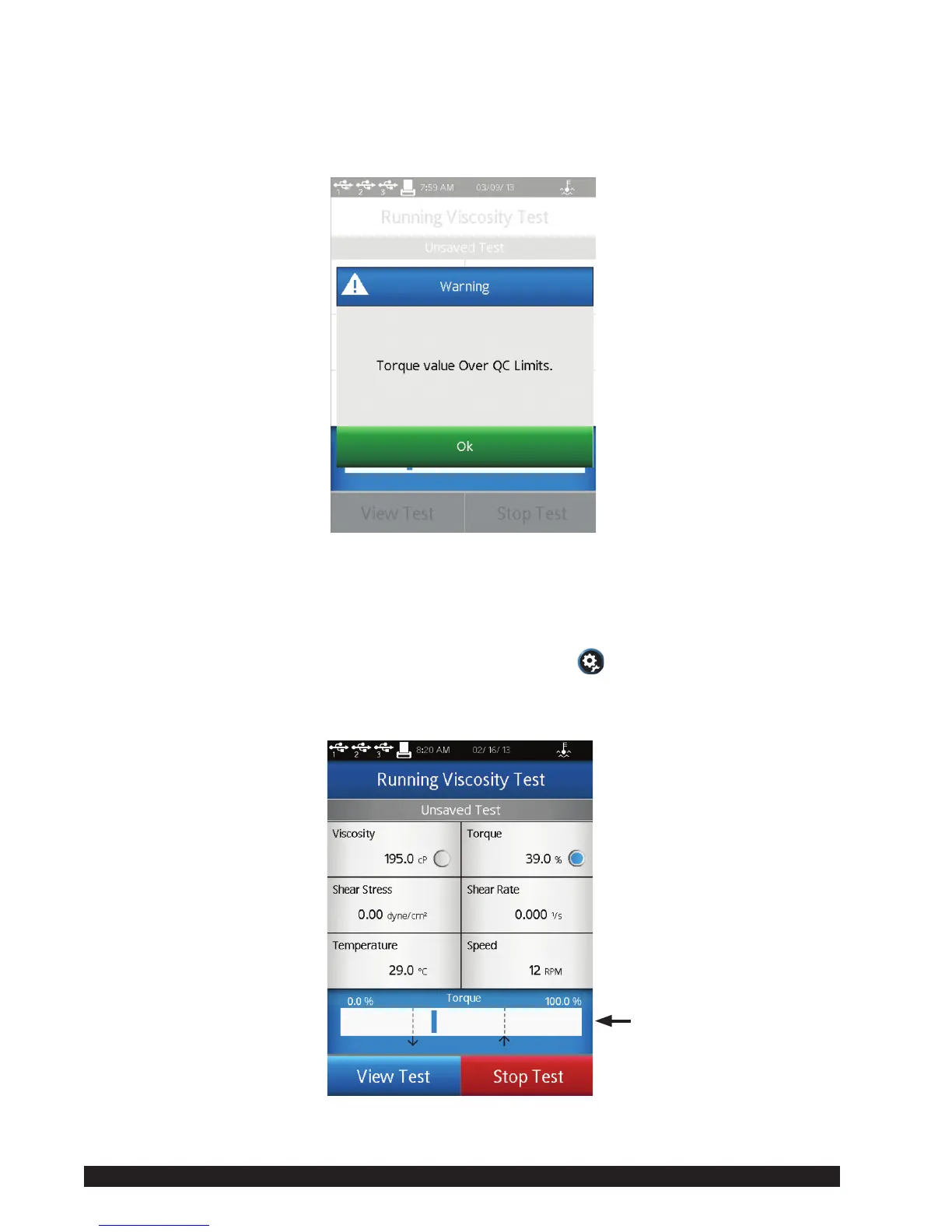

Figure III-6
WhenViscosityorTorquearetheselectedQCLimitsparameter,QCLimitswillbeshownduring
thetestontheTrendBarifthatparameterisselectedfordisplay(seeFigureIII-7).TheQCLimits
arerepresentedbythedashedlines.
TIP:AudiblealarmsmaybeturnedoffintheUserSettings .
TIP: AnindicationofaQCLimitviolationisnotpartofthedataset.Theusercanrecorda
violationbyusingtheNotesavailablewhenviewingtestResults(seeSectionIII.9).
Trend Bar
Figure III-7

Brookfield DV2T Specifications

General

Type	Viscometer
Model	DV2T
Repeatability	±0.2%
Data Output	USB, RS-232
Accuracy	±1.0% of range
Temperature Range	Optional temperature probe
Power Supply	100-240V, 50/60Hz
Display	5-inch Color Touch Screen
Viscosity Range	1-2, 000, 000 cP
