Brookeld Engineering Labs., Inc. Page 42 Manual No. M13-167
Technical Support Info: TheinformationcontainedintheTechnicalSupportInfomenuisdesigned
tosupportBrookeldforproblemresolution.WhencontactingBrookeld
forsupport,youmaybeaskedtoprovideinformationcontainedinoneof
themenuchoiceswithinTechnicalSupportInfo.Therearenosettings
withinthissectionandtheperformanceoftheDV2TViscometercan
notbeaffectedbyaccessingthissection.

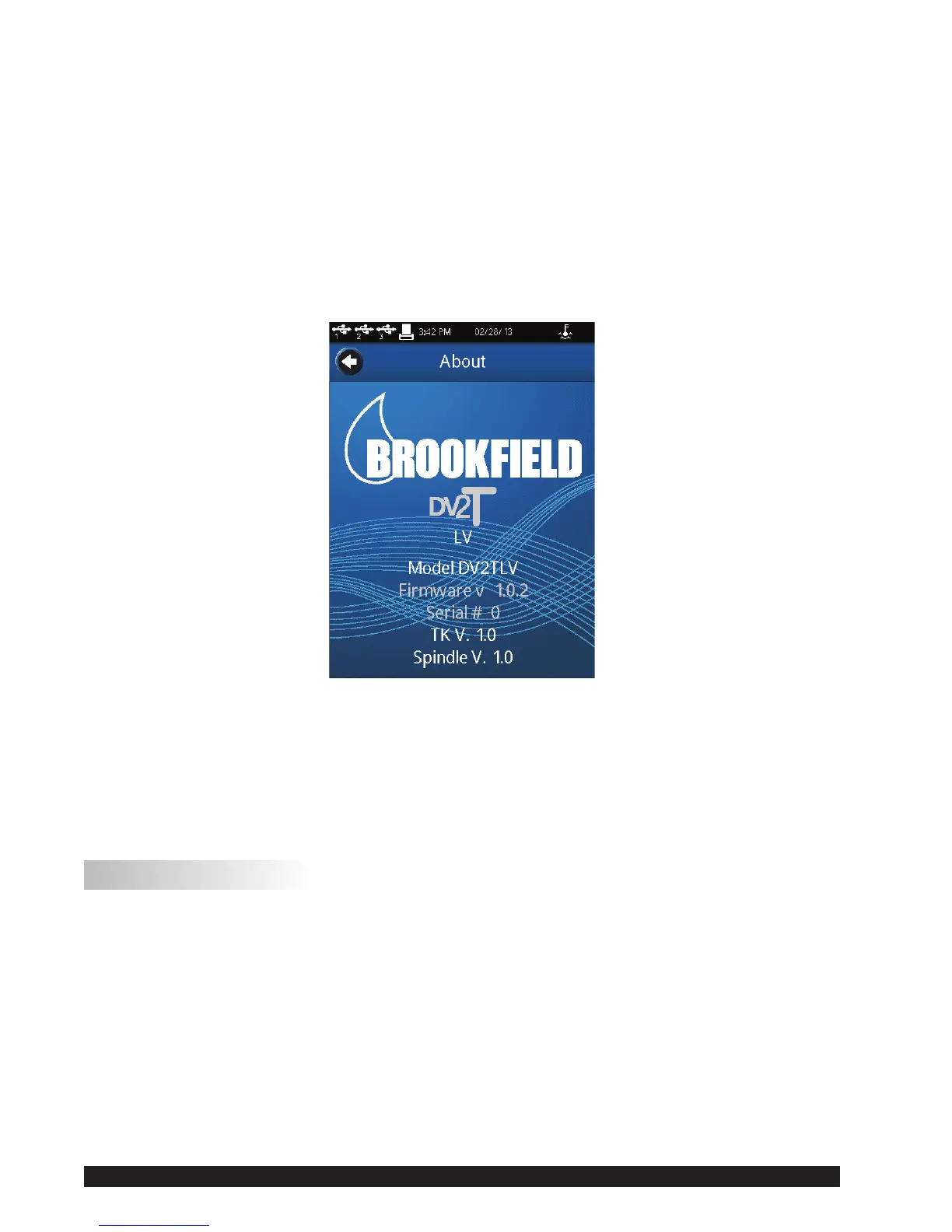

About:TheAboutscreenisshownduringthestartupsequenceoftheDV2TViscometer.The
usercanseetheAboutscreenatanytimebyselectingAboutintheDeviceSetupmenu
(seeFigureIV-4).InformationintheAboutscreenincludes:TorqueRange(LV,RV,HA,
HB),ModelNumber,FirmwareVersion,ViscometerSerialNumber,TKversion(torque
table),Spindleversion(spindletable).
Figure IV-4
TIP:TheinformationontheAboutscreenwillbeneededwhencontactingBrookeld
for support.
ToreturnfromtheAboutscreen,presstheLeftArrownavigationbuttonintheTitleBar.
IV.2 User Settings
TheUserSettingsmenuincludessettingsrelatedtospecicusers.TheDV2Tmaybesetupfora
singleusersetting(usedbyoneormoreoperators)orformultipleuserswhoaccessthroughaLog
InandPassword.ThreeUsersettingsareavailableincluding:
Sound - Adjust the volume of the DV2T sounds and select which
sounds to silence.
Display - Adjust the brightness, select language and restore Pop-Up
messages.
ChangePassword - ChangethepasswordfortheLogInaccountusedtoaccess
theDV2TViscometer.
TIP:EachUsercansettheirownpreferencesforSoundandDisplay.

Brookfield DV2T Specifications

General

Type	Viscometer
Model	DV2T
Repeatability	±0.2%
Data Output	USB, RS-232
Accuracy	±1.0% of range
Temperature Range	Optional temperature probe
Power Supply	100-240V, 50/60Hz
Display	5-inch Color Touch Screen
Viscosity Range	1-2, 000, 000 cP
