Brookfield DV2T - Model Q Optional Laboratory Stand

Brookeld Engineering Labs., Inc. Page 83 Manual No. M13-167
ModelQisanoptionallaboratorystandwhichcanbeorderedforusewiththeDV2TViscometer.
Theadvantageistherapidspeedofmovementforloweringandraisingtheviscometerhead.
Actuation lever for
up/down movement
Item Part No. Description Qty
1 VSQA-001Y UprightRodandClampAssembly 1
2 GV-1201 Base,includes2GV-1203levelingscrews 1
3 GV-1203 Leveling Screws available separately or in assembly above 2
4 502028071S33B FlatWasher5/16X7/8X.071 1
5 50S311832S01B Screw,5/16-18X1”HexHead 1
1
2
3
4
5

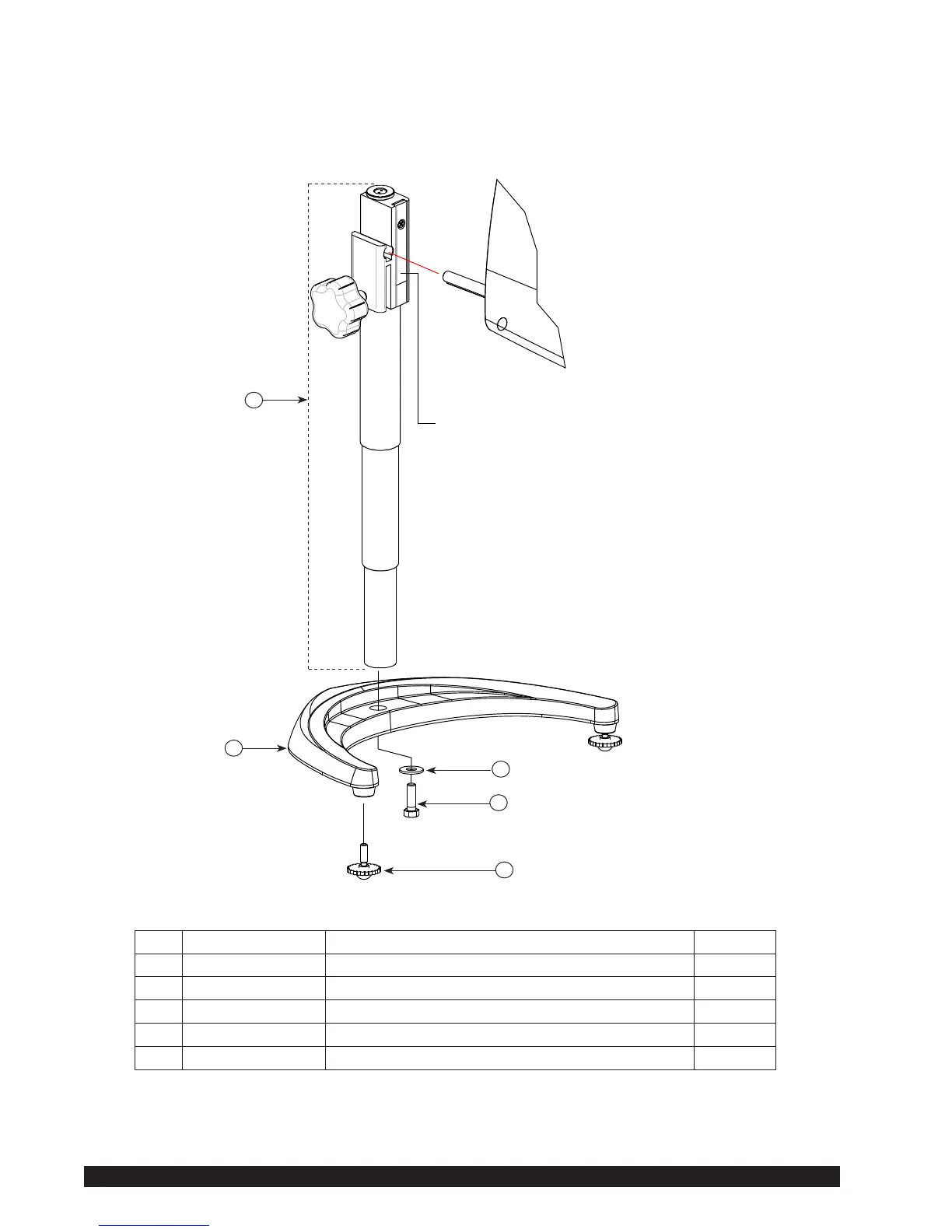

Figure H-2: Model Q Laboratory Stand
