9.8 Side cover R ASSY
(1) Remove the taptite bind B M4x12 screw from the front side of the side cover R ASSY.
(2) Remove the taptite bind B M4x12 screw from the back side of the side cover R ASSY.
(3) Keep the two front hooks held down, and rotate the side cover R ASSY in the direction of
arrow 3b while pushing it in the direction of arrow 3a. Release the remaining seven
hooks, and remove the side cover R ASSY from the machine.

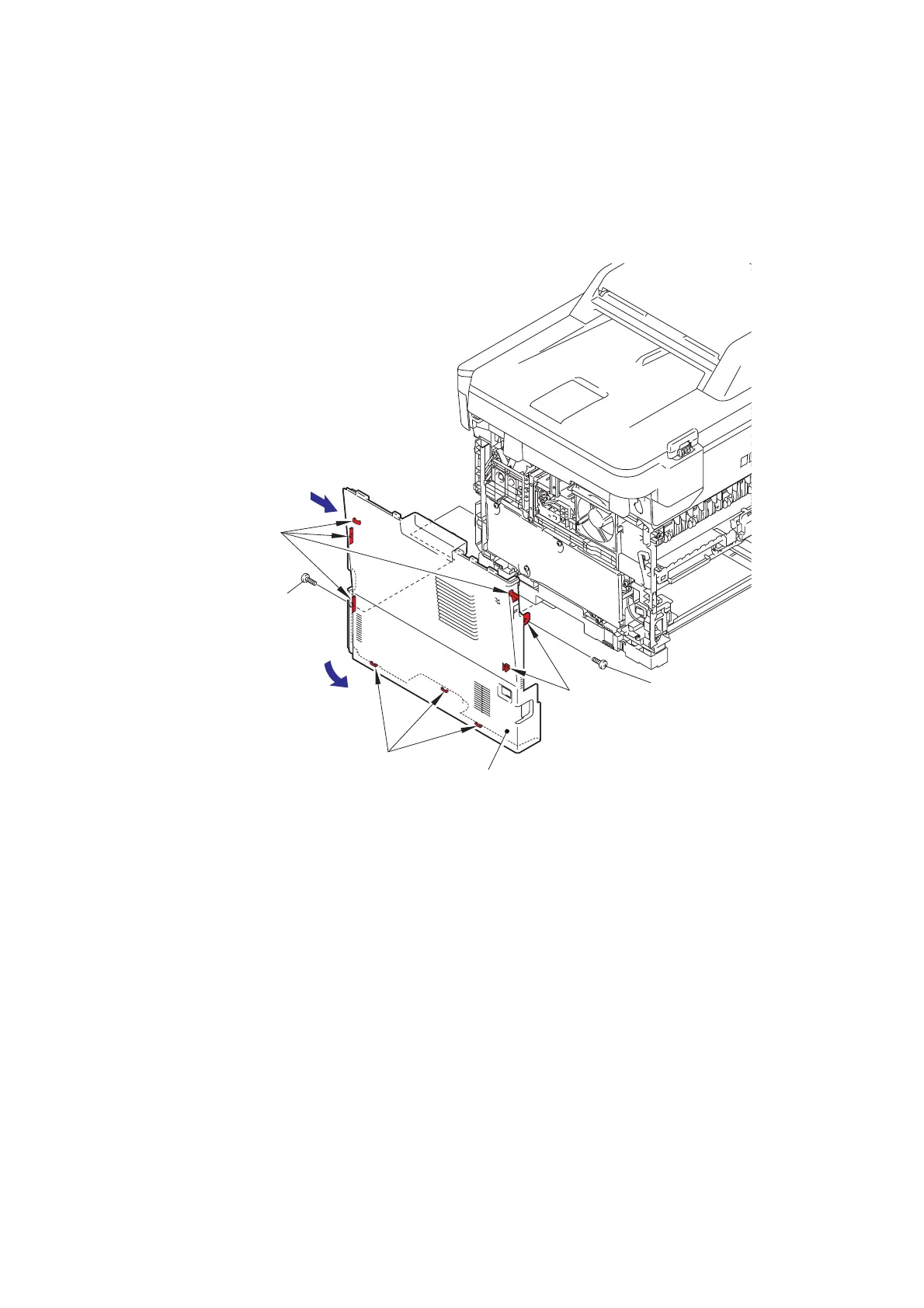

Fig. 3-25
Hooks
Hooks
Side cover R ASSY
Taptite bind B M4x12
Hooks
Taptite bind B M4x12
3a
3b
