3-52
Confidential

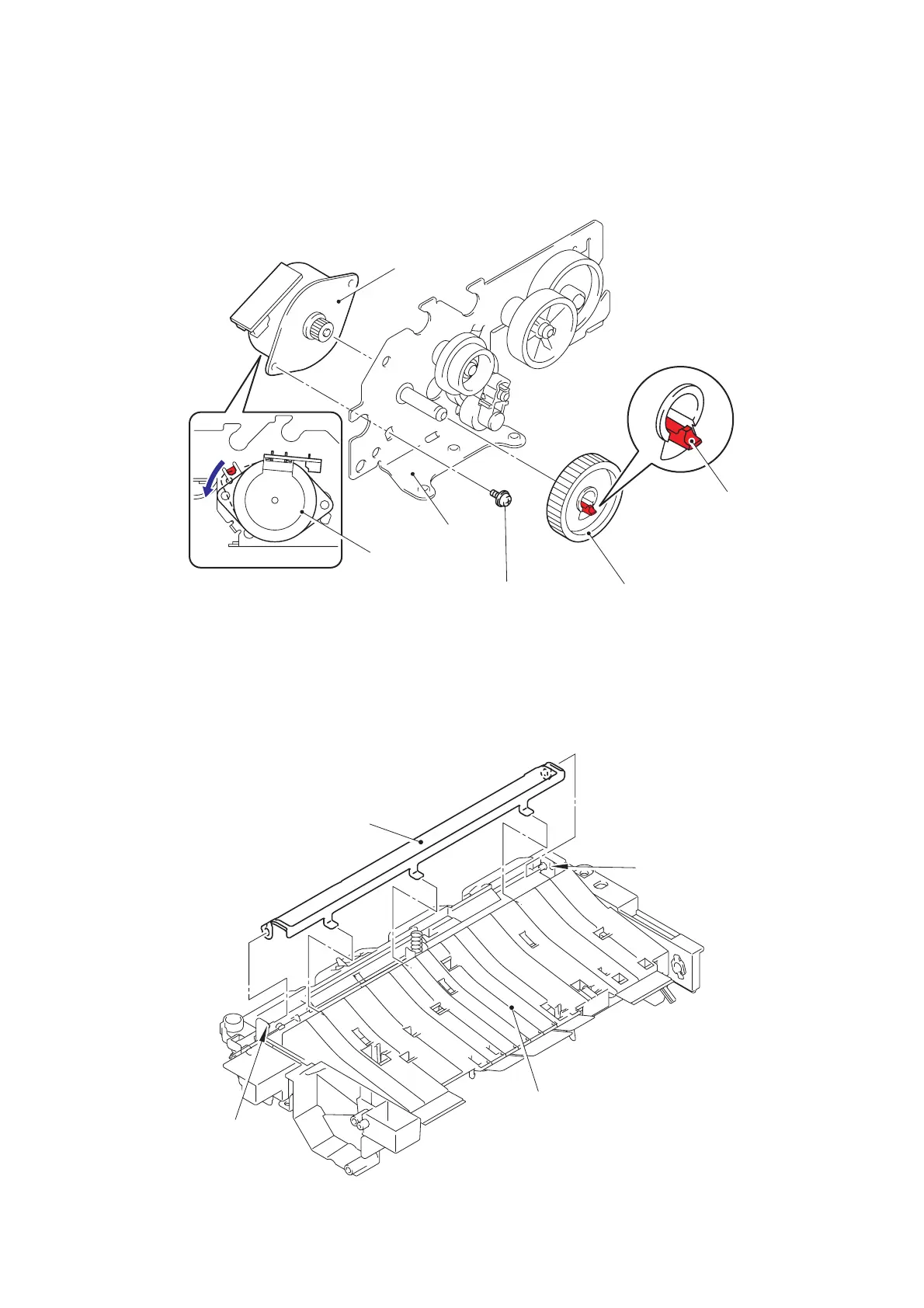

9.9.13 ADF motor ASSY
(1) Release the hook, and remove the gear 43 from the drive frame ASSY.
(2) Remove the screw pan (s/p washer) M3x6 screw to remove the ADF motor ASSY from
the drive frame ASSY.
Fig. 3-64
9.9.14 First side document hold
(1) Reverse the lower ADF chute.
(2) Release the two pins, and remove the first side document hold from the lower ADF
chute.
Fig. 3-65
ADF motor ASSY
Screw pan (S/P washer) M3x6
ADF motor ASSY
Gear 43
Hook
Drive frame ASSY
Pin
First side document hold
Lower ADF chute
Pin
