Brother DCP-8157DN User Manual

7-13
Confidential
2.4 MP paper feeding kit
(1) Push the front cover release button, and open the front cover ASSY.
(2) Open the MP roller cover. Release the hook on the MP holder bushing, and slide the MP
holder bushing in the direction of arrow 2 to remove it from the machine.
(3) Slide the MP roller holder ASSY in the direction of arrow 3 to remove it from the MP
separation roller shaft. Then remove the MP roller holder ASSY from the machine.
(4) Raise the MP separation pad ASSY to the 50-degree position, and remove it from the
machine in the direction of arrow 4.
(5) Bend the MP separation pad spring inward to remove it from the machine.

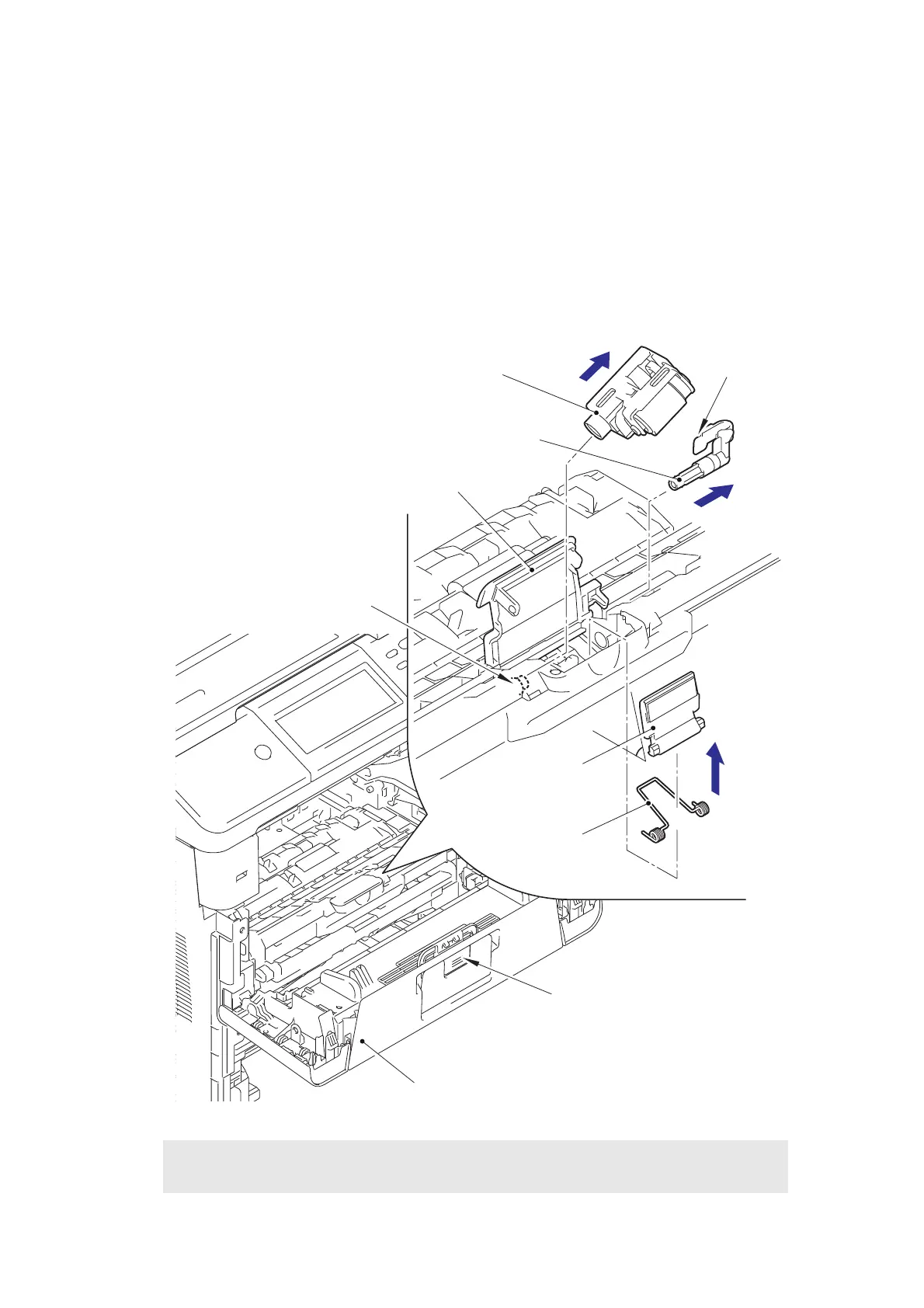

Fig. 7-17
Assembling Note:
• Attach the MP roller holder ASSY while pushing the MP separation pad ASSY.
MP separation pad ASSY
Hook
MP separation
pad spring
MP holder bushing
MP roller holder ASSY
MP roller cover
2
Front cover ASSY
Front cover release button
3
4
MP separation roller shaft
50°
