Brother DCP-8157DN User Manual

3-42
Confidential
(3) Remove the two CIS spacers from both ends of the second side CIS unit.
(4) Peel the double-sided tape securing the second side CIS flat cable to the back of the
ADF unit.
(5) Lift the second side CIS unit to remove the second side CIS flat cable.
(6) Remove the two CIS springs from the ADF unit.

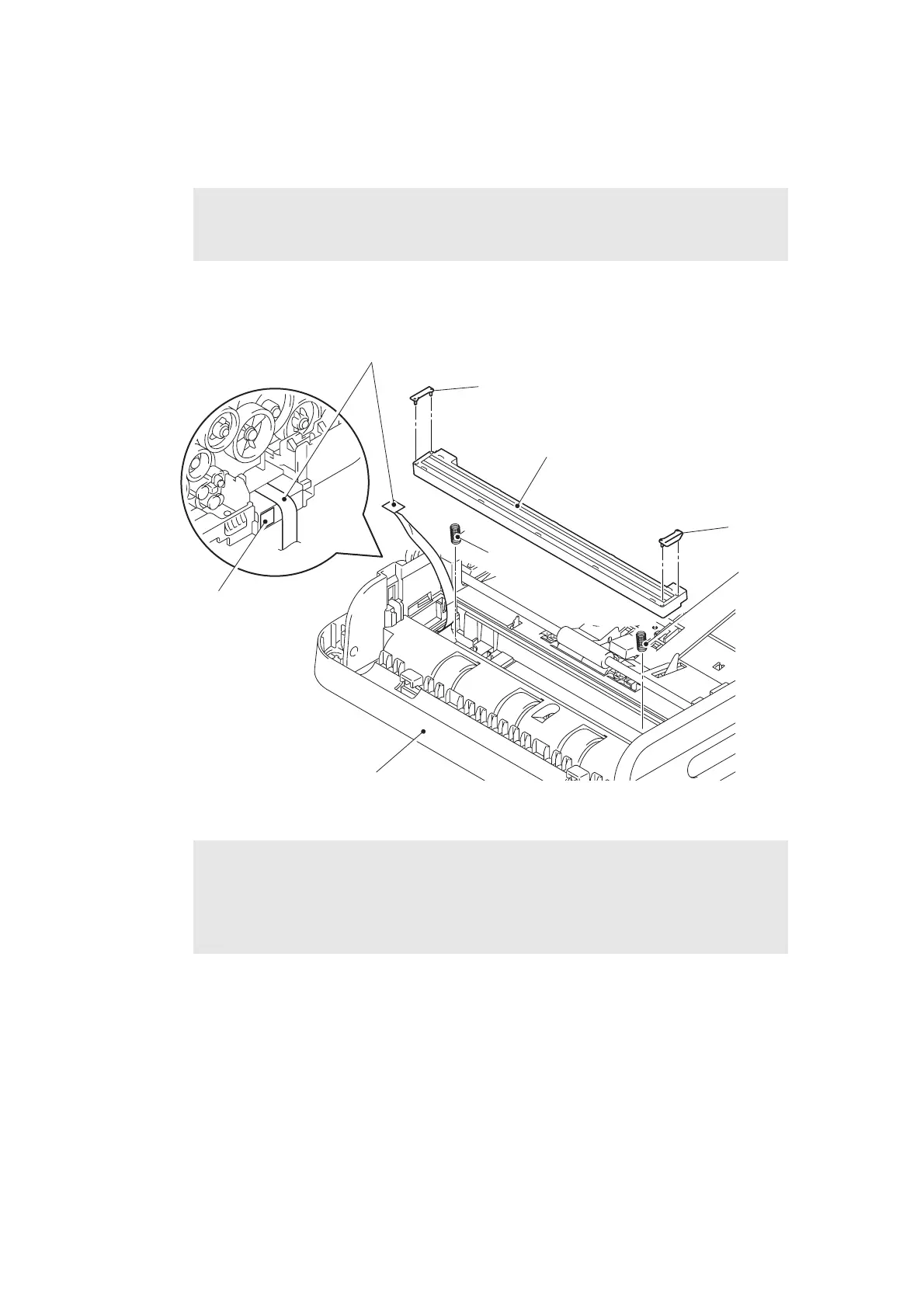

Fig. 3-45
Note:
• Once the double-sided tape is peeled from the second side CIS flat cable, replace
the tape with new tape.
Assembling Note:
• Once the second side CIS flat cable is removed, it cannot be secured with the
securing fixtures unless the lower ADF chute is removed. Refer to the Assembling
Note in "9.9.12 Drive frame ASSY / Document feed roller ASSY 1" to attach the
second side CIS flat cable.
Second side CIS unit
CIS spacer
CIS spring
CIS spring
CIS spacer
Second side CIS flat cable
Double-sided tape
ADF unit

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
