Brother DCP-8157DN

7-7
Confidential
2.3 Laser unit

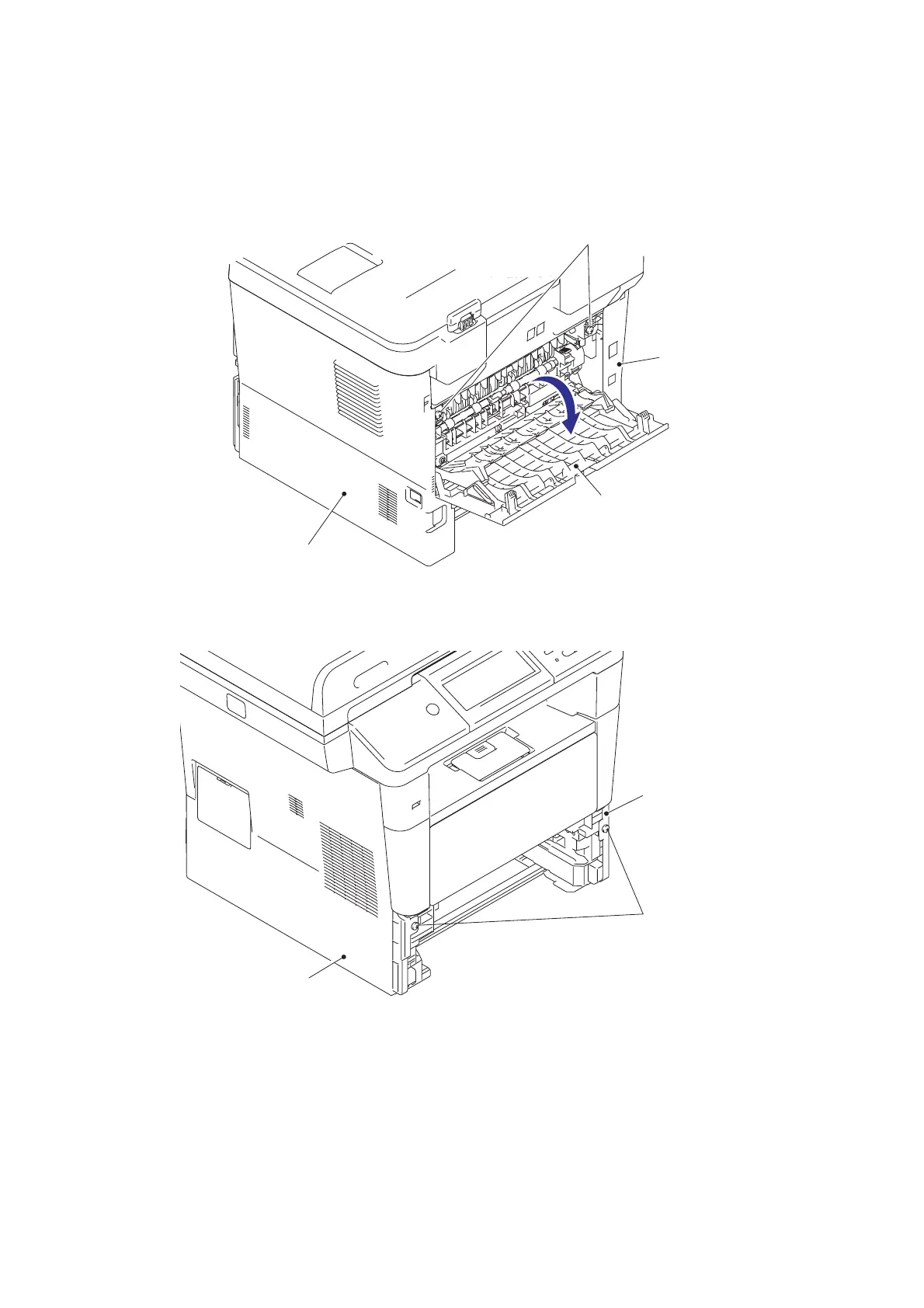

(1) Open the back cover.
(2) Remove the two taptite bind B M4x12 screws from the back side of the side cover L and
the side cover R ASSY.
Fig. 7-9
(3) Remove the two taptite bind B M4x12 screws from the front side of the side cover L and
the side cover R ASSY.
Fig. 7-10
Back cover
Taptite bind B M4x12
Side cover L
Side cover R ASSY
Side cover R ASSY
Taptite bind B M4x12
Side cover L
