Brother DCP-8157DN User Manual

3-108
Confidential
9.42 MP roller holder ASSY / MP separation pad ASSY / MP separation pad spring
(1) Open the MP roller cover. Release the hook on the MP holder bushing, and slide the MP
holder bushing in the direction of arrow 1 to remove it from the machine.
(2) Slide the MP roller holder ASSY in the direction of arrow 2a to remove it from the MP
separation roller shaft. Then push the MP lift arm in the direction of arrow 2b to remove
the MP roller holder ASSY from the machine.
(3) Push the MP lift arm in the direction of arrow 2b. Raise the MP separation pad ASSY to
the 50-degree position, and remove it from the machine in the direction of arrow 3.
(4) Bend the MP separation pad spring inward to remove it from the machine.

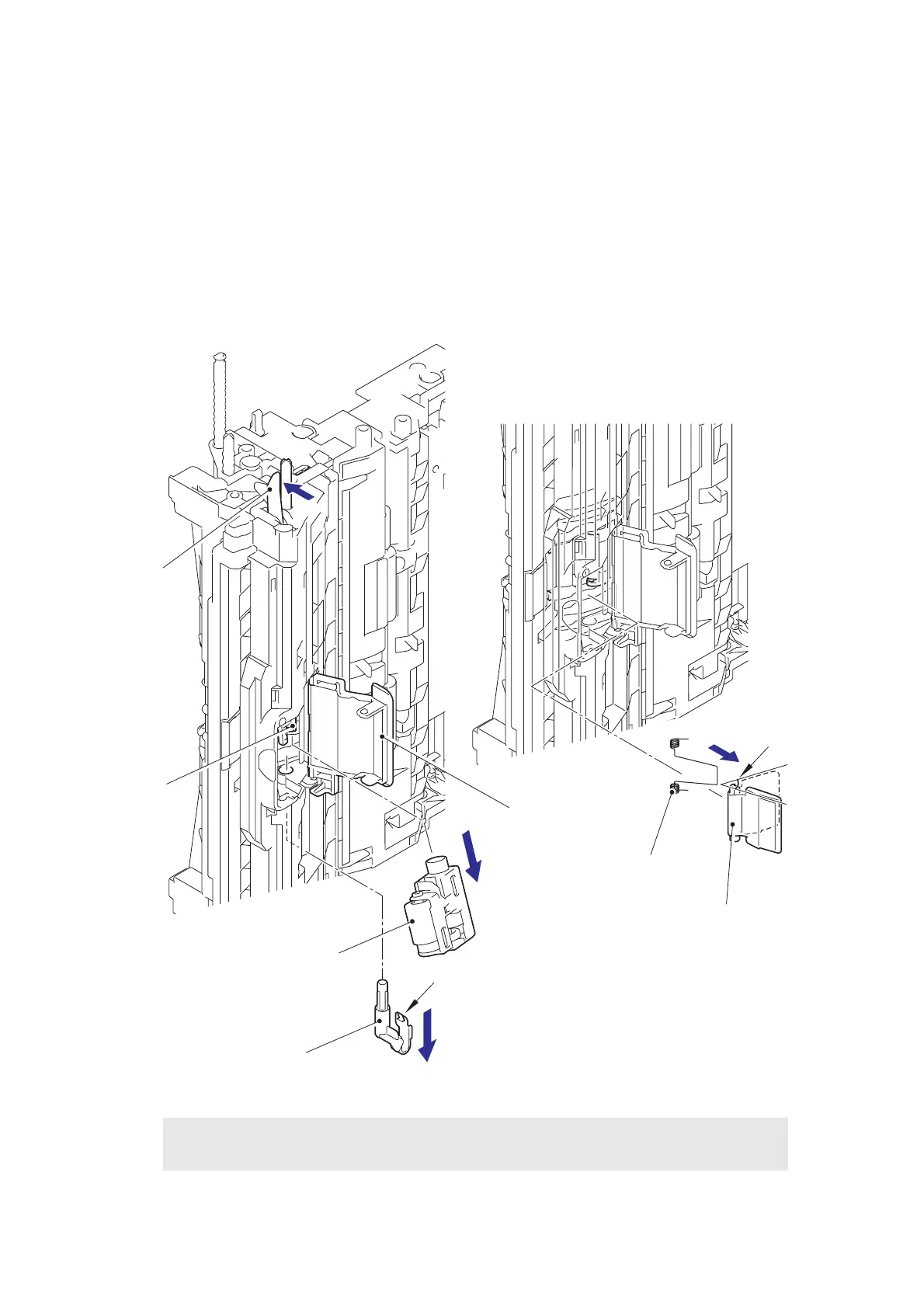

Fig. 3-137
Assembling Note:
• Attach the MP roller holder ASSY while pushing the MP separation pad ASSY.
MP separation pad ASSY
Hook
MP separation pad spring
MP holder bushing
MP roller holder ASSY
MP lift arm
MP roller cover
1
2b
2a
MP separation
roller shaft
3
50°
