3-36
Confidential
9.9.6 Gear cover
(1) Release the two hooks, and remove the gear cover from the ADF unit.

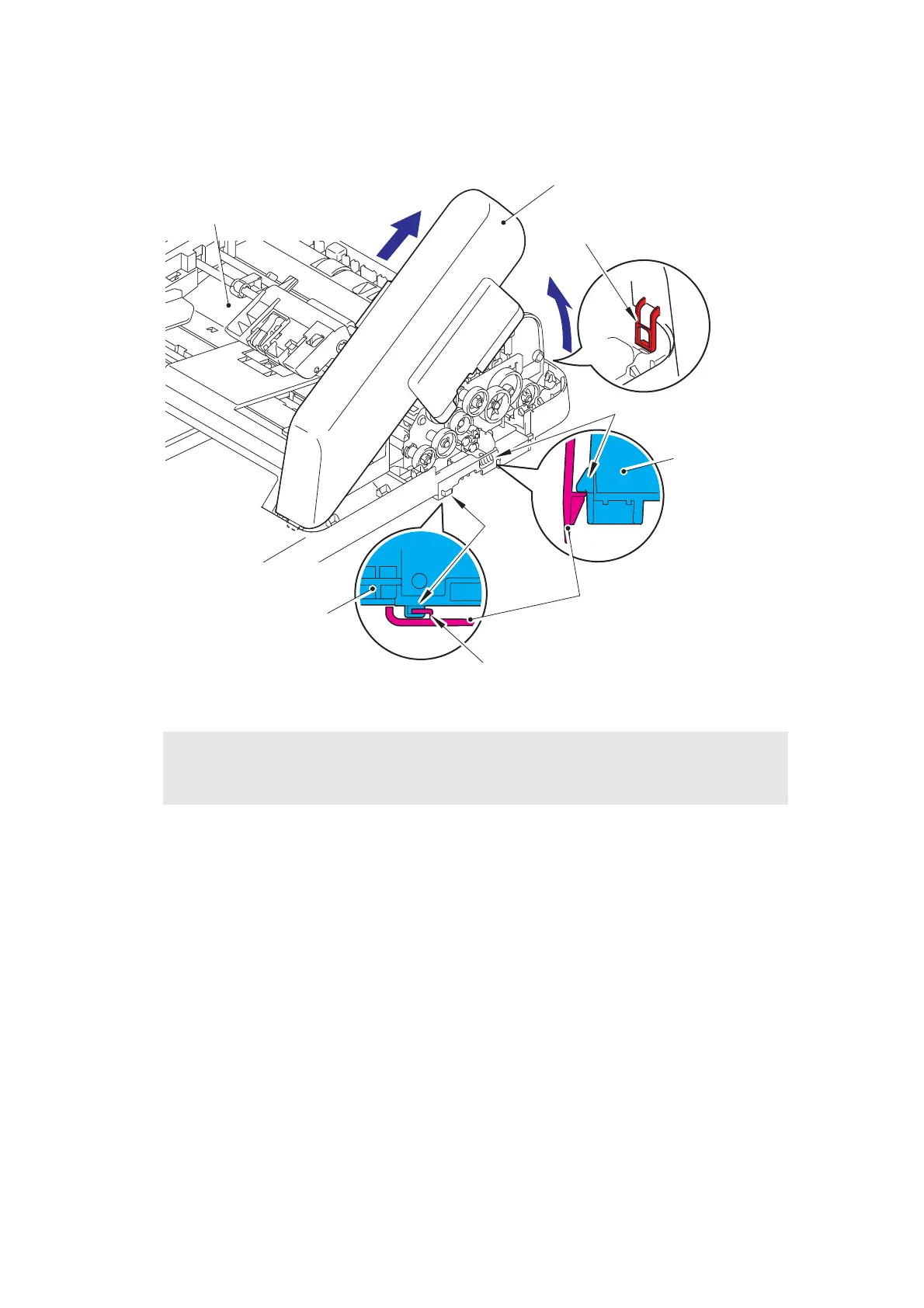

Fig. 3-35
Assembling Note:
• When attaching the gear cover, check that the rib on the gear cover is engaged with the
rib on the ADF unit.
ADF unit
Gear cover
Hook
Hook
Gear cover
Rib
(ADF unit)
ADF unit
ADF unit
Rib (Gear cover)
