9.6 Front cover ASSY

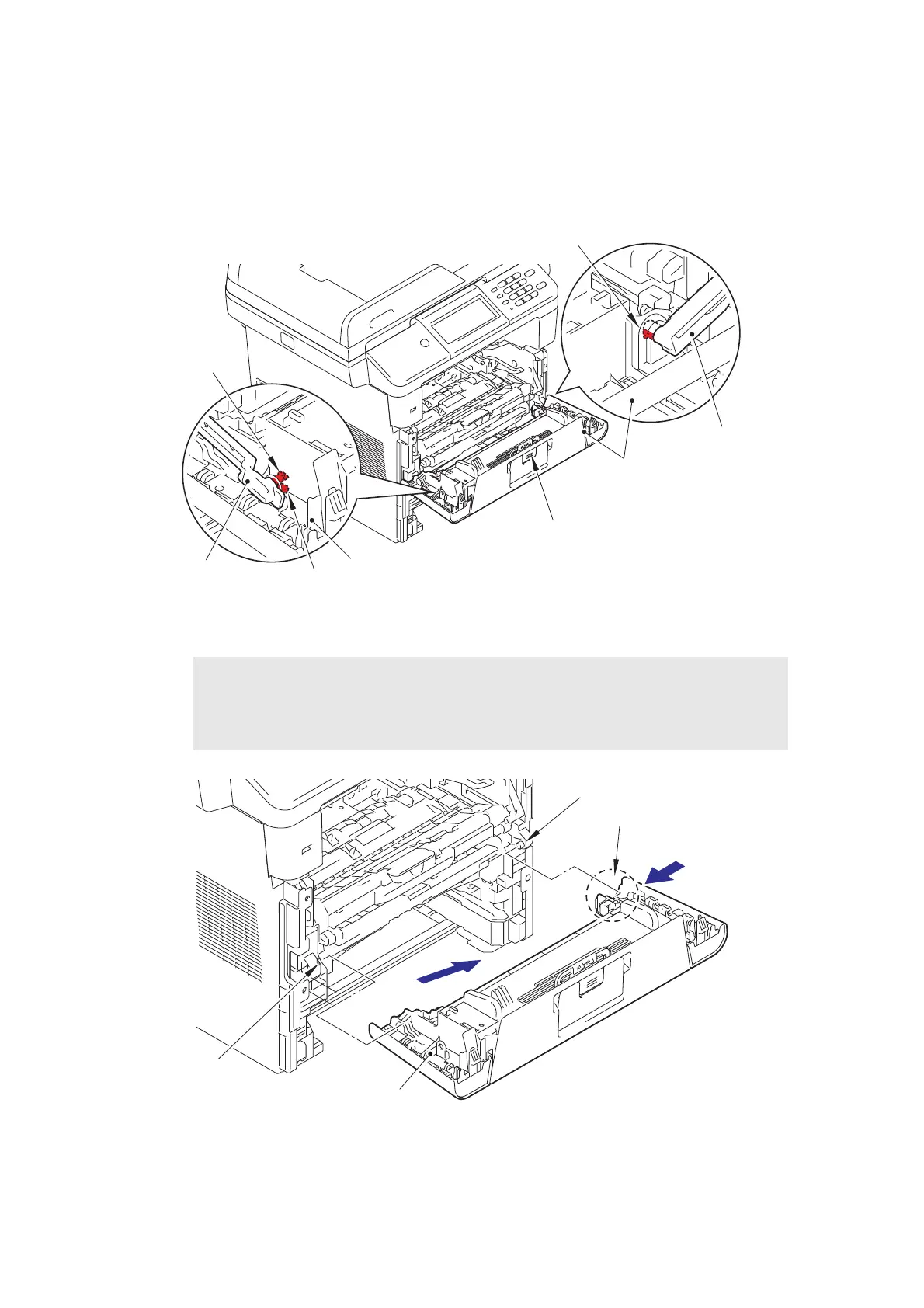

(1) Push the front cover release button, and open the front cover ASSY.
(2) Release the two hooks, and remove the develop joint link from the front cover ASSY.
(3) Release the hook, and remove the nip release link from the front cover ASSY.
Fig. 3-22
(4) Remove the two bosses, and remove the front cover ASSY from the machine.
Fig. 3-23
(5) Remove the two bosses, and remove the paper stopper from the front cover ASSY.
Note:
• When removing the front cover ASSY, push "A" on the front cover ASSY in the
direction of arrow 4a, and slide the front cover ASSY in the direction of arrow 4b to
remove it.
Nip release link
Develop joint link
Front cover ASSY
Front cover
release button
Hook
Front cover ASSY
Hook
Hook
“A”
Boss
Boss
Front cover ASSY
4a
4b
