9.21 Toner LED PCB ASSY
(1) Remove the LV shield plate earth spring from the LV shield plate and the machine.
(2) Remove the taptite cup S M3x8 SR screw, and lift the under bar earth plate R from the
LV shield plate.
(3) Remove the taptite bind B M4x12 screw, and release the two hooks to remove the LV
shield plate from the machine.

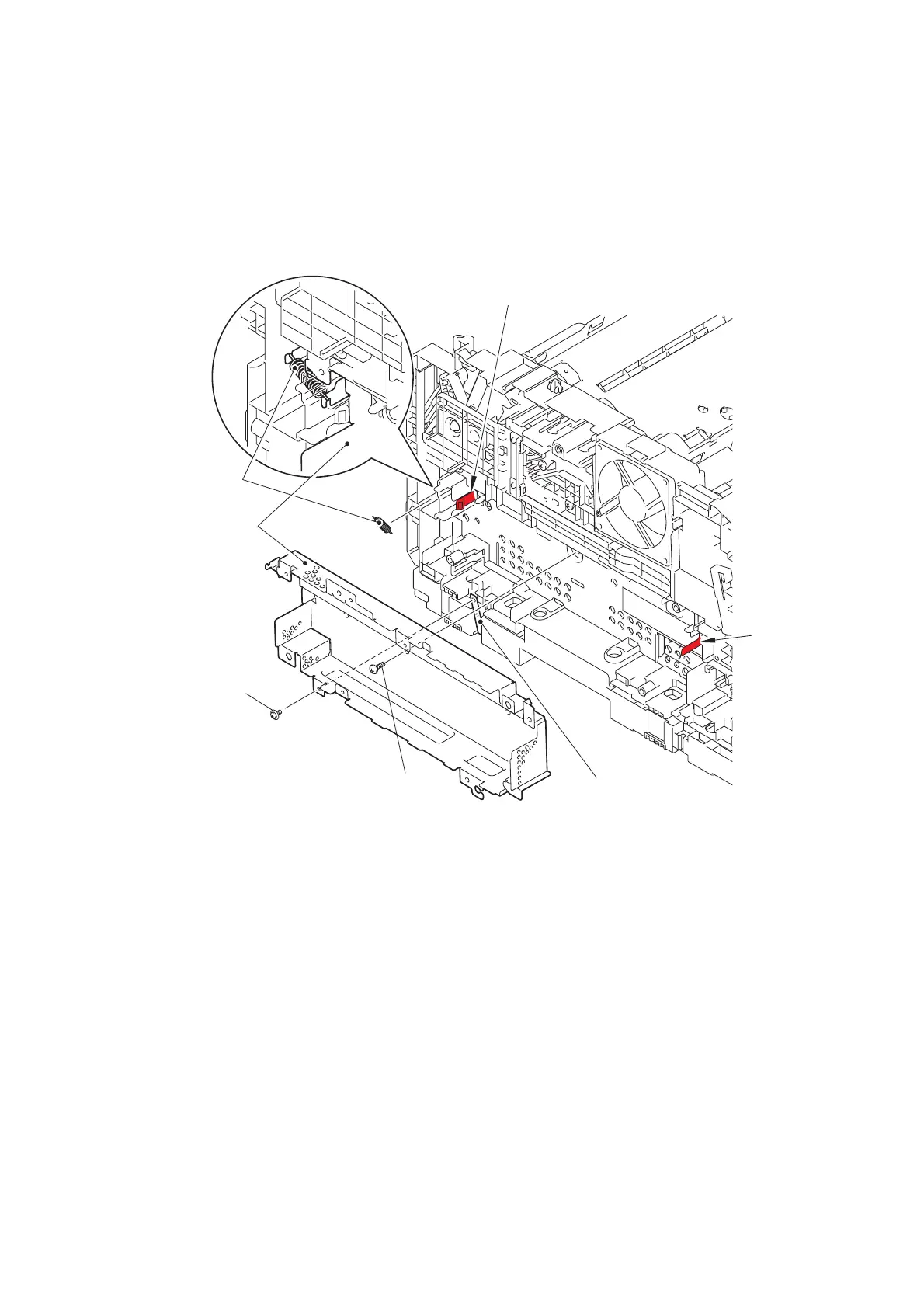

Fig. 3-109
LV shield plate
earth spring
Taptite cup S M3x8 SR
Taptite bind B
M4x12
Hook
Hook
Under bar
earth plate R
LV shield plate
