3-81
Confidential
(4) Remove the taptite bind B M4x12 screw, and release the hook to open the back side of
the hold cover 1. Then remove the hold cover 1 from the machine in the direction of the
arrow.
(5) Release the toner LED harness from the securing fixtures.
(6) Remove the taptite pan B M3x8 screw, and pull out "A" on the pinch earth spring from
the toner LED PCB ASSY. Release the two hooks, disconnect the main fan harness from
the toner LED PCB ASSY while lifting the toner LED PCB ASSY, and remove the toner
LED PCB ASSY from the machine.
(7) Remove the pinch earth spring from the machine.

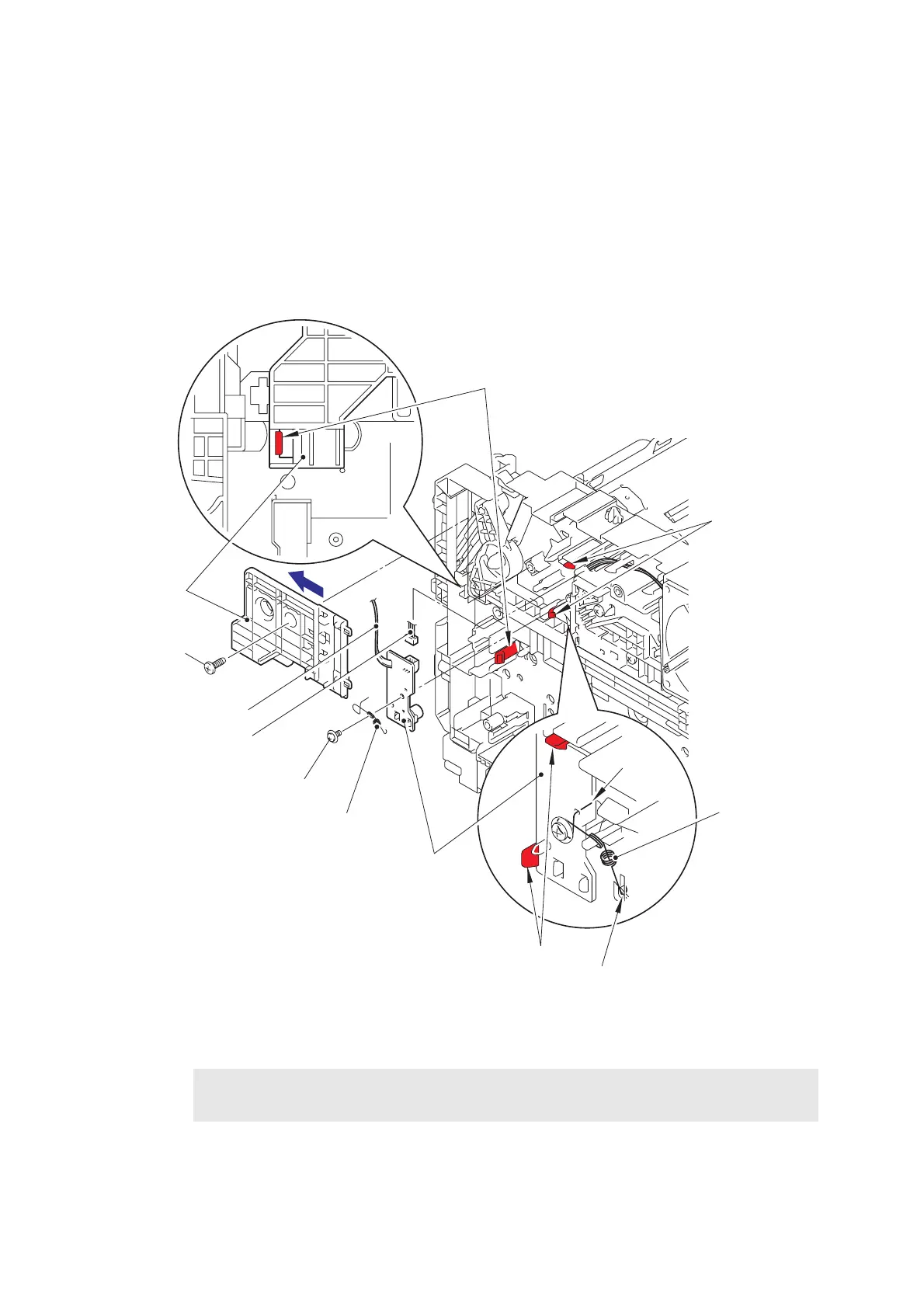

Fig. 3-110
Harness routing: Refer to “ 1.Main PCB ASSY ” and “ 5.Toner LED PCB ASSY/Main fan ”.
Assembling Note:
• Engage "B" on the pinch earth spring with the spring on the machine.
“A”
Hold
cover 1
Taptite bind B
M4x12
Taptite pan B M3x8
Pinch earth spring
Toner LED PCB ASSY
Hook
Hooks
Pinch earth
spring
“B”
Main fan harness
Toner LED harness
Hooks

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
