Brother DCP-8157DN User Manual

3-102
Confidential
9.38 LT connector (T1)
(1) Remove the three taptite bind B M4x12 screws, and remove the bottom frame L from the
main frame L ASSY. Then pull out the LT harness from the main frame L ASSY.
(2) Release the two hooks to remove the LT connector (T1) from the bottom frame L.

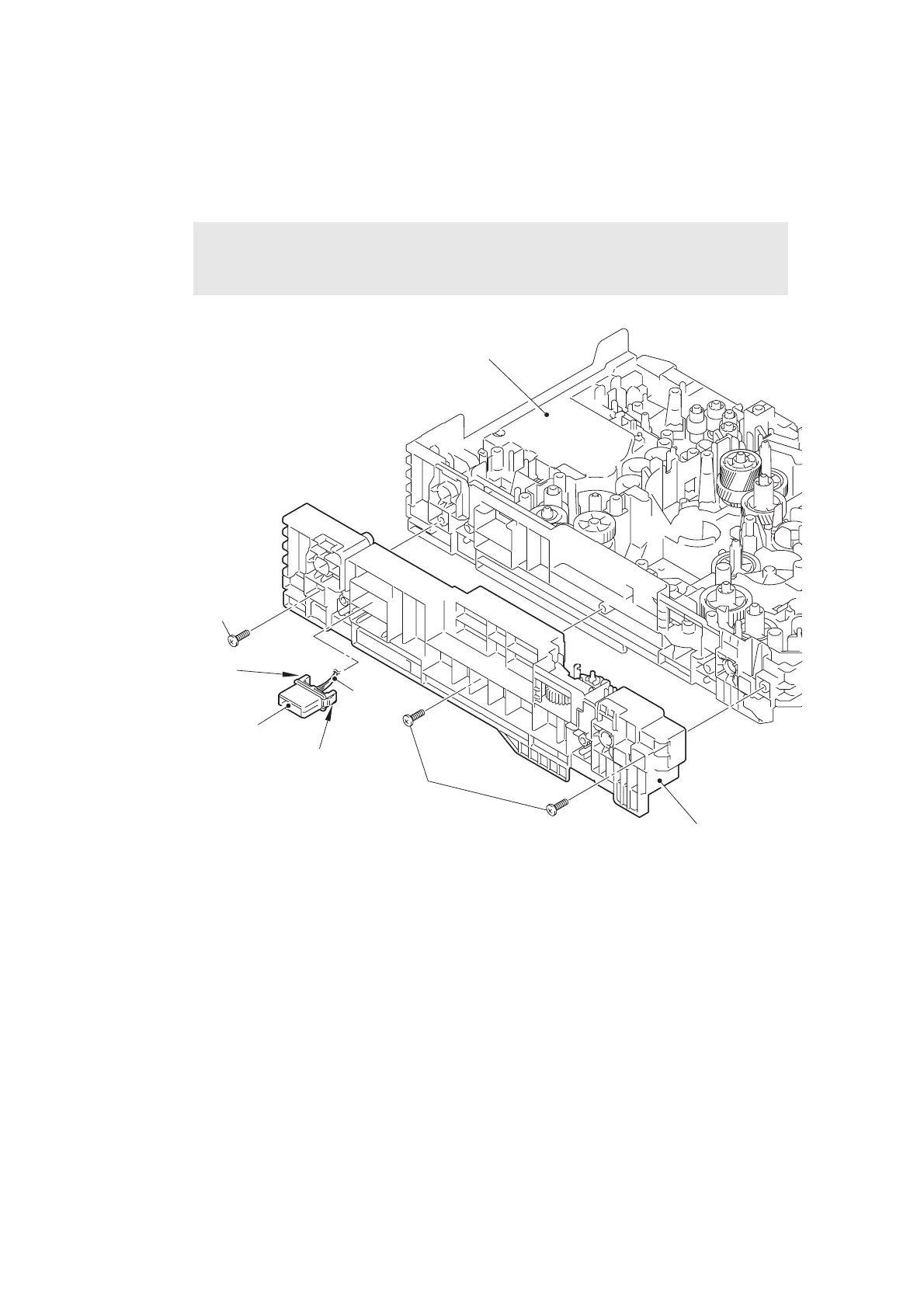

Fig. 3-131
Note:
• When the bottom frame L is not used in the machine, remove the LT connector
(T1) from the main frame L ASSY.
Bottom frame L
Main frame L ASSY
Taptite bind B M4x12
LT harness
Taptite bind B M4x12
Hook
Hook
LT connector (T1)
