9.5 MP cover ASSY
(1) Open the MP cover ASSY.
(2) Remove the two hooks on the MP paper guide ASSY from the two bosses on the front
cover ASSY.
(3) Remove the two bosses on the MP cover ASSY, and remove the MP cover ASSY from
the front cover ASSY.

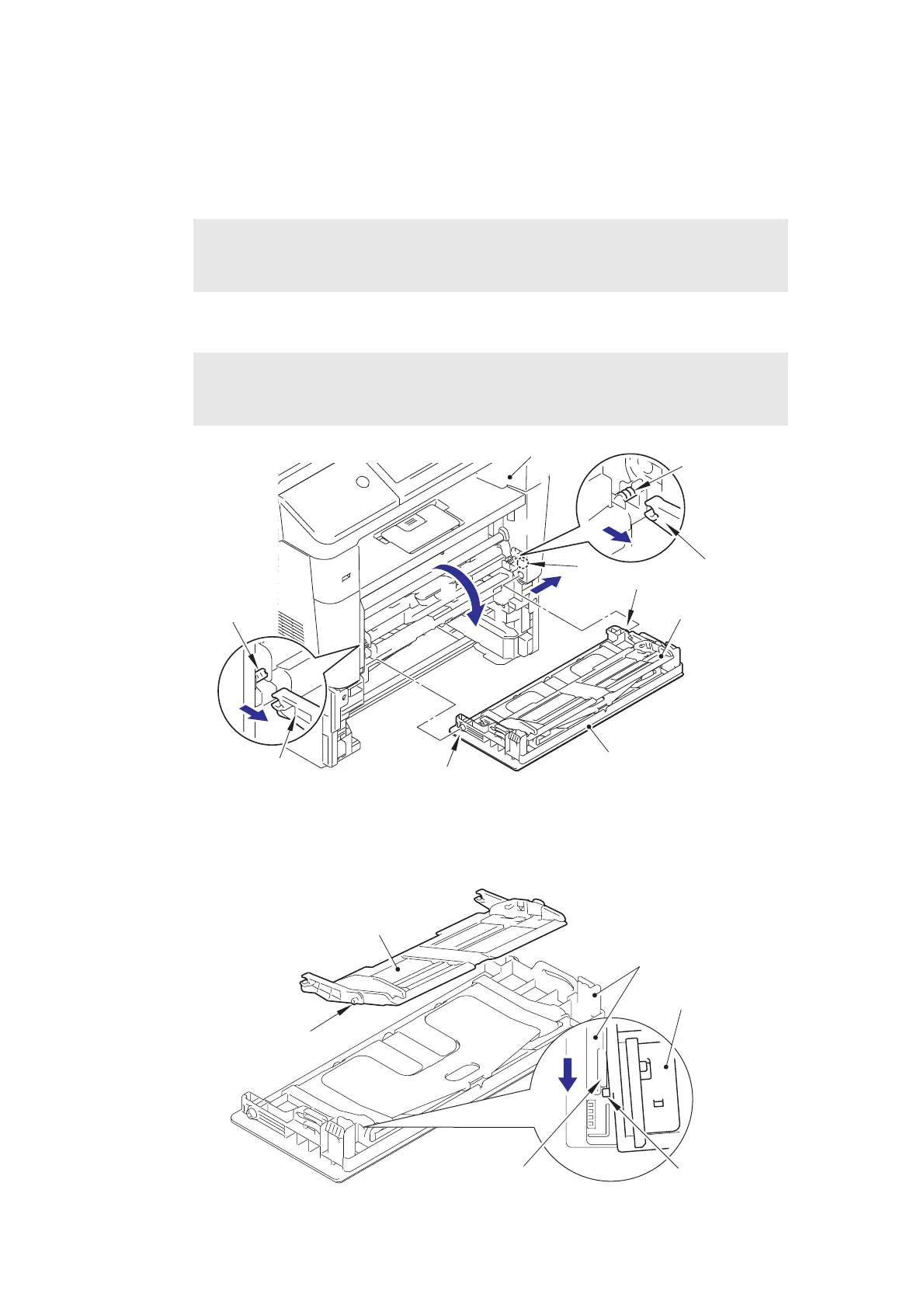

Fig. 3-20
(4) Slide the left side of the MP paper guide ASSY in the direction of arrow 4, remove boss
B from the guide on the MP cover ASSY, and then remove the MP paper guide ASSY
from the MP cover ASSY.
Fig. 3-21
Note:
• When removing the MP paper guide ASSY from the bosses on the front cover
ASSY, pull it out strongly in the direction of arrow 2.
Note:
• Remove the MP cover ASSY while pushing "A" on the front cover ASSY in the
direction of arrow 3.
Front cover ASSY
Boss
MP paper guide ASSY
MP cover ASSY
Hook
(MP paper guide ASSY)
Boss
“A”
Boss
Boss
1
2
2
3
Hook
(MP paper guide ASSY)
MP cover ASSY
MP paper guide ASSY
MP paper guide ASSY
Boss B
Guide
Boss B
4
