Brother DCP-8157DN User Manual

3-123
Confidential
10.6 T2 relay PCB ASSY

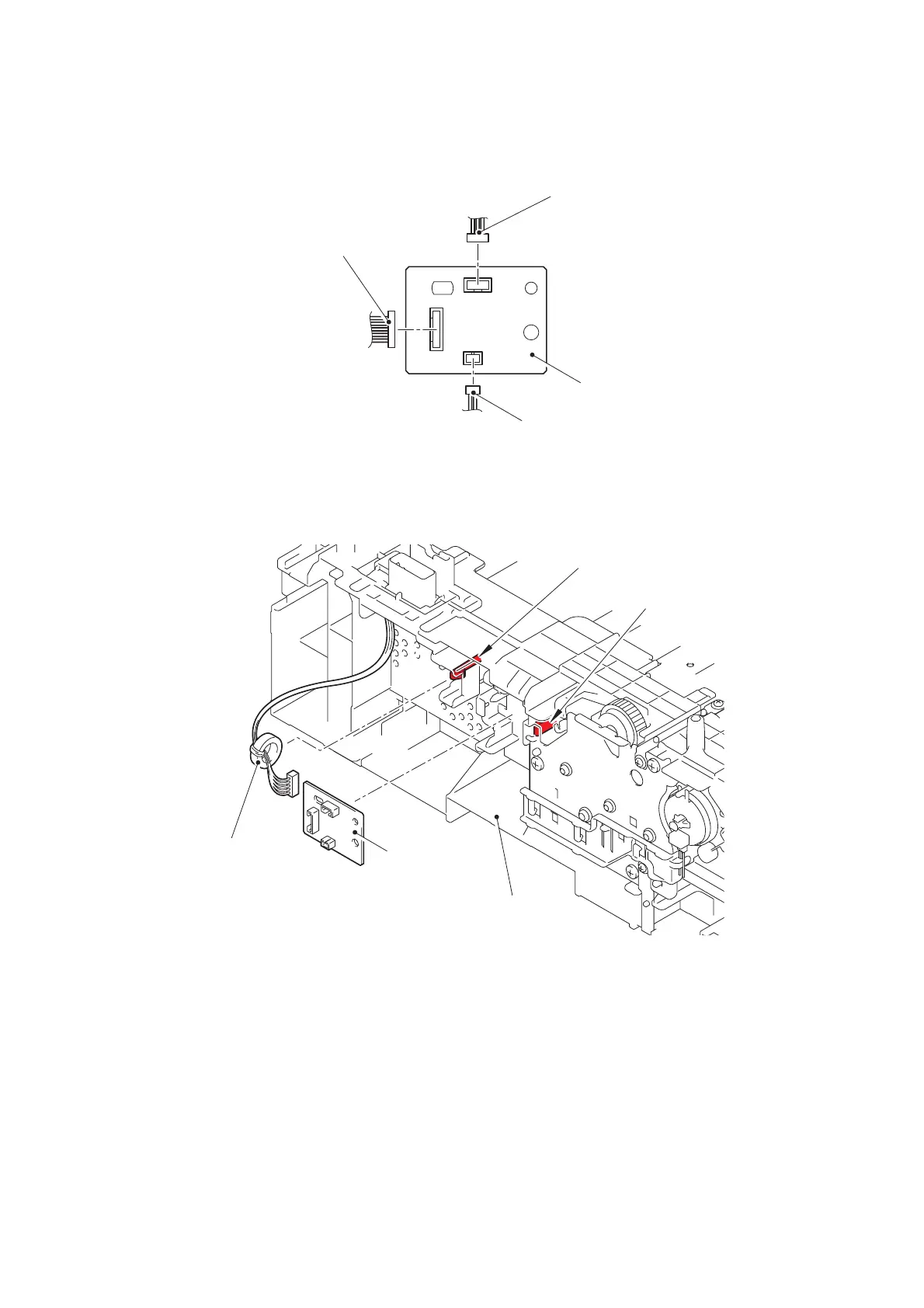

(1) Disconnect all harnesses from the T2 relay PCB ASSY.
Fig. 3-154
(2) Release the hook to remove the core of the LT connector ASSY (T2) from the LT unit.
(3) Release the hook to remove the T2 relay PCB ASSY from the LT unit.
Fig. 3-155
T2 paper feed sensor harness
T2 relay PCB ASSY
T2 clutch harness
LT harness
LT unit
Core
T2 relay
PCB ASSY
Hook
Hook
