9.9.1 Hinge ASSY L
(1) Reverse the ADF unit.
(2) Remove the three taptite cup S M3x12 screws to remove the hinge ASSY L from the
ADF unit.

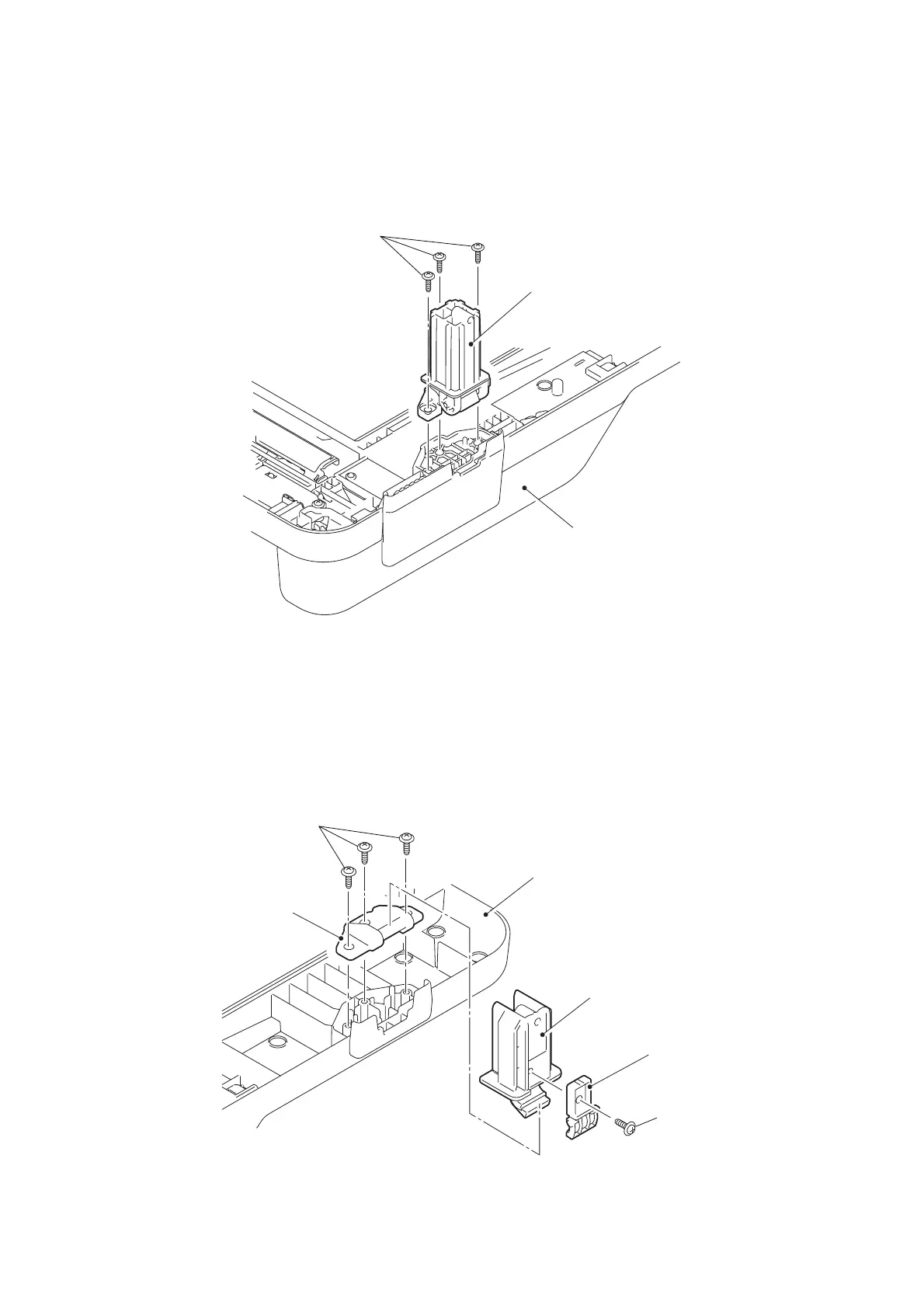

Fig. 3-30
9.9.2 Hinge R
(1) Remove the taptite cup B M3x10 screw to remove the hinge R and the hinge support R
from the ADF unit.
(2) Remove the three taptite cup B M3x10 screws to remove the hinge arm R from the ADF
unit.
Fig. 3-31
Taptite cup S M3x12
Hinge ASSY L
ADF unit
Taptite cup B M3x10
ADF unit
Hinge R
Hinge support R
Taptite cup B M3x10
Hinge arm R
