Brother DCP-8157DN User Manual

3-32
Confidential

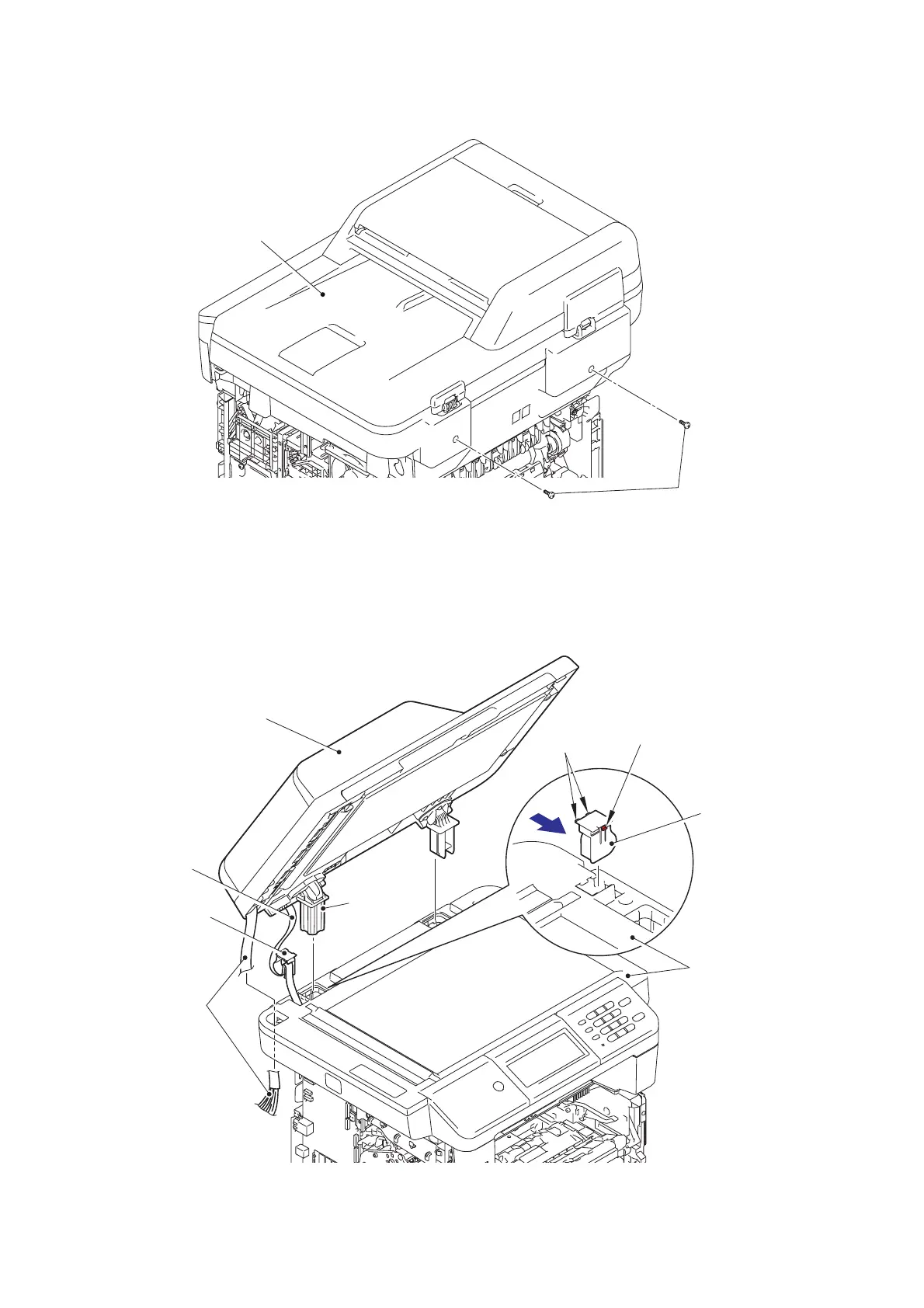

(4) Remove the two taptite bind B M4x12 screws on the back of the ADF unit.
Fig. 3-28
(5) Open the ADF unit. While lifting the hinge ASSY L slightly, release the hook on the FFC
holder ASSY, and slide it in the direction of the arrow to release the two ribs. Then
remove the FFC holder ASSY from the document scanner unit.
(6) Remove the ADF unit from the document scanner unit, and pull out the ADF motor
harness and the second side CIS flat cable from the document scanner unit.
Fig. 3-29
Taptite bind B M4x12
ADF unit
Document
scanner unit
ADF unit
Hinge
ASSY L
FFC holder ASSY
Hook
Ribs
ADF motor
harness
Second side
CIS flat cable
FFC holder ASSY

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
