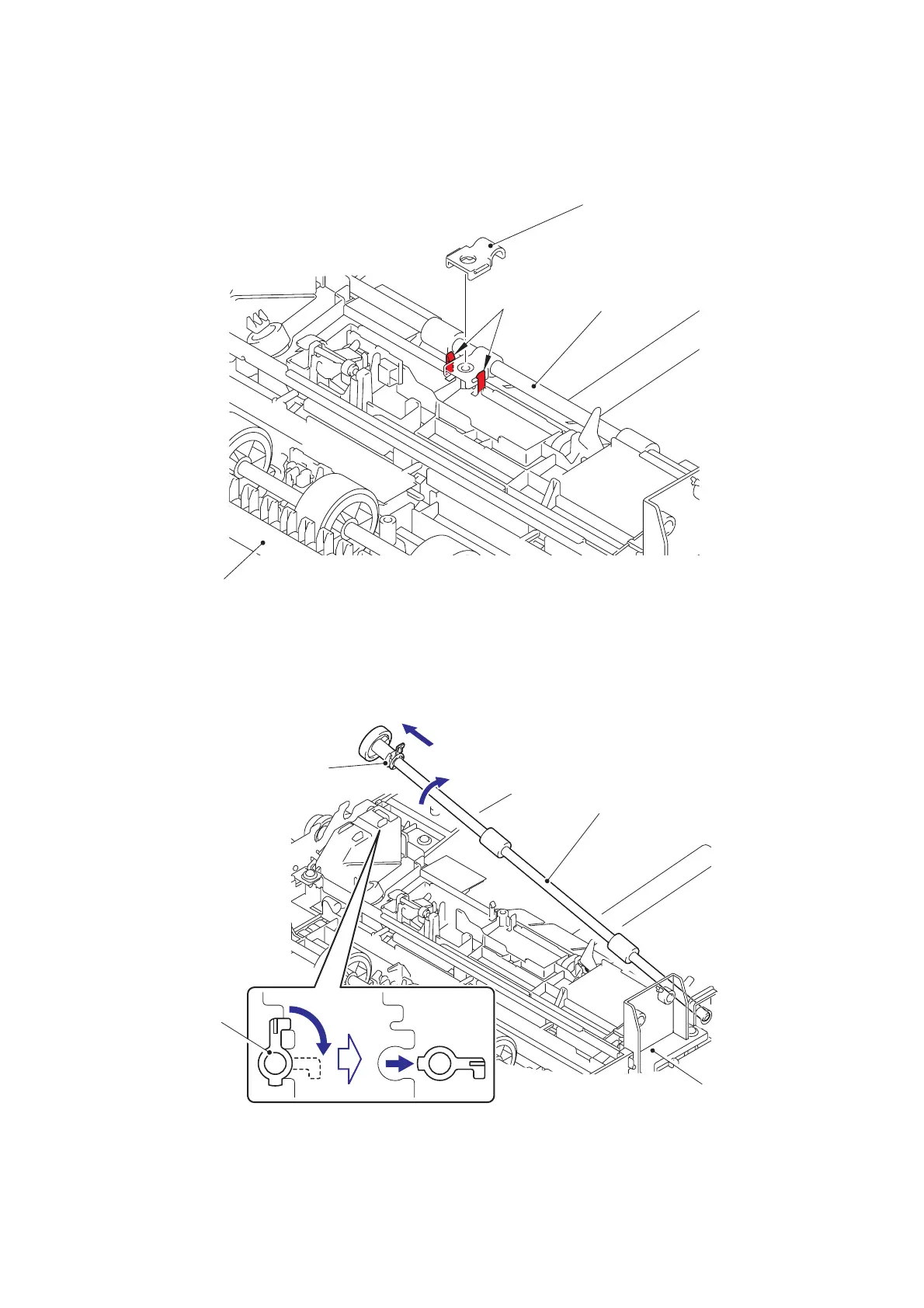

9.9.12 Drive frame ASSY / Document feed roller ASSY 1
(1) Release the two hooks, and remove the document ejection shaft from the lower ADF
chute.
Fig. 3-52
(2) Turn the conductive bushing in the direction of the arrow to release the lock.
(3) Remove the other end of the conductive bushing to remove the document ejection roller
ASSY 1 from the lower ADF chute.
Fig. 3-53
Lower ADF chute
Document ejection roller ASSY 1
Hooks
Document ejection shaft
Document ejection roller ASSY 1
Conductive
bushing
Lower ADF chute
Conductive bushing
